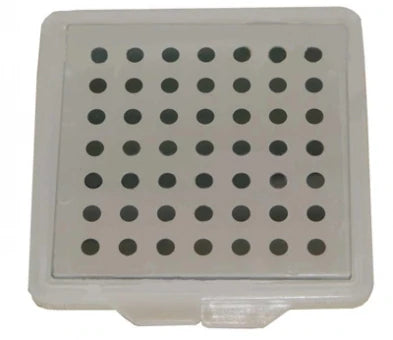

Representative photo of this series
Lens accessories
Dot calibration targets, 76 x 76 mm (LS-LXR-0331)
Model LS-LXR-0331
- Size76*76
- TypeCalibration targets
- SubstrateSoda Lime Glass
- Thickness2.3mm
$59.00
Ships in 2-3 weeks
0.21 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The outline standard dimensions of Dot Calibration Targets is 38, 50, 76, 100, 150, 200mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LXR-0331 |
|---|---|
| Substrate | Soda Lime Glass |
| Overall accuracy | ±1 μm |
| Process | Direct Laser Writing |
| Effecitve Area(mm) | 60.5 |
| Array | 61*61 |
| Dot Dia.(mm) | 0.5 |
| Dot Spacing(mm) | 1.0 |
| Precision | ±0.001 mm (tested by the China Institute of Metrology) |
Mechanical
| Thickness | 2.3mm |
|---|---|

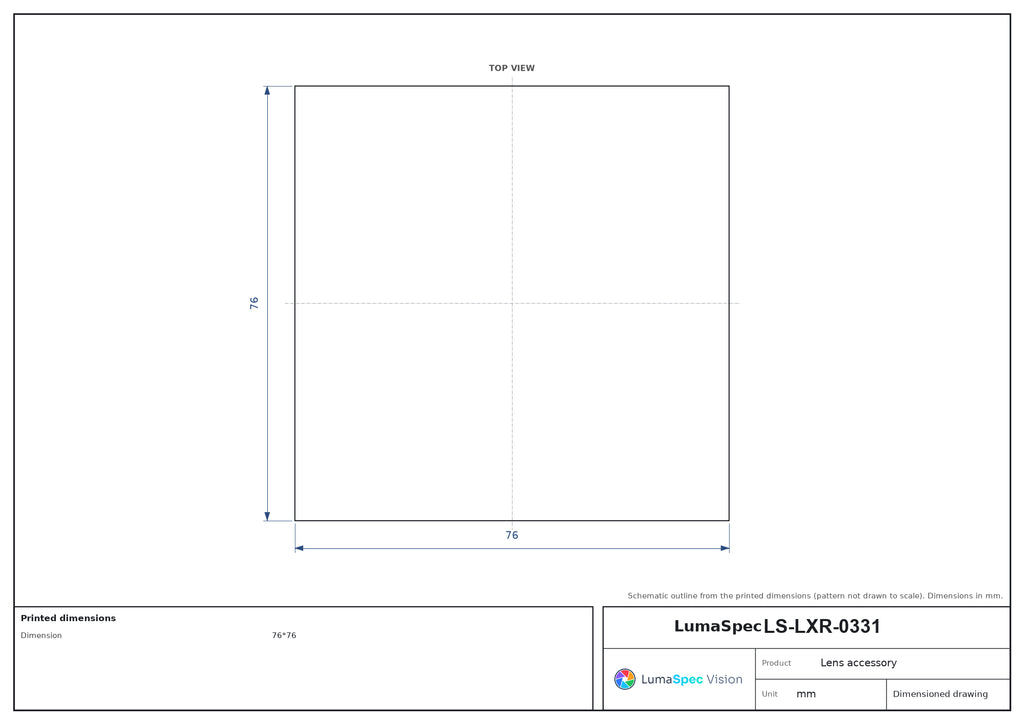

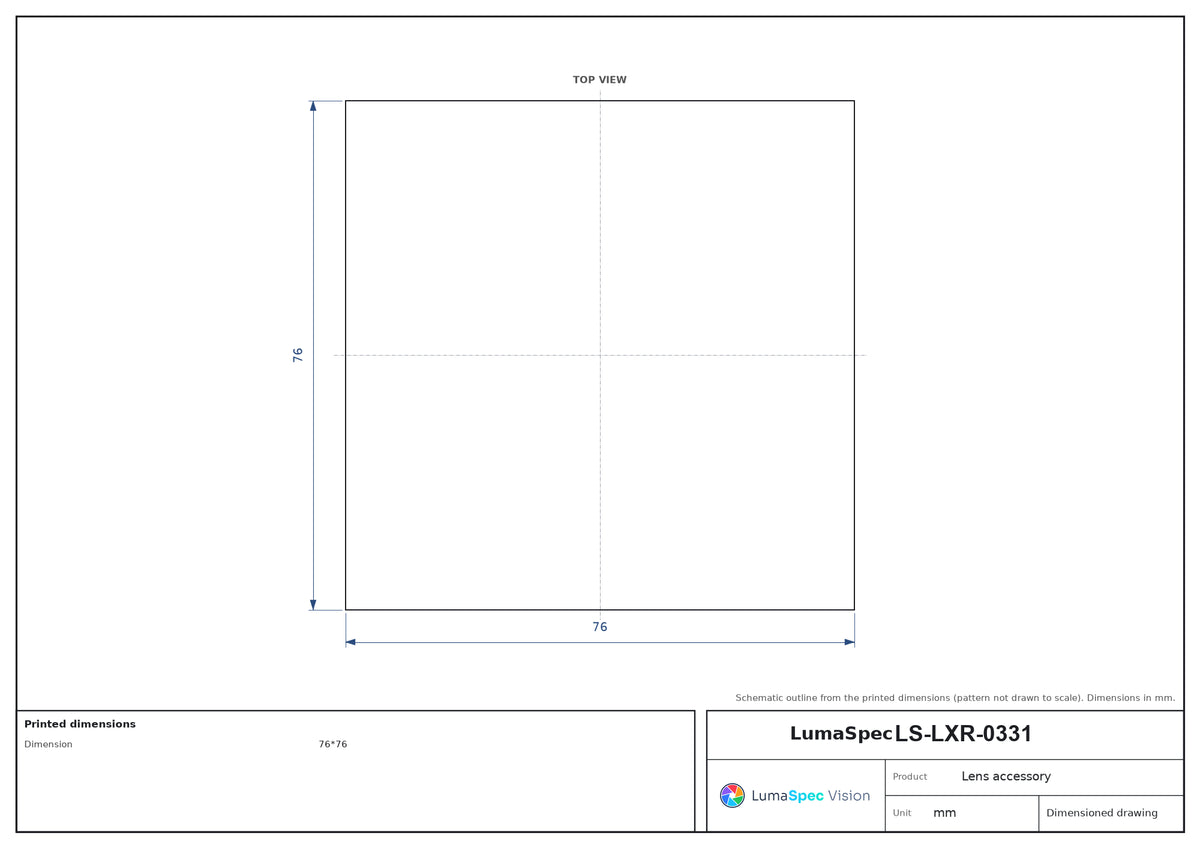

| Dimension (mm) | 76*76 |
| Shipping weight | 0.21 kg |
Other models in the Dot calibration targets (LS-LXR-S21) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LXR-0328 | 30*30 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0329 | 38*38 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0330 | 50*50 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0332 | 100*100 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0333 | 100*100 · Calibration targets | $59.00 | Ships in 2-3 weeks | View |
