Coaxial module for line lights, length 470 mm (LS-LXR-0327)
Model LS-LXR-0327
- Length470 mm
- TypeCoaxial modules
- Overall length A395 mm
- Viewing window B440 x 15 mm
$59.00
Ships in 2-3 weeks
0.21 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial module listed with the CULPG coaxial line lights: the LS-LSC-S34 series is built from an LPG line light with an added coaxial module. Each NCU module matches one CULPG length.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LXR-0327 |
|---|---|
| Viewing window B (mm) | 440 x 15 |
| Matching line light | LS-LSC-0322-R/B/W |
| Camera window (mm) | 440 x 15 |
Optics
| Object-side window (mm) | 445 x 17 |
|---|

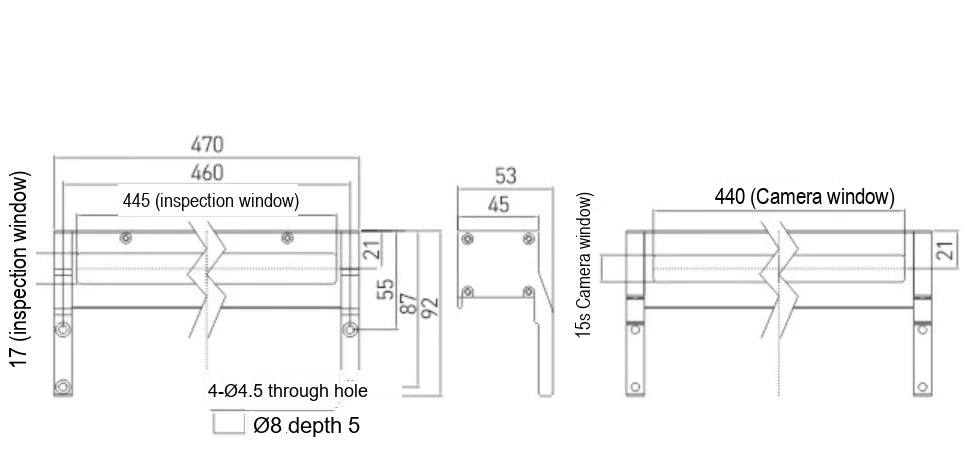

Mechanical
| Overall length A (mm) | 395 |
|---|---|
| Length (mm) | 470 |
| Width (mm) | 53 |
| Height (mm) | 92 |
| Mounting | 4 x dia. 4.5 through holes, counterbore dia. 8 depth 5 |
| Shipping weight | 0.21 kg |
Other models in the Coaxial module for line lights (LS-LXR-S20) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LXR-0325 | 170 mm · Coaxial modules | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0326 | 320 mm · Coaxial modules | $59.00 | Ships in 2-3 weeks | View |
