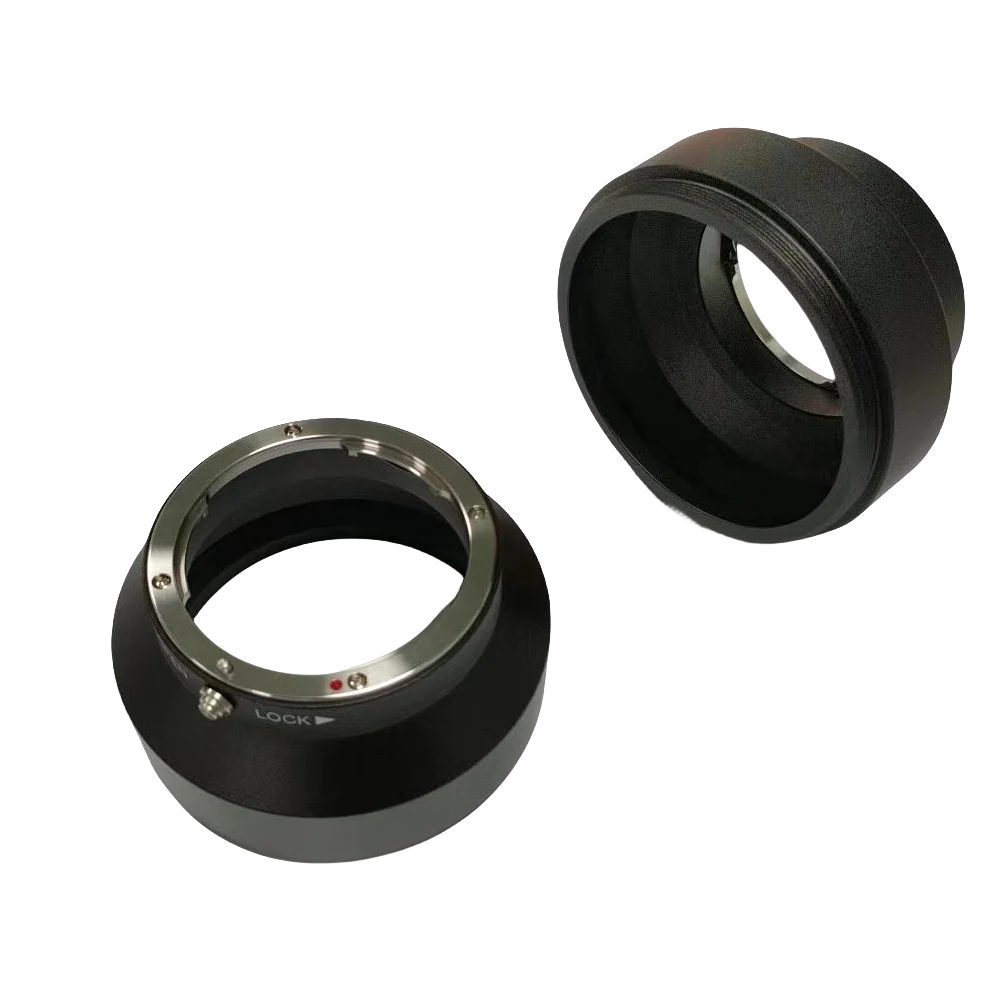

M72x0.75 to F-mount adapter, Adapter ring thickness 36.4 mm, For M72 cameras with 10.12 mm back focal distance (LS-LXR-0304)
  • M72x0.75 to F-mount adapter, Adapter ring thickness 36.4 mm, For M72 cameras with 10.12 mm back focal distance (LS-LXR-0304)

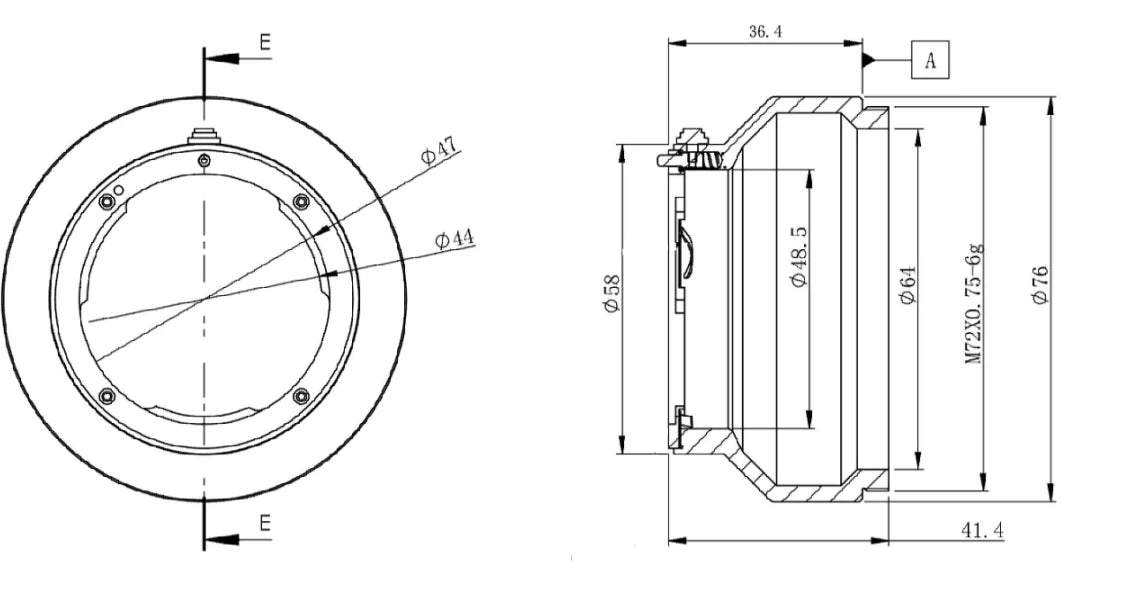

  • LS-LXR-0304 dimensions (mm)

Lens accessories

M72x0.75 to F-mount adapter, Adapter ring thickness 36.4 mm, For M72 cameras with 10.12 mm back focal distance (LS-LXR-0304)

Model LS-LXR-0304

  • TypeAdapters & rings
  • Lens mountF-mount, flange back length 46.5 mm
  • Thickness36.4 mm
$39.00

Ships in 2-3 weeks

0.18 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

M72x0.75 to F-mount adapter, Adapter ring thickness 36.4 mm, For M72 cameras with 10.12 mm back focal distance (LS-LXR-0304)LS-LXR-0304

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

M72x0.75 to F-mount adapter, Adapter ring thickness 36.4 mm, For M72 cameras with 10.12 mm back focal distance. Interface adapter for more flexible pairing

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LXR-0304

Environment and compliance

CertificationRoHS2.0

Mechanical

Camera mountM72 × 0.75, Flange focal distance 10.1 mm
Lens mountF-mount, flange back length 46.5 mm
Thickness36.4 mm
Shipping weight (estimated)0.18 kg
Outer diameter (from drawing)Ø76 mm
Overall length incl. threads (from drawing)41.4 mm
