Line scan lens, 100 mm, M59-mount (LS-LSL-0046)
Model LS-LSL-0046
- Focal length100 mm
- MountM59
- SensorLarge format
- Working distance47.3-49.7 mm
- ApertureF1.6
- Resolution16K (1μm)
$1,779.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line scan lenses (the list section heads 150 megapixel / 100 megapixel line scan lenses).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0046 |
|---|---|
| E.F.L | 100mm |
| F.NO | 1.6 |
Optics
| Image circle | dia. 82 |
|---|---|
| Distortion | <0.01% |
| Magnification @ W.D | 3.35x @ 49.7mm; 3.5x @ 48.4mm; 3.65x @ 47.3mm |
| Focal length (mm) | 100 |
| Working distance (mm) | 47.3-49.7 |
| Aperture | F1.6 |
Sensor and imaging
| Resolution | 16K (1μm) |
|---|---|
| Sensor format | dia. 82 image circle |

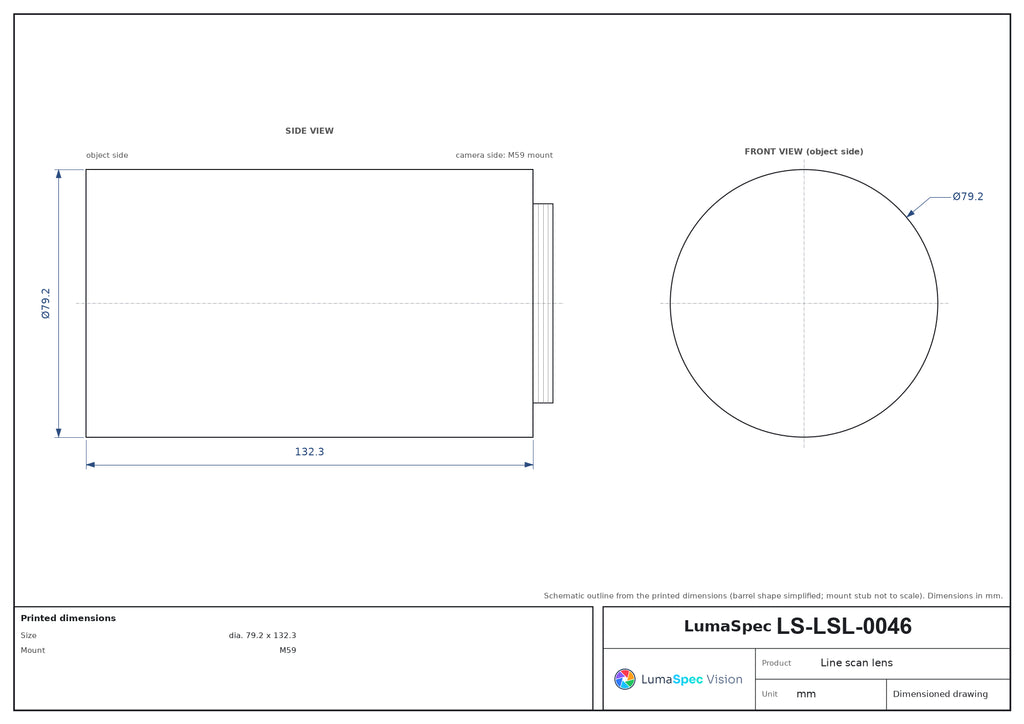

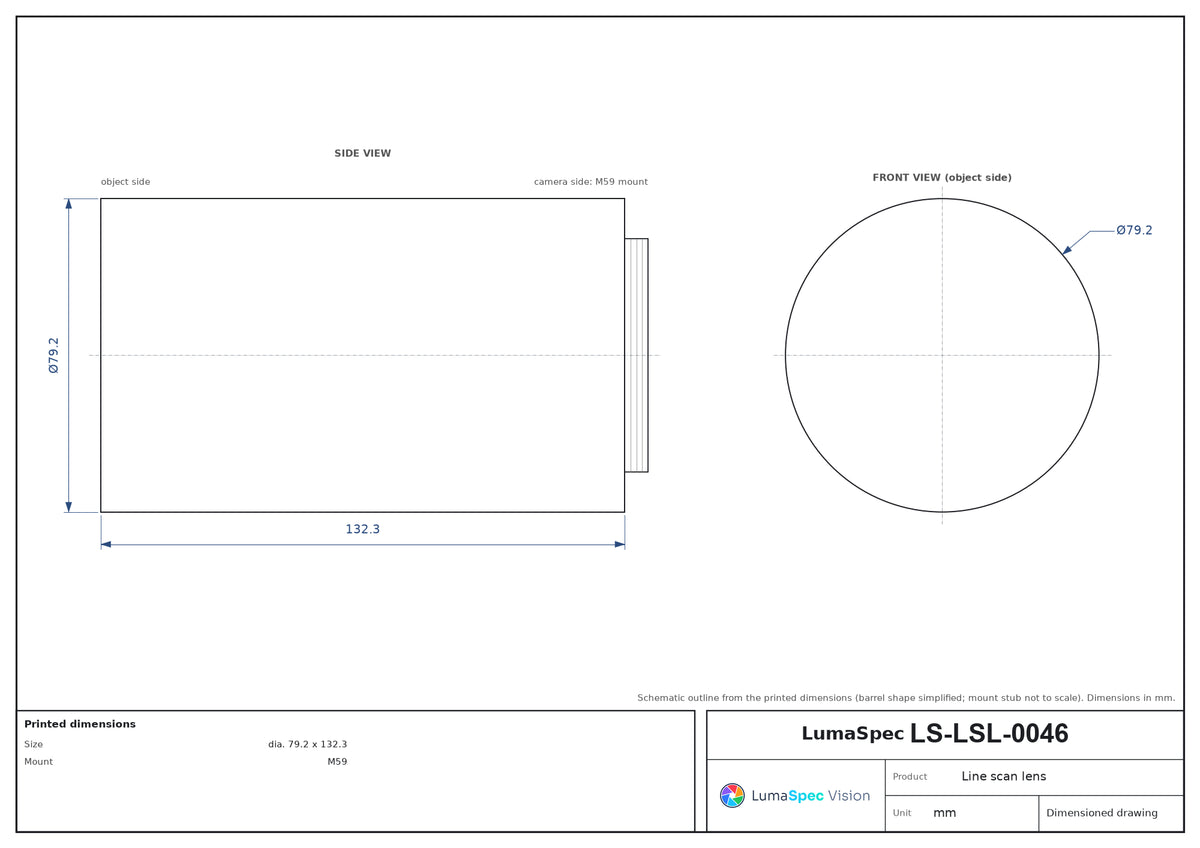

Mechanical
| Mount | M59 |
|---|---|
| Size (mm) | dia. 79.2 x 132.3 |
| Shipping weight | 0.94 kg |
Photo shows a representative model of this series; see the specifications for this model.
