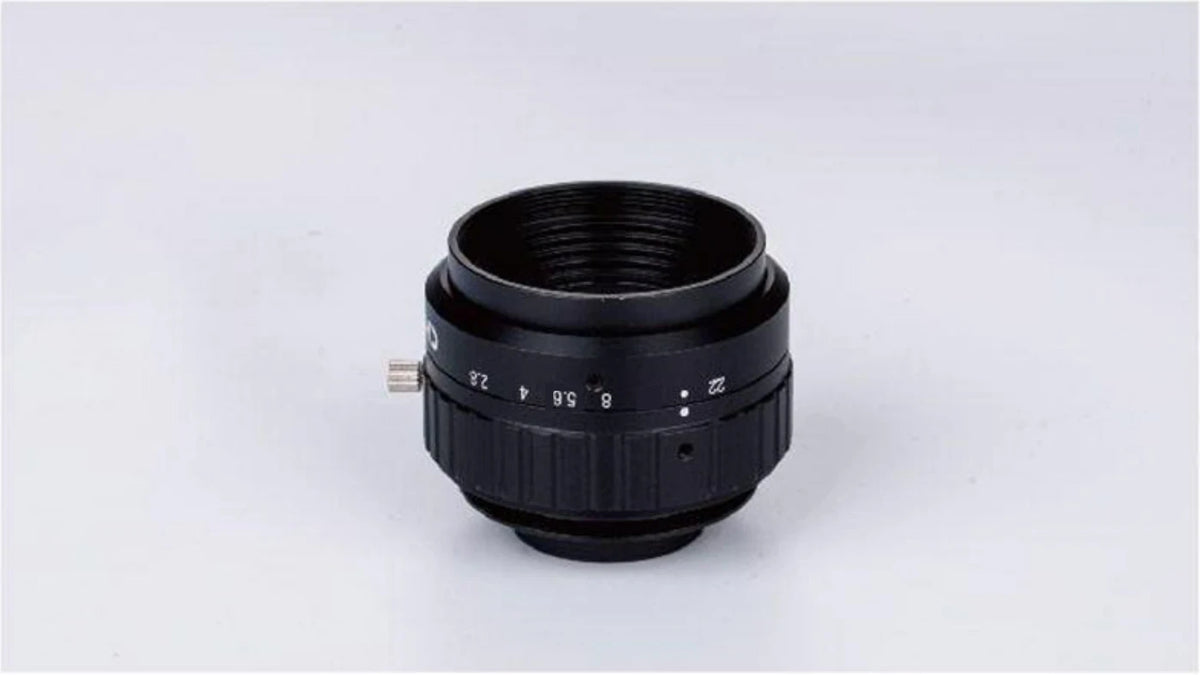

Representative photo of this series
Line scan lenses
4K line scan lens, 29 mm, V-Mount (LS-LSL-0033)
Model LS-LSL-0033
- Focal length29 mm
- MountV-mount
- SensorAPS-C
- Working distance299.7 mm
- ApertureF4.0-C
$1,469.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line scan lenses designed for compact line scan cameras, with standard EFL and magnification options from 0.02x-0.33x; V-mount as standard, adaptable to various camera mounts; applied to printing and packaging inspection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0033 |
|---|---|
| Line scan format | 4K 7µ |
| EFL | 29mm |
| F/NO | 4.0-C |
| Conjugate distance | 368 |
| Flange distance | 26 |
Optics
| Max image size | dia. 30 |
|---|---|
| Distortion | <0.01% |
| Standard magnification | 0.1X |
| Image size (dia.) | dia. 30 |
| Optical distortion | 0.1% |
| Working distance | 299.7 |
| Focal length (mm) | 29 |
| Aperture | F4.0-C |
Sensor and imaging
| Central resolution | 160lp/mm |
|---|---|
| Sensor format | dia. 30 mm image circle |
Mechanical
| Mount | V-Mount |
|---|---|
| Shipping weight | 0.94 kg |
Other models in the 4K line scan lens (LS-LSL-S05) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSL-0032 | 20 mm, M42×P1-mount | $1,429.00 | Ships in 2-3 weeks | View |
| LS-LSL-0034 | 35 mm, V-Mount | $1,489.00 | Ships in 2-3 weeks | View |
| LS-LSL-0035 | 40 mm, V-Mount | $1,509.00 | Ships in 2-3 weeks | View |
