16K 3.5µ line scan lens
  • 16K 3.5µ line scan lens

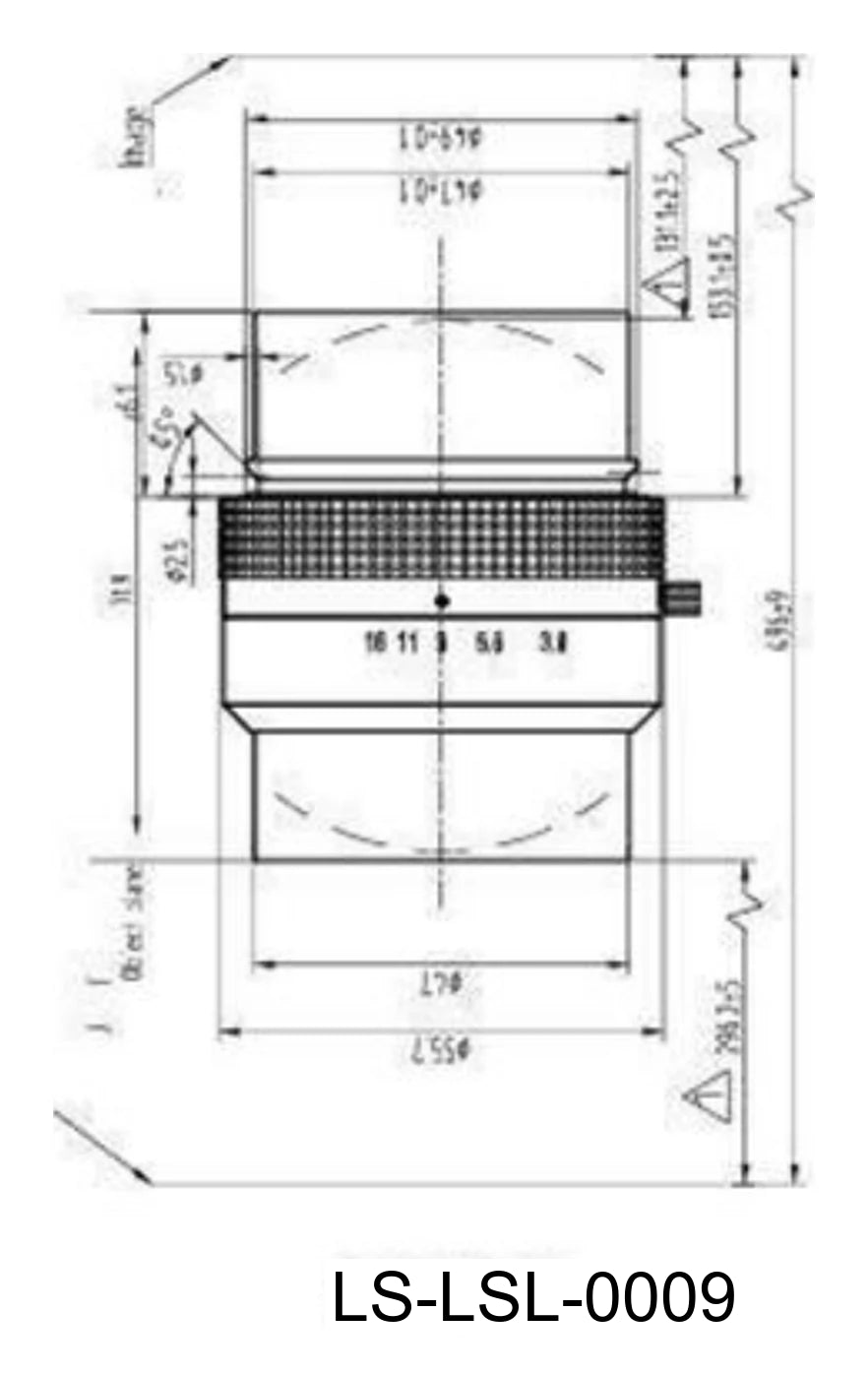

  • LS-LSL-0009 dimensions (mm)

Representative photo of this series

Line scan lenses

16K 3.5µ line scan lens, 116 mm, V-Mount, working distance 296.2 mm (LS-LSL-0009)

Model LS-LSL-0009

  • Focal length116mm
  • Magnification0.05X-1X
  • MountV-mount
  • SensorLarge format
  • Working distance296.2 mm
  • ApertureF3.8-16
$3,209.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

16K 3.5µ line scan lens, 116 mm, V-Mount, working distance 296.2 mm (LS-LSL-0009)LS-LSL-0009

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Line scan lenses specially designed for 16K 3.5 µm super-high-resolution line scan cameras; real lens resolution up to 160 lp/mm, max image circle up to 66 mm, compatible with 12K 5 µ cameras, optical distortion <1 pixel, big aperture F3.8.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0009
Line scan format16K 3.5µ
EFL116mm
F/NO3.8-16
Conjugate distance496
Flange distance153.3

Optics

Focal length116mm
Magnification range0.05X-1X
Distortion<0.005%
Standard magnification0.5X
Image size (dia.)dia. 66
Optical distortion0.0008%
Working distance296.2
Focal length (mm)116
ApertureF3.8-16

Sensor and imaging

Central resolution200lp/mm
Sensor formatdia. 66 mm image circle

Mechanical

MountV-Mount
Shipping weight0.94 kg

Other models in the 16K 3.5µ line scan lens (LS-LSL-S03) series

See all 10 models
ModelSize / key dataPriceAvailabilityLink
LS-LSL-0016 90 mm, V-Mount $3,099.00 Ships in 2-3 weeks View
LS-LSL-0017 95 mm, V-Mount $3,119.00 Ships in 2-3 weeks View
LS-LSL-0015 100 mm, V-Mount $3,149.00 Ships in 2-3 weeks View
LS-LSL-0012 114 mm, V-Mount $3,209.00 Ships in 2-3 weeks View
LS-LSL-0008 116 mm, V-Mount $3,209.00 Ships in 2-3 weeks View
LS-LSL-0013 116 mm, V-Mount $3,209.00 Ships in 2-3 weeks View
LS-LSL-0014 116 mm, V-Mount $3,209.00 Ships in 2-3 weeks View
LS-LSL-0010 116 mm, V-Mount $3,209.00 Ships in 2-3 weeks View
LS-LSL-0011 116 mm, V-Mount $3,209.00 Ships in 2-3 weeks View
