Tunnel line light source (TUG series)
  • Tunnel line light source (TUG series)

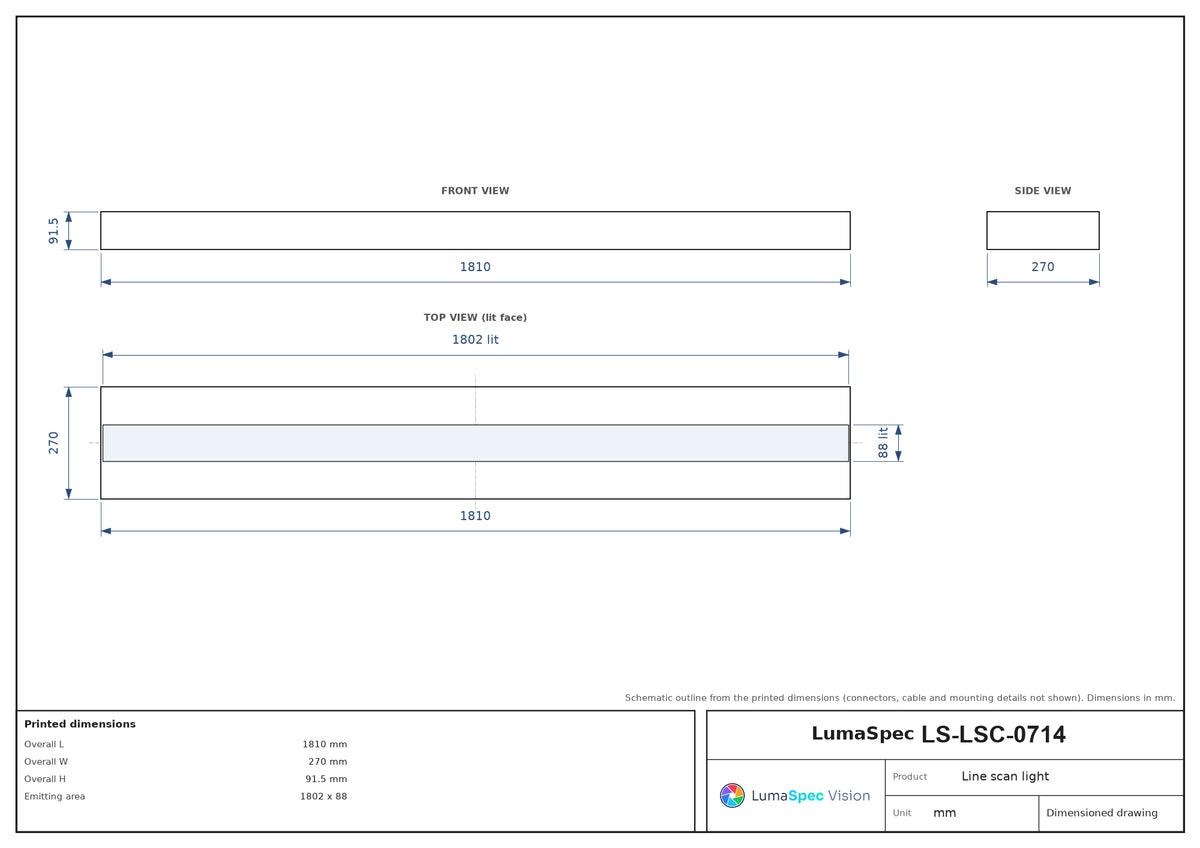

  • LS-TUG1810270 dimensions (mm)

Representative photo of this series

Line scan lights

1802 x 88 mm Tunnel line light source (LS-LSC-0714)

Model LS-LSC-0714

  • ColourRed, Blue, White
  • Emitting area1802 x 88 mm
  • Power1296 W
  • Connector24M-6J
$5,199.00

In stock - ships the same business day (3 available, order by 2 PM ET)

13.9 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1802 x 88 mm Tunnel line light source (LS-LSC-0714)LS-LSC-0714

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Tunnel line light for print-quality inspection; its illuminance is 3-4 times that of a traditional tunnel light, with an innovative, smaller structure that is easier to install, an innovative light path and heat dissipation design, more uniform illumination and longer life.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSC-0714
Optional accessoriesExtension cable
Service lifeAt 25 °C ambient, red works continuously for 60000 hours at 50% illumination, white for 30000 hours at 50% illumination, until 50% decrement
Quality assurance1 year from shipment, free maintenance or replacement for faults not caused by the user
CoolingFan (from photo)
Service life (red)60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Overall L (mm)1810
Overall W (mm)270
Overall H (mm)91.5
Fan quantity24
Observation window (mm)1776 x 10

Interfaces and I/O

Light cable quantity4
Extension cableAC24P6
Connector24M-6J/24J6TQ aviation plug
Cable length (mm)2 x 1500

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Wavelength IR850-940 nm
Wavelength UV365-405 nm
Emitting width (mm)88
Illuminance chart referenceLS-LSC-0700-W; uniformity LS-LSC-0700-W, FOV 50 x 50 mm at LWD 10/20/30 mm
Emitting area (mm)1802 x 88

Environment and compliance

Storage environmentTemperature -20-60 °C, humidity 20-85 %RH (non-condensing)
Using environment0-40 °C
Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-0164 (the selected controller should match the power of the light)
Power (W)1296
Recommended controllerLS-CTL-0167

Mechanical

Observation window width (mm)10
Shipping weight13.90 kg
