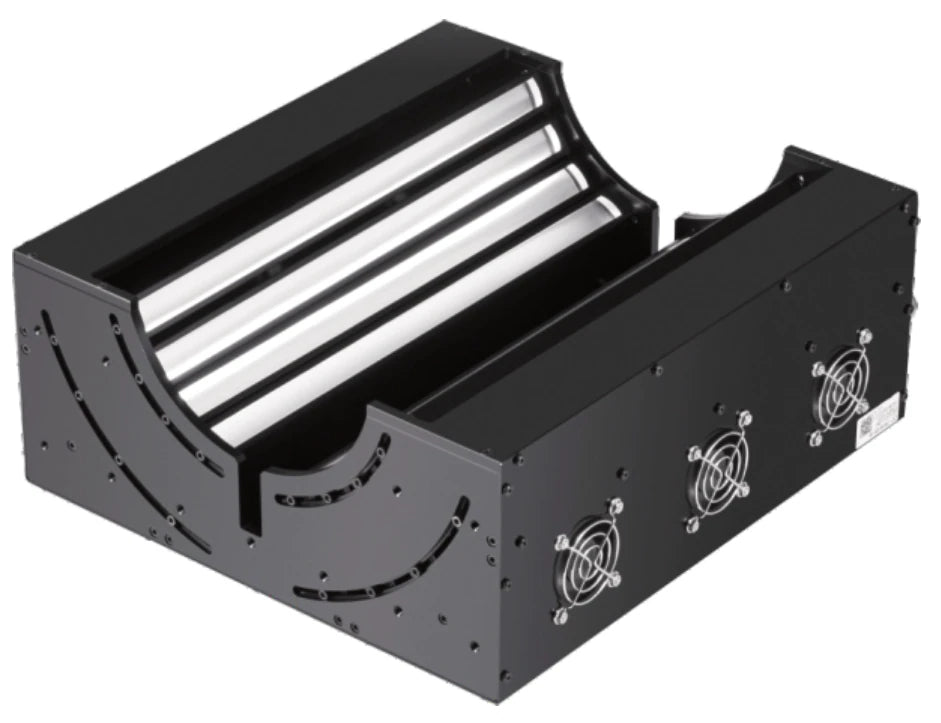

Representative photo of this series
Line scan lights
Multi-angle line light, LS-LSC-S66 series, power 142 W (LS-LSC-0679)
Model LS-LSC-0679
- ColourWhite
- Power142 W
- Optional accessoriesExtension cable
- Cable2 x 500 mm
$1,139.00
Ships in 2-3 weeks
3.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Special optical design with high brightness and anti-reflection; concentrated, highly uniform light. The brightness and number of line lights can be adjusted separately to actual needs.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0679 |
|---|---|
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Optional accessories | Extension cable |
| Version | MAS |
Interfaces and I/O
| Cable | 2 x 500 mm |
|---|
Light
| Colour temperature white | 6000-10000 K |
|---|
Environment and compliance
| Storage temperature | -20-60 °C |
|---|---|
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-0166 |
|---|---|
| Power (W) | 142 |
| Recommended controller | LS-CTL-0166 |
| Power (W, Chinese 2022 catalog) | 308 |
Mechanical

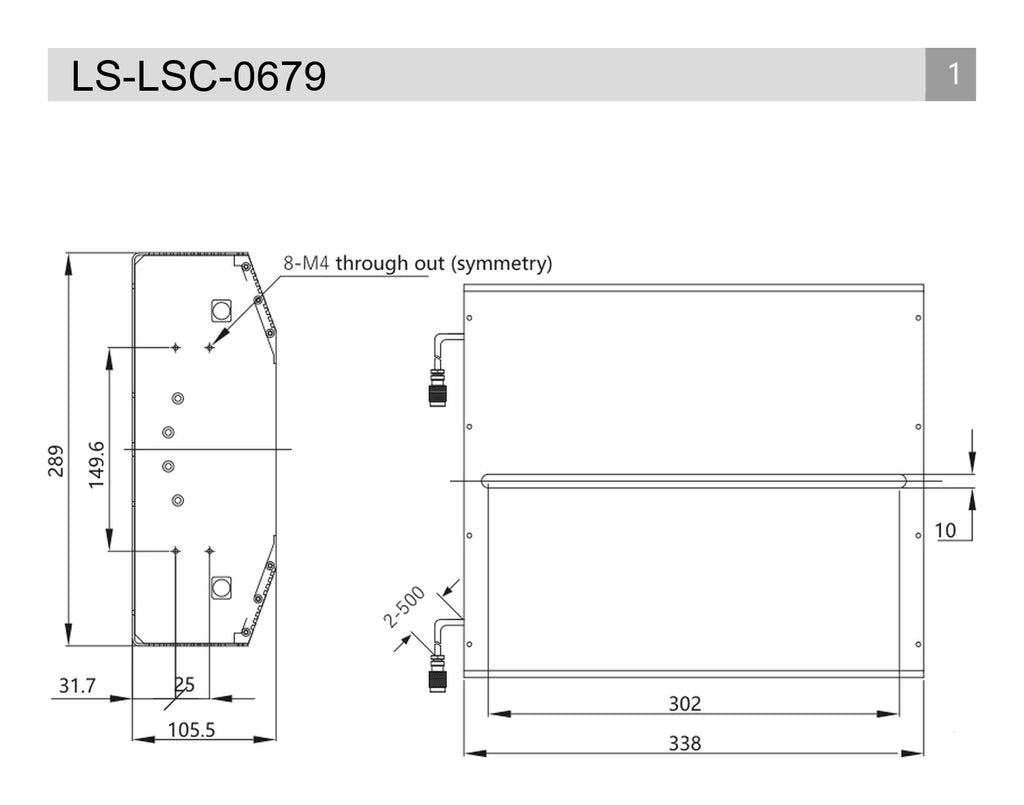

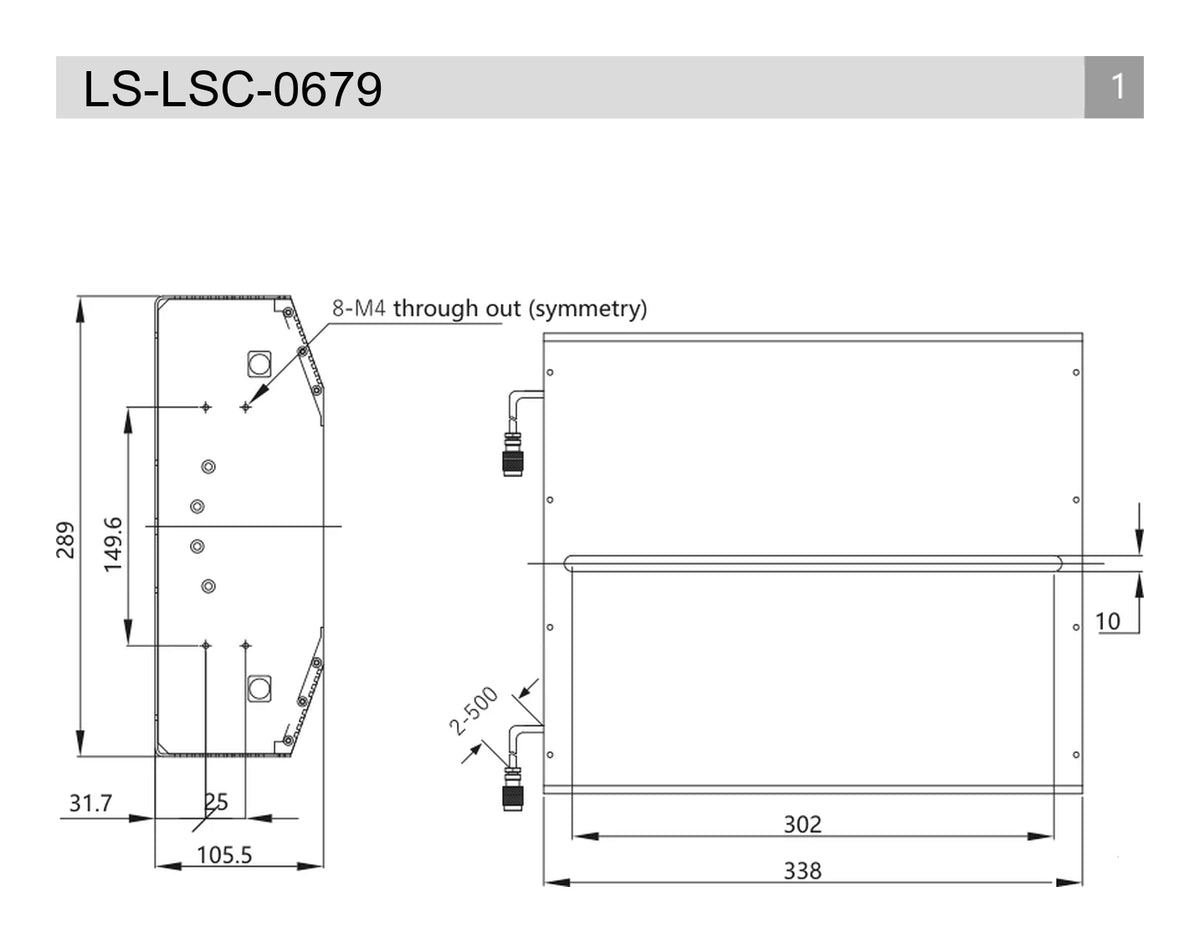

| Outer dimensions (mm) | 338 long, 289 high, 105.5 deep |
|---|---|
| Mounting | 8-M4 through (symmetric) |
| Shipping weight | 3.50 kg |
Other models in the Multi-angle line light, LS-LSC-S66 series series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0676 | White · 224 W | $939.00 | Ships in 2-3 weeks | View |
| LS-LSC-0677 | White · 336 W | $1,129.00 | Ships in 2-3 weeks | View |
| LS-LSC-0678 | White · 432 W | $1,289.00 | Ships in 2-3 weeks | View |
