Line scan lights

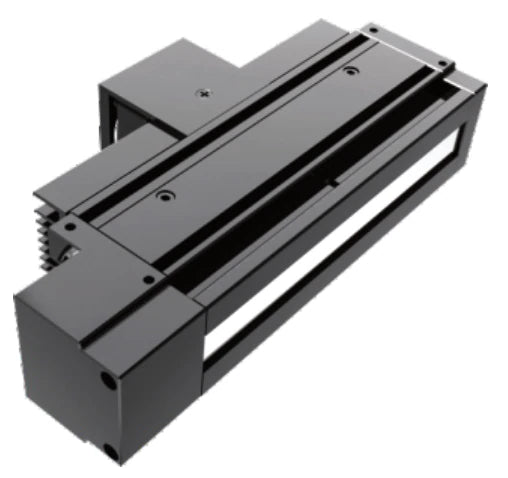

1870 x 17 mm line light source (LS-LSC-0546)

Model LS-LSC-0546

ColourRed, Blue, White
Emitting area1800 x 17 mm
Wavelength red620-630 nm
Wavelength green520-530 nm

$999.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

High-brightness, high-uniformity line light that can be used as front or back light, in customisable lengths. These pages give the dimension drawings for the long LPG sizes and the 2LPG version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LSC-0546
Optional accessories	Extension cable
Service life (red)	60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)	30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Fan quantity	12
Section (mm)	45 wide (top view), 40 base, 97.4 high

Interfaces and I/O

Cable length (mm)	1500
Light cable quantity	2
Extension cable	LS-LAC-0052
Connector	24M-6J/24J6TQ

Light

Wavelength red	620-630 nm
Wavelength green	520-530 nm
Wavelength blue	465-475 nm
Colour temperature white	6000-6500 K
Wavelength IR	850-940 nm
Wavelength UV	365-405 nm
Illuminance chart reference	LS-LSC-0553-W; uniformity LS-LSC-0553-W, FOV 220 x 220 mm at LWD 40/80/100 mm
Emitting width (mm)	17
Emitting area (mm)	1800 x 17

Environment and compliance

Storage temperature	-20 to 60 °C
Operating temperature	0 to 40 °C
Humidity	20-85 %RH (non-condensing)

Electrical

Controller	LS-CTL-0164 / LS-CTL-0165 (the selected controller should match the power of the light source)
Power R (W)	519
Power G/B/W (W)	648
Recommended controller	LS-CTL-0165

Mechanical

Overall length (mm)	1870
Mounting	2-2x10-M4 (position can be adjusted to the installation requirement)
Shipping weight	0.50 kg

Downloads

Datasheet (PDF)LS-LSC-0546 · 1.8 MB

Features

High brightness
High uniformity
Can be used as front light and back light
Customized different lengths

Applications

Standard line light use
High speed line scan inspection
Resistance surface character inspection
Inspection of graphene material appearance
Inspection of cowhide leather surface defects
Aluminium plate surface defect inspection
Printing inspection
Keyboard screen inspection
Rearview mirror flatness inspection
Piece goods defect inspection (IR850)
Cigarette holder count
Screen defect inspection
Cosmetics character inspection
Copper sheet defect inspection
PCB board inspection
PCB 1D code inspection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Line light source (LS-LSC-S54) series

See all 52 models

Model	Size / key data	Price	Availability	Link
LS-LSC-0574	Red, Blue, White · 2400 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0524	Red, Blue, White · 150 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0526	Red, Blue, White · 300 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0528	Red, Blue, White · 450 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0530	Red, Blue, White · 600 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0532	Red, Blue, White · 750 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0534	Red, Blue, White · 900 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0536	Red, Blue, White · 1050 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0538	Red, Blue, White · 1200 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0540	Red, Blue, White · 1350 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0542	Red, Blue, White · 1500 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0544	Red, Blue, White · 1650 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0548	Red, Blue, White · 1950 x 17 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0550	Red, Blue, White · 620-630 nm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0551	24M-6J · 620-630 nm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0527	300 x 17 mm	$1,009.00	Ships in 2-3 weeks	View
LS-LSC-0554	450 x 17 mm	$1,409.00	Ships in 2-3 weeks	View
LS-LSC-0529	450 x 17 mm	$1,409.00	Ships in 2-3 weeks	View
LS-LSC-0555	600 x 17 mm	$1,809.00	Ships in 2-3 weeks	View
LS-LSC-0531	600 x 17 mm	$1,819.00	Ships in 2-3 weeks	View
LS-LSC-0556	750 x 17 mm	$2,209.00	Ships in 2-3 weeks	View
LS-LSC-0533	750 x 17 mm	$2,219.00	Ships in 2-3 weeks	View
LS-LSC-0557	900 x 17 mm	$2,619.00	Ships in 2-3 weeks	View
LS-LSC-0535	900 x 17 mm	$2,629.00	Ships in 2-3 weeks	View
