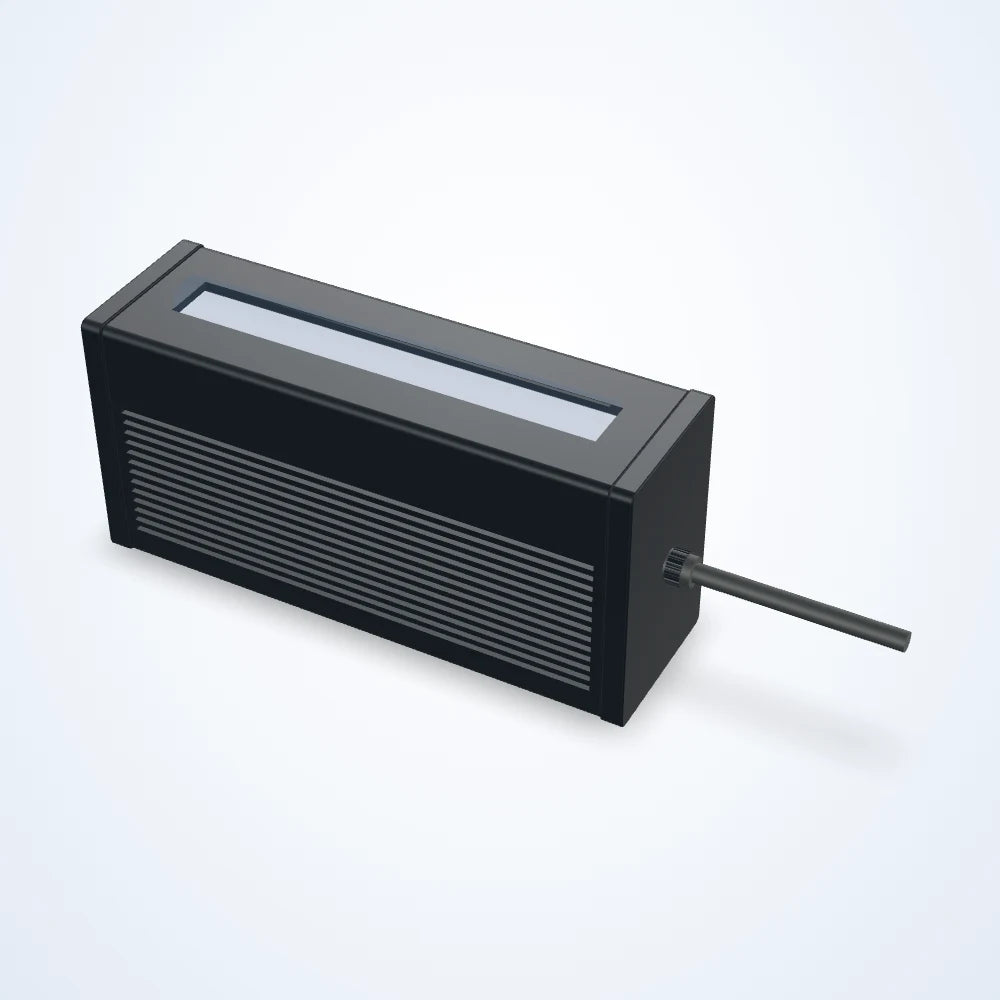

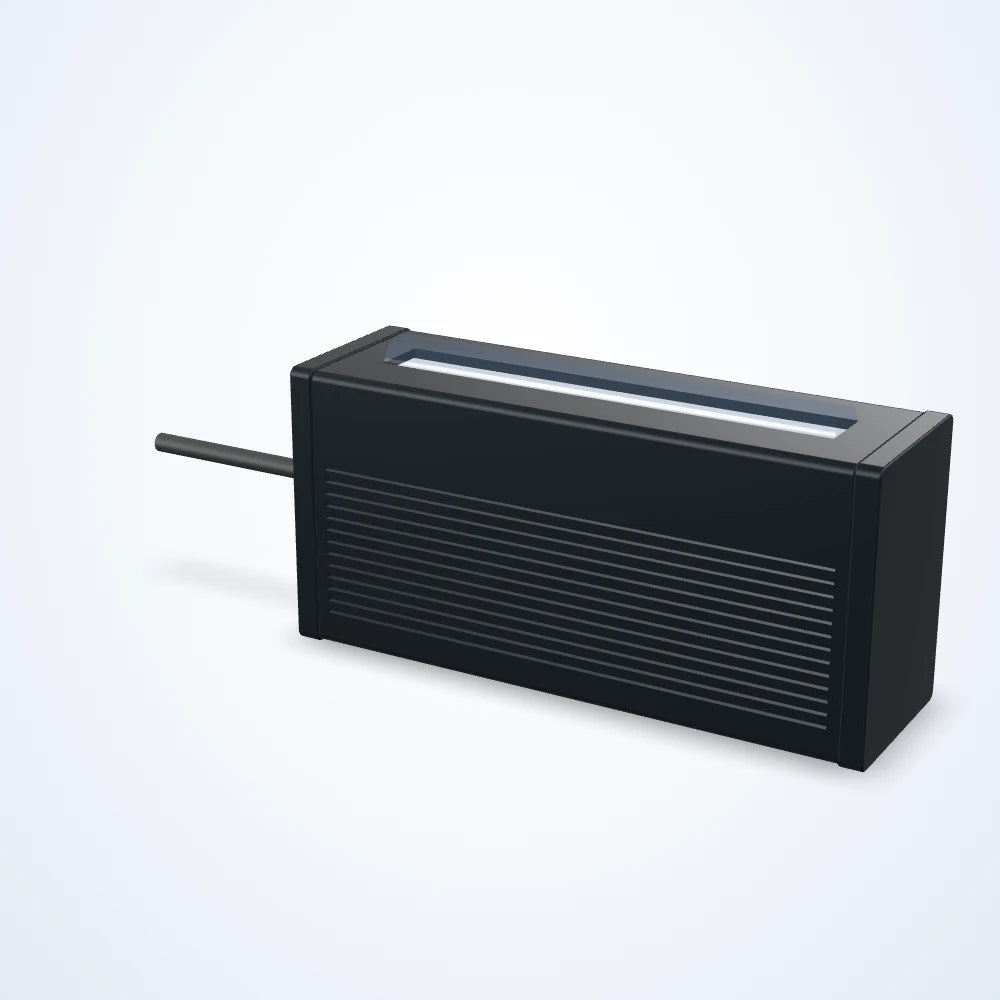

Rendered illustration: the actual product may differ in appearance.
Line scan lights
1350 x 17 mm line scan light (LS-LSC-0484)
Model LS-LSC-0484
- ColourRed, Blue, White, Green, UV
- Emitting area1350 × 17 mm
- Voltage24 VDC
- PowerR: 138.3 W / B-W-G: 207.4 W
- Wavelength1: (-), 2: (-) ,3: (+), 4:(+)
$1,375.00
Ships in 3-4 weeks
3.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line scan light for line-scan cameras on moving webs and conveyors. Emitting area 1350 x 17 mm; 24 V DC supply; available in red, blue, white, green, infrared 850 nm, infrared 940 nm, UV.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0484 |
|---|---|
| Service life | White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
Interfaces and I/O
| Connector | 20M-4J \ 20J4TQ \ AOPULO |
|---|---|
| Cable length | 500 mm |
Light
| Emitting area (mm) | 1350 × 17 |
|---|---|
| Wavelength | 1: (-), 2: (-) ,3: (+), 4:(+) |
Environment and compliance
| Operating environment | Humidity:20% to 85% RH (with no condensation) |
|---|
Electrical
| Power | R: 138.3 W / B-W-G: 207.4 W |
|---|---|
| Supply voltage | 24 VDC |
Mechanical
| Housing material | Aluminum alloy, Resin |
|---|---|
| Shipping weight | 3.00 kg |
Other models in the Line scan lights (LS-LSC-S51) series
See all 19 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0476 | 150 x 17 mm | from $330.00 | Ships in 3-4 weeks | View |
| LS-LSC-0477 | 300 x 17 mm | from $385.00 | Ships in 3-4 weeks | View |
| LS-LSC-0478 | 450 x 17 mm | from $550.00 | Ships in 3-4 weeks | View |
| LS-LSC-0479 | 600 x 17 mm | from $715.00 | Ships in 3-4 weeks | View |
| LS-LSC-0480 | 750 x 17 mm | from $825.00 | Ships in 3-4 weeks | View |
| LS-LSC-0481 | 900 x 17 mm | from $968.00 | Ships in 3-4 weeks | View |
| LS-LSC-0482 | 1050 x 17 mm | from $990.00 | Ships in 3-4 weeks | View |
| LS-LSC-0483 | 1200 x 17 mm | from $1,089.00 | Ships in 3-4 weeks | View |
| LS-LSC-0485 | 1500 x 17 mm | from $1,540.00 | Ships in 3-4 weeks | View |
| LS-LSC-0486 | 1650 x 17 mm | from $1,925.00 | Ships in 3-4 weeks | View |
| LS-LSC-0487 | 1800 x 17 mm | from $1,980.00 | Ships in 3-4 weeks | View |
| LS-LSC-0488 | 1950 x 17 mm | from $2,145.00 | Ships in 3-4 weeks | View |
| LS-LSC-0489 | 2100 x 17 mm | from $2,200.00 | Ships in 3-4 weeks | View |
| LS-LSC-0490 | 2250 x 17 mm | from $2,585.00 | Ships in 3-4 weeks | View |
| LS-LSC-0491 | 2400 x 17 mm | from $2,750.00 | Ships in 3-4 weeks | View |
| LS-LSC-0492 | 2550 x 17 mm | from $2,750.00 | Ships in 3-4 weeks | View |
| LS-LSC-0493 | 3000 x 17 mm | from $2,860.00 | Ships in 3-4 weeks | View |
| LS-LSC-0494 | 3400 x 17 mm | from $3,300.00 | Ships in 3-4 weeks | View |
