Line scan lights
600 mm Water-Cooled Line Scan Light (LS-LSC-0471)
Model LS-LSC-0471
- ColourRed, Green, Blue, White
- Emitting area600x20 mm
- Size630x44x62 mm
- Voltage48 V
$2,319.00
Ships in 2-3 weeks
1.6 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
600 mm Water-Cooled Line Scan Light. Water-cooled line scan light with a close arrangement of high-power LEDs for high-brightness, uniform emission. A temperature-control switch protects the light from damage due to high temperature.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0471 |
|---|---|

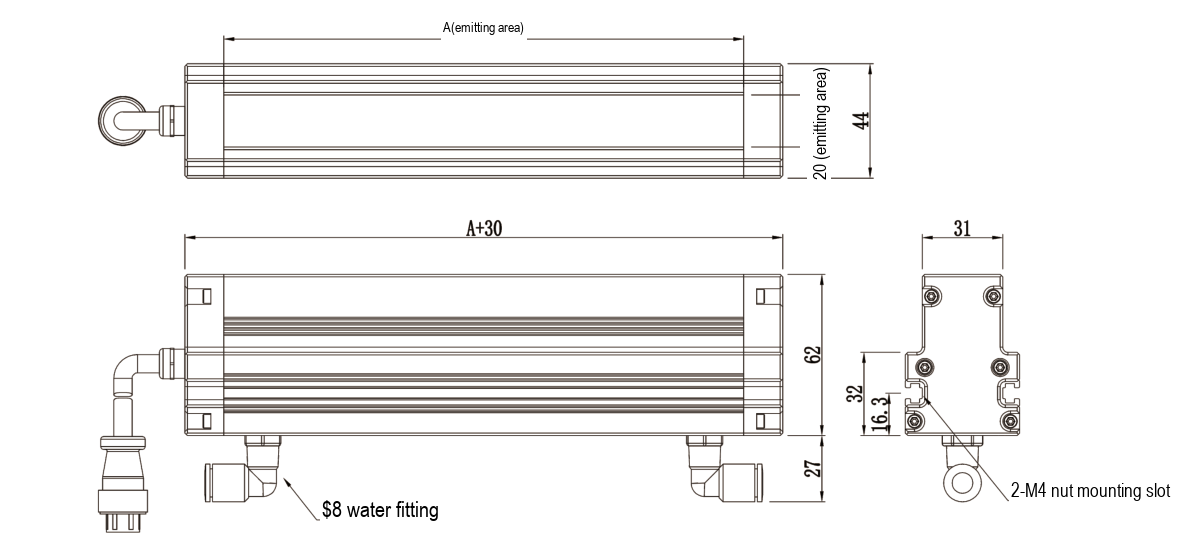

| Cooling | Water cooled; Φ8 water pipe connectors (drawing) |
| Outer cross-section WxH | 44x62 mm |
Light
| Emitting area (mm) | 600x20 |
|---|---|
| Colours | Red, Green, Blue, White |
| Emitting width | 20 mm |
Electrical
| Voltage (V) | 48 |
|---|---|
| Power R (W) | 175 |
| Power G/B/W (W) | 350 |
Mechanical
| Outer size L x W x H (mm) | 630x44x62 |
|---|---|
| Mounting | 2-M4 nut mounting slot (end view 31 wide; slot at 32 / 16.3 from base; fittings add 27 below body) |
| Shipping weight (estimated) | 1.60 kg |
Other models in the Line scan light with water cooling (LS-LSC-S50) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0468 | 300 mm | $1,279.00 | Ships in 2-3 weeks | View |
| LS-LSC-0469 | 400 mm | $1,619.00 | Ships in 2-3 weeks | View |
| LS-LSC-0470 | 500 mm | $1,969.00 | Ships in 2-3 weeks | View |
| LS-LSC-0472 | 700 mm | $2,669.00 | Ships in 2-3 weeks | View |
| LS-LSC-0473 | 800 mm | $3,019.00 | Ships in 2-3 weeks | View |
| LS-LSC-0474 | 900 mm | $3,369.00 | Ships in 2-3 weeks | View |
| LS-LSC-0475 | 1000 mm | $3,709.00 | Ships in 2-3 weeks | View |
