Line scan lights
Halogen lamp line scan light, 362 x 60 x 135.5 mm (LS-LSC-0345)
Model LS-LSC-0345
- Emitting area350 x 52 mm
- SizeL362xW60xH135.5(mm)
- Voltage24V
- Power300W
$1,179.00
Ships in 2-3 weeks
1.75 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Halogen lamp, easy to adjust and control brightness, good color rendering, long service life, the light is used for places requiring concentrated irradiation, high brightness but large heat, need a good heat dissipation environment. Ancient calligraphy and painting inspection, graphite sample defect inspection, antique ceramic pattern inspection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0345 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: FAN+, 4: FAN- |
|---|---|

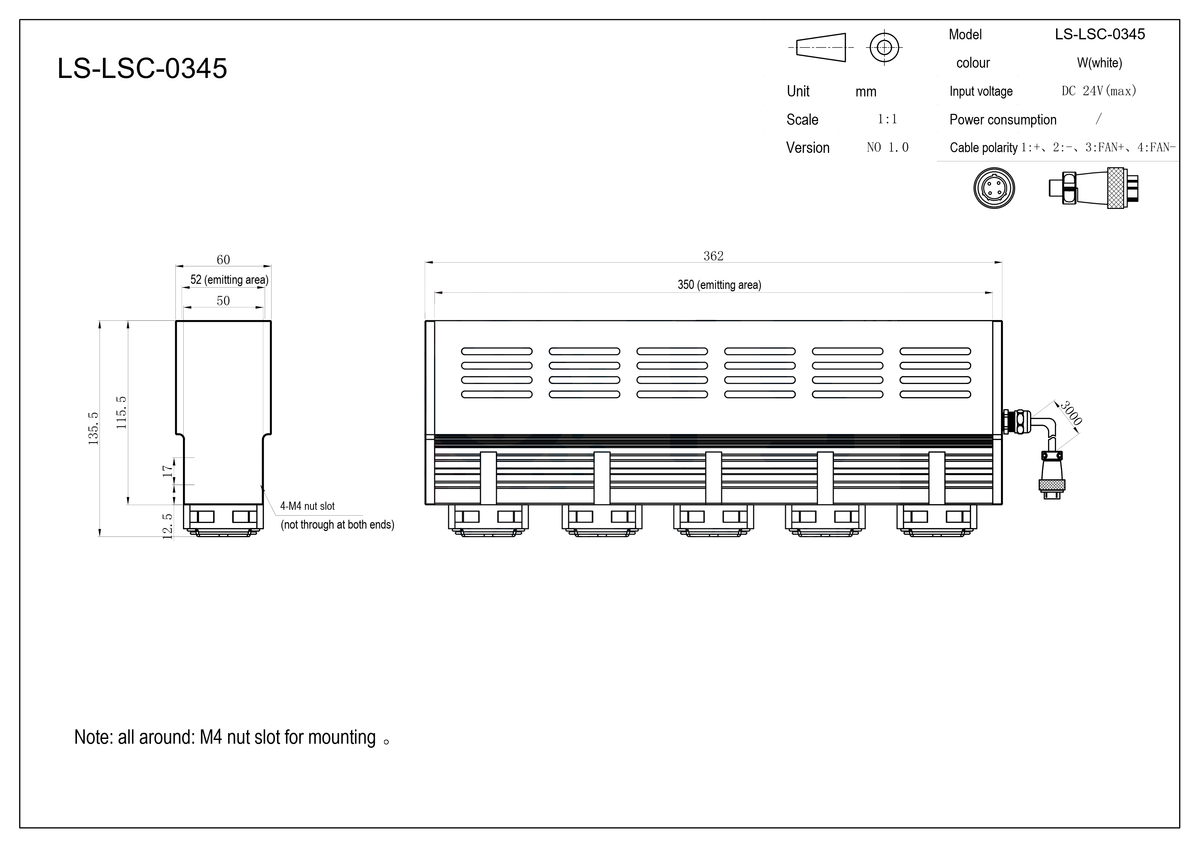

| Cable (mm) | 3000 (drawing) |
Light
| Emitting surface (mm) | 350 x 52 |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Power | 300W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L362xW60xH135.5(mm) |
|---|---|
| Mounting holes | 4 x M4 nut slots |
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 1.75 kg |
Other models in the Halogen lamp line scan light (LS-LSC-S38) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0346 | 430 x 52 mm · L442xW60xH135.5(mm) | $1,399.00 | Ships in 2-3 weeks | View |
| LS-LSC-0347 | 620 x 52 mm · L632xW60xH135.5(mm) | $1,919.00 | Ships in 2-3 weeks | View |
| LS-LSC-0348 | 820 x 52 mm · L832xW60xH135.5(mm) | $2,459.00 | Ships in 2-3 weeks | View |
| LS-LSC-0349 | 1020 x 52 mm · L1032xW60xH135.5(mm) | $2,999.00 | Ships in 2-3 weeks | View |
