Line scan lights
302 x 88 mm Tunnel light (LS-LSC-0342)
Model LS-LSC-0342
- ColourRed, Green, Blue, White
- Emitting area302 x 88 mm

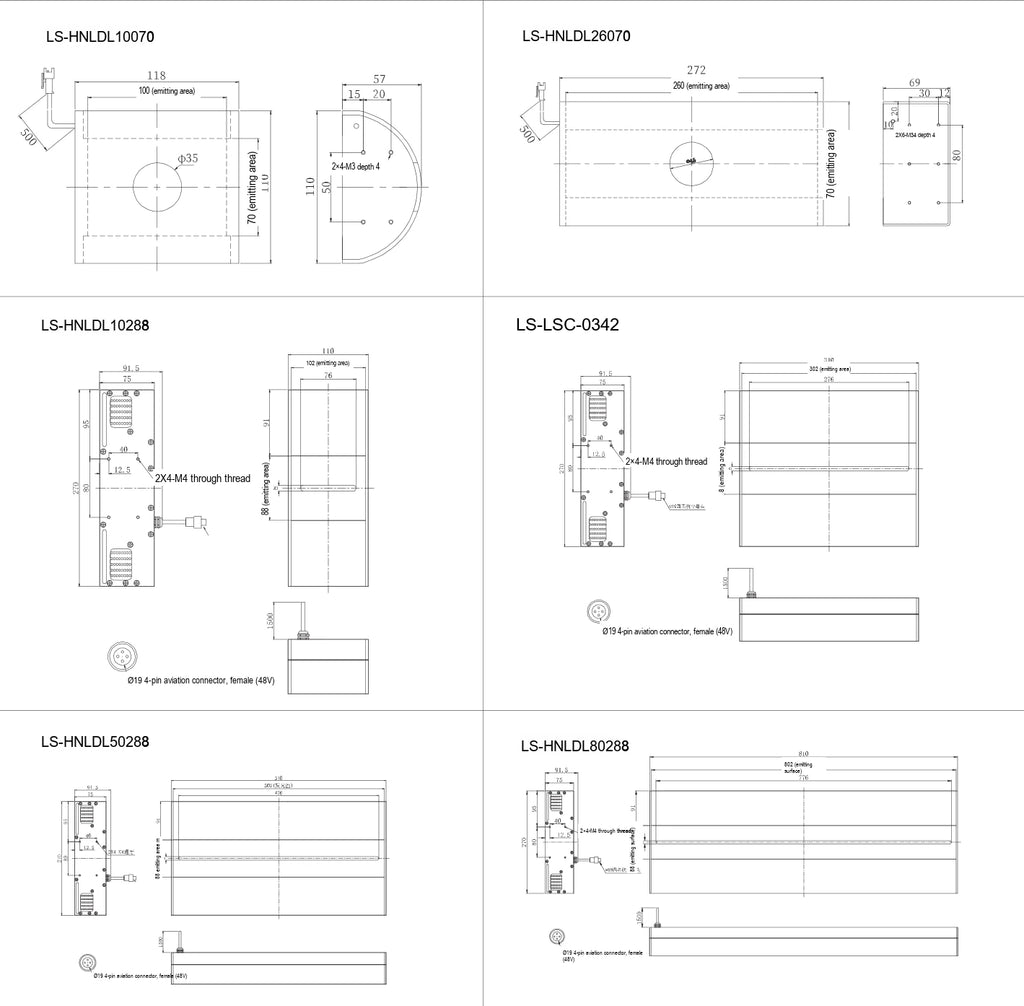

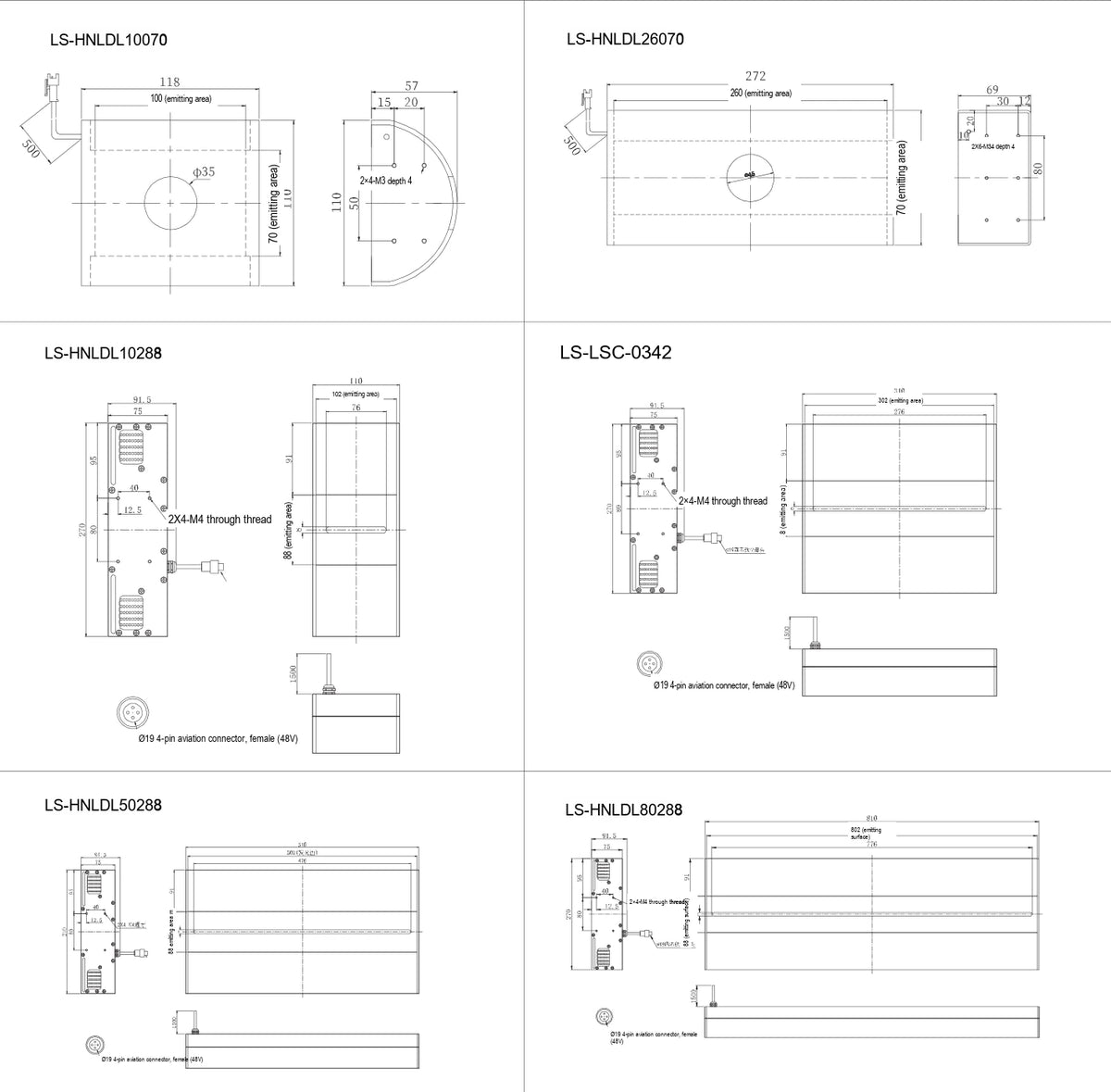

- Voltage48 V (connector label in drawing)
- Power, red105 W
$1,039.00
Ships in 2-3 weeks
2.95 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Tunnel light with high uniformity and high brightness, compact and durable. Used where the object needs an evenly lit surface, together with a line scan camera; it combines the characteristics of a dome light and a bar light.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0342 |
|---|---|
| Expected lifetime | Red, white, blue and white light sources can be lit continuously for 20000 hours with light decay of 60% (about 10-20% decay after one year of normal lighting) |
| Support | All products come with one year of standard free technical support and can be customised to the object features, working distance, lighting angle and field of view |
Interfaces and I/O
| Connector | dia. 19 4-pin aviation female connector (48 V) |
|---|---|
| Cable length (mm) | 1500 |
Light
| Emitting area (mm) | 302 x 88 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 22 °C; operating temperature within 25 °C |
|---|
Electrical
| Power, green / blue / white (W) | 105 |
|---|---|
| Power, red (W) | 105 |
| Suggested controller | LS-CTL-0346 |
| Voltage | 48 V (connector label in drawing) |
Mechanical
| Shipping weight | 2.95 kg |
|---|
Other models in the Tunnel light (LS-LSC-S37) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0339 | 100 x 70 mm | $459.00 | Ships in 2-3 weeks | View |
| LS-LSC-0340 | 102 x 88 mm | $479.00 | Ships in 2-3 weeks | View |
| LS-LSC-0341 | 260 x 70 mm | $899.00 | Ships in 2-3 weeks | View |
| LS-LSC-0343 | 502 x 88 mm | $1,549.00 | Ships in 2-3 weeks | View |
| LS-LSC-0344 | 802 x 88 mm | $2,429.00 | Ships in 2-3 weeks | View |
