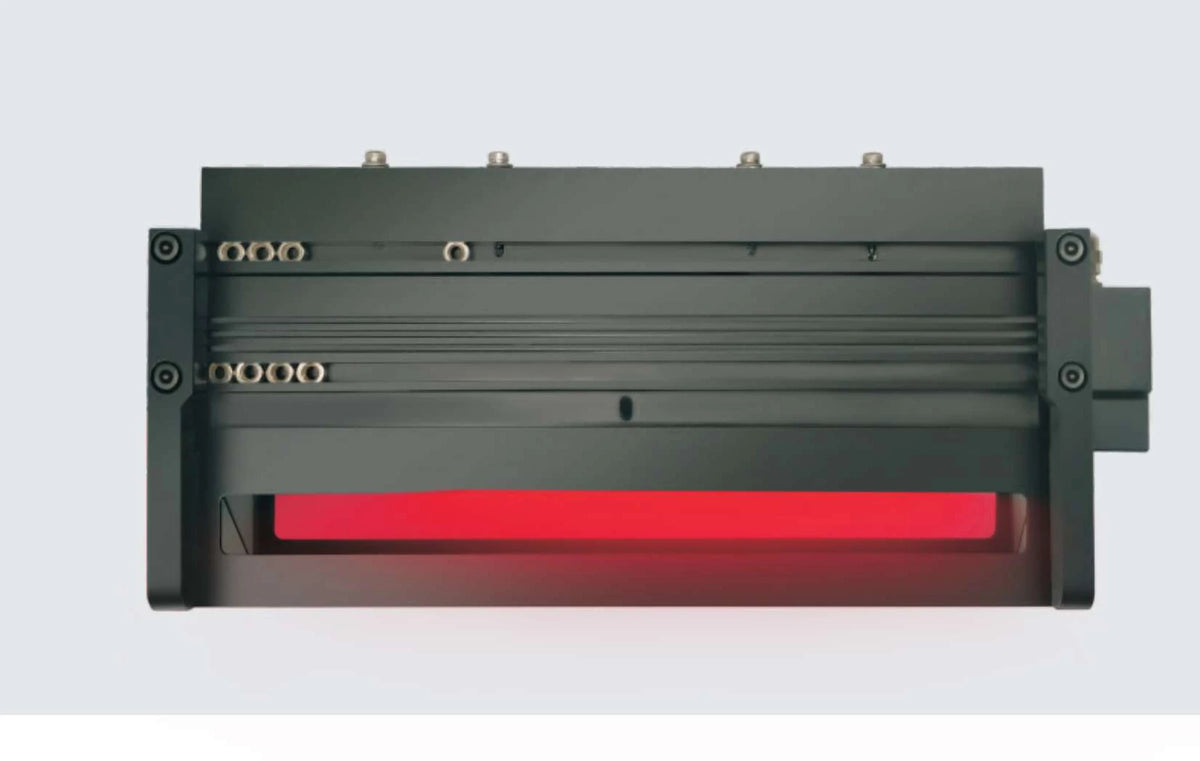

Representative photo of this series
Line scan lights
100 mm Coaxial line light (LS-LSC-0323)
Model LS-LSC-0323
- ColourRed, Green, Blue, White
- Power40 W
- Voltage48 V
- Cable length500 mm
$469.00
Ships in 2-3 weeks
0.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial line light made of a coaxial module and a standard line light. It keeps all functions of the line light while the coaxial module concentrates the light better; it uses the same controllers as the matching standard line light.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0323 |
|---|---|
| Expected life | Red, white, blue and white (as printed): 20000 h continuous, decays to 60% (typical one-year decay 10-20%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting length (mm) | 100 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 22 °C, operating temperature within 25 °C |
|---|
Electrical
| Voltage | 48 V (P version, as stated in the coding rule) |
|---|---|
| Power (W) | 40 |
| Recommended controller | LS-CTL-0346 |

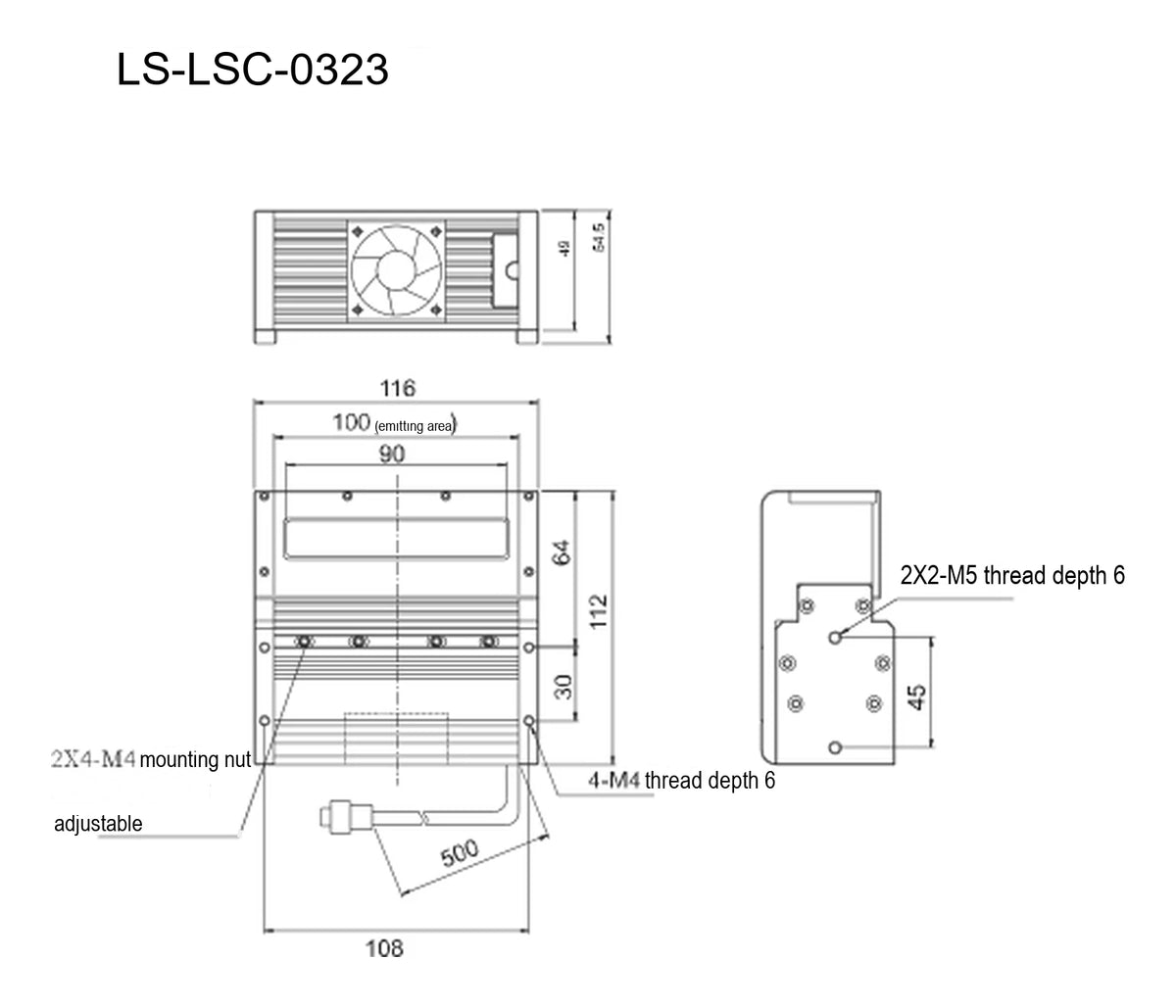

Mechanical
| Size (mm) | L 116 x W 54.5 |
|---|---|
| Height (mm) | 112 |
| Shipping weight | 0.70 kg |
Other models in the Coaxial line light (LS-LSC-S35) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0324 | 200 mm | $739.00 | Ships in 2-3 weeks | View |
| LS-LSC-0325 | 300 mm | $1,009.00 | Ships in 2-3 weeks | View |
| LS-LSC-0326 | 400 mm | $1,279.00 | Ships in 2-3 weeks | View |
| LS-LSC-0327 | 500 mm | $1,549.00 | Ships in 2-3 weeks | View |
| LS-LSC-0328 | 700 mm | $2,089.00 | Ships in 2-3 weeks | View |
