Representative photo of this series
Line scan lights
Oblique line scan light, 540 x 48 x 75 mm (LS-LSC-0305)
Model LS-LSC-0305
- ColourRed, Blue, Green, White
- Emitting area500 x 18 mm
- SizeL540xW48xH75(mm)
- Voltage24V
- Power87W
$1,649.00
In stock - ships the same business day (2 available, order by 2 PM ET)
1.6 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Oblique optical design, the light is emitted at a 20° angle. The oblique line scan light is suitable for line scan system to detect wrinkles and scratches.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0305 |
|---|---|
| Cooling | Natural cooling |
| Note | UV & IR light can be customized as required. |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 500 x 18 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 87W |
| Input voltage | DC 24V (max) |

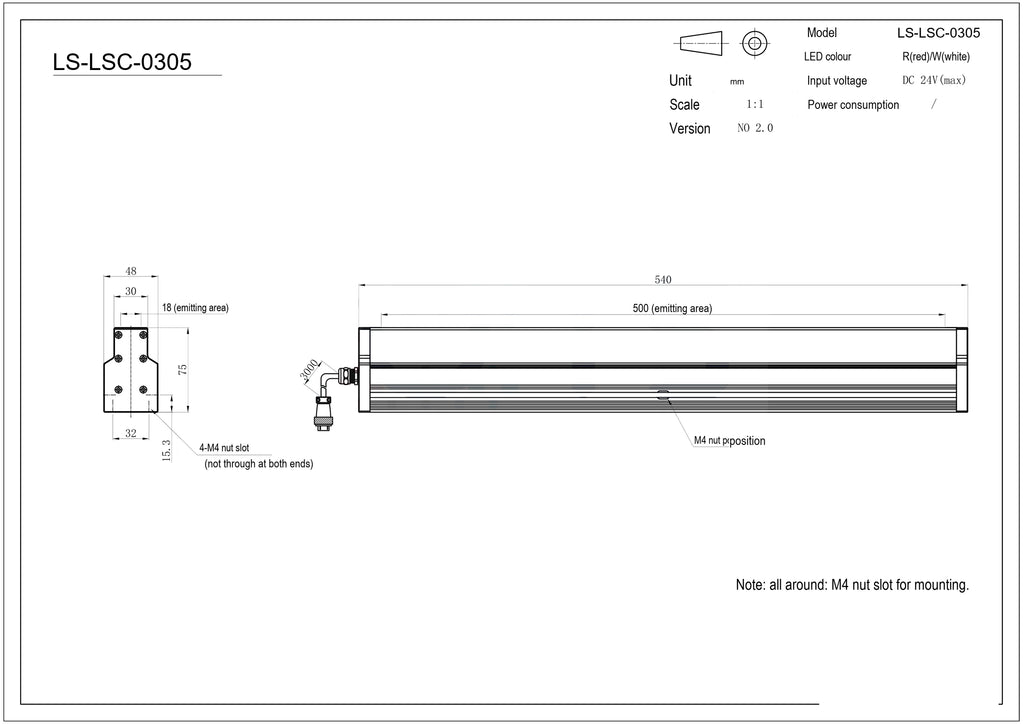

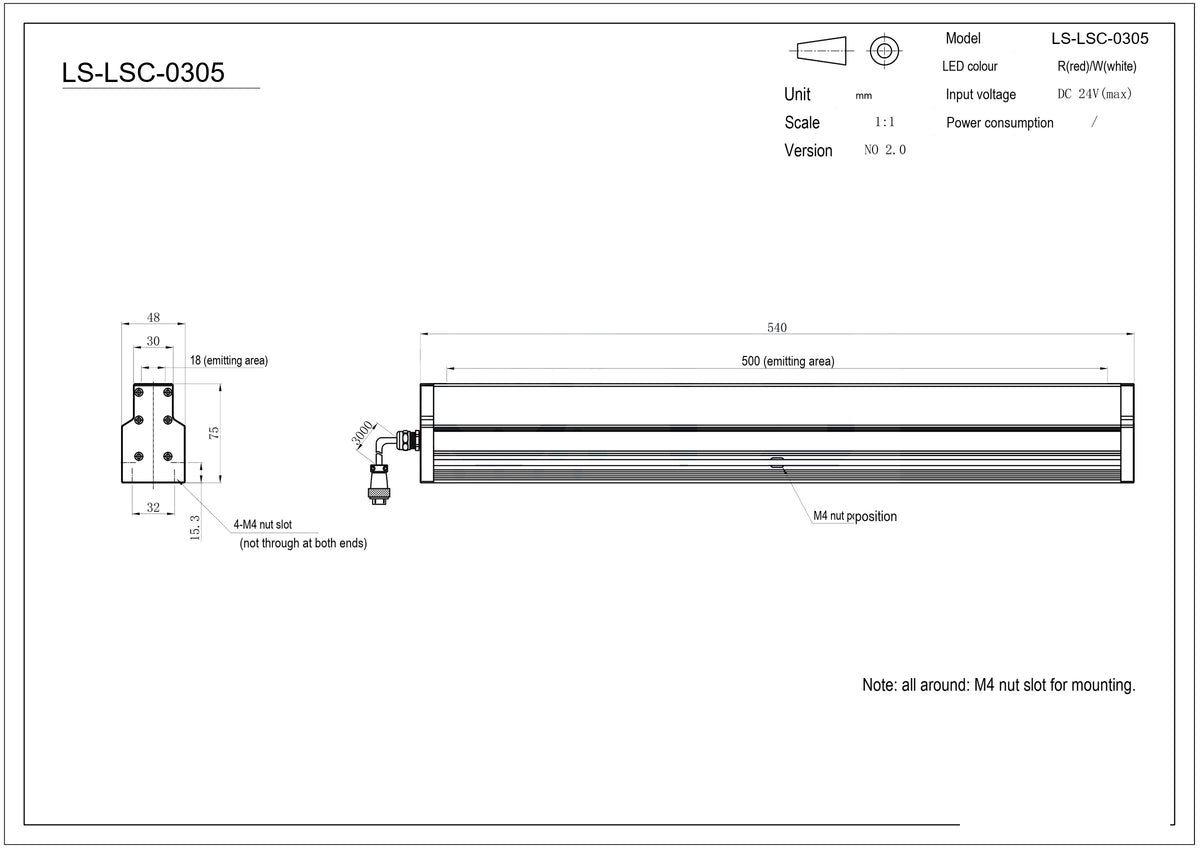

Mechanical
| Dimension | L540xW48xH75(mm) |
|---|---|
| Mounting holes | 4 x M4 nut slots |
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 1.60 kg |
Other models in the Oblique line scan light (LS-LSC-S32) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0301 | Red, Blue, Green, White · 100 x 18 mm | $569.00 | 11 in stock | View |
| LS-LSC-0302 | Red, Blue, Green, White · 200 x 18 mm | $839.00 | 17 in stock | View |
| LS-LSC-0303 | Red, Blue, Green, White · 300 x 18 mm | $1,109.00 | 15 in stock | View |
| LS-LSC-0304 | Red, Blue, Green, White · 400 x 18 mm | $1,379.00 | 16 in stock | View |
| LS-LSC-0306 | Red, Blue, Green, White · 600 x 18 mm | $1,919.00 | 13 in stock | View |
| LS-LSC-0307 | Red, Blue, Green, White · 700 x 18 mm | $2,189.00 | 14 in stock | View |
| LS-LSC-0308 | Red, Blue, Green, White · 800 x 18 mm | $2,459.00 | 12 in stock | View |
| LS-LSC-0309 | Red, Blue, Green, White · 900 x 18 mm | $2,729.00 | 15 in stock | View |
| LS-LSC-0310 | Red, Blue, Green, White · 1000 x 18 mm | $2,999.00 | 12 in stock | View |
