Representative photo of this series
Line scan lights
High uniformity line scan light, 840 x 48 x 102 mm (LS-LSC-0288)
Model LS-LSC-0288
- ColourWhite
- Emitting area800 x 18 mm
- SizeL840xW48xH102(mm)
- Voltage24V
- Power260W
$2,469.00
In stock - ships the same business day (2 available, order by 2 PM ET)
2.8 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High uniformity and good paralellism, matched with line scan camera. Light weight, good heat dissipation, high luminous. High cost-effective, compact volume, suitable for batch use.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0288 |
|---|---|
| Cooling | Fan cooling |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: FAN+, 4: FAN- |
|---|---|

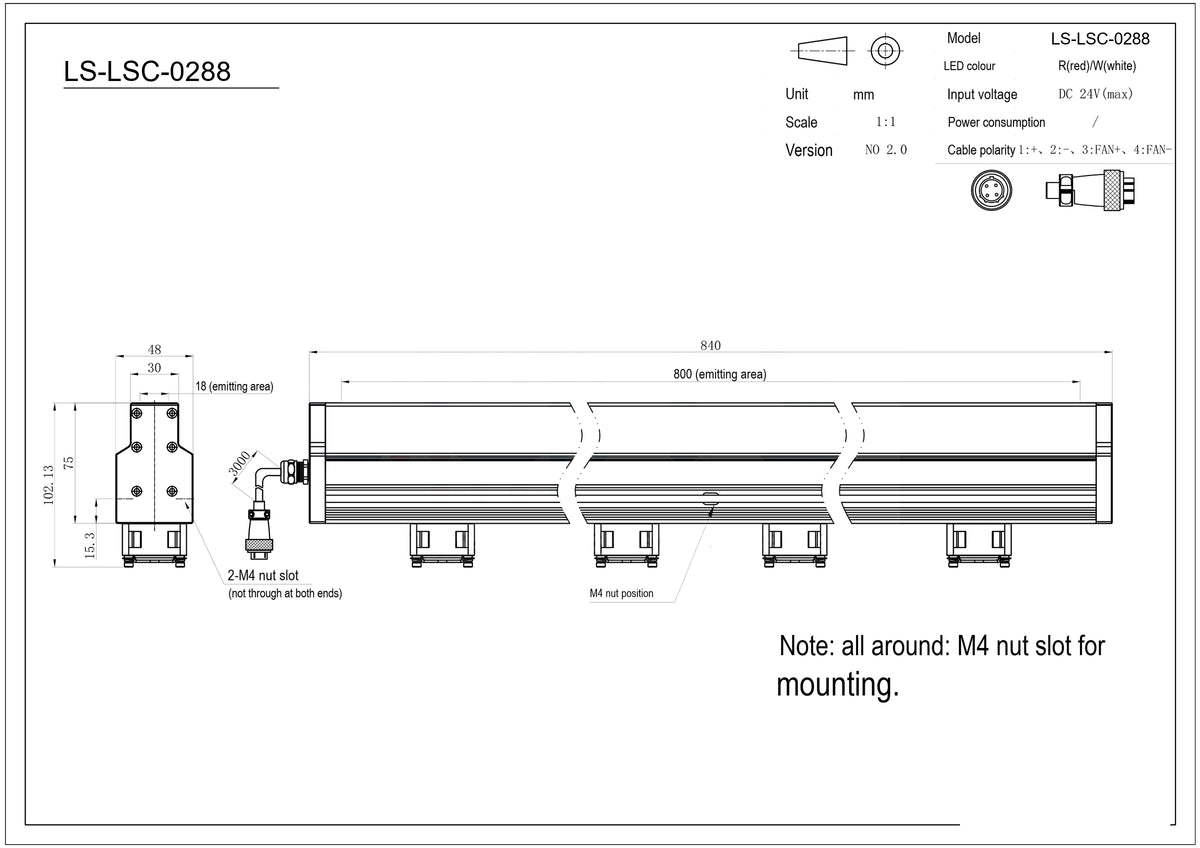

| Cable (mm) | 3000 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 800 x 18 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 260W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L840xW48xH102(mm) |
|---|---|
| Mounting holes | 2 x M4 nut slots |
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 2.80 kg |
Other models in the High uniformity line scan light (LS-LSC-S30) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0281 | White · 100 x 18 mm | $569.00 | 4 in stock | View |
| LS-LSC-0282 | White · 200 x 18 mm | $839.00 | 5 in stock | View |
| LS-LSC-0283 | White · 300 x 18 mm | $1,109.00 | 4 in stock | View |
| LS-LSC-0284 | White · 400 x 18 mm | $1,379.00 | 4 in stock | View |
| LS-LSC-0285 | White · 500 x 18 mm | $1,649.00 | 5 in stock | View |
| LS-LSC-0286 | White · 600 x 18 mm | $1,919.00 | 4 in stock | View |
| LS-LSC-0287 | White · 700 x 18 mm | $2,199.00 | 4 in stock | View |
| LS-LSC-0289 | White · 900 x 18 mm | $2,739.00 | 2 in stock | View |
| LS-LSC-0290 | White · 1000 x 18 mm | $3,009.00 | 4 in stock | View |
