Representative photo of this series. Colour shown for illustration; the actual product may differ
Line scan lights
Compact line scan light, 340 x 30 x 60 mm (LS-LSC-0273)
Model LS-LSC-0273
- ColourRed, Blue, Green, White
- Emitting area300 x 18 mm
- SizeL340xW30xH60(mm)
- Voltage24V
- Power32.4W
$1,109.00
Ships in 2-3 weeks
0.85 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-brightness and uniform, with excellent parallelism. Compact in size, with a width of only 30mm and a height of 60mm. The dust removal detection effect is relatively good, natural cooling.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0273 |
|---|---|
| Cooling | Natural cooling |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O

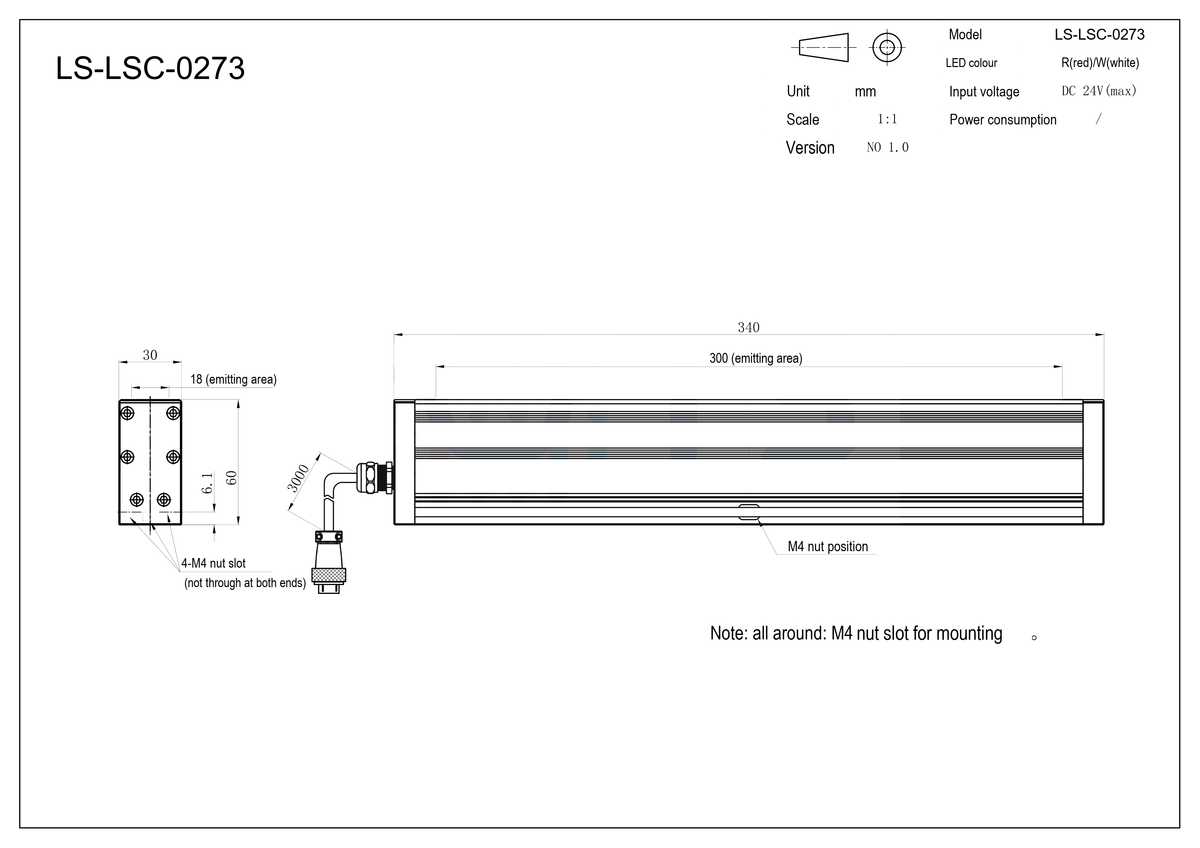

| Cable (mm) | 3000 (drawing) |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 300 x 18 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 32.4W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L340xW30xH60(mm) |
|---|---|
| Mounting holes | 4 x M4 nut slots |
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 0.85 kg |
Other models in the Compact line scan light (LS-LSC-S29) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0271 | Red, Blue, Green, White · 100 x 18 mm | $569.00 | Ships in 2-3 weeks | View |
| LS-LSC-0272 | Red, Blue, Green, White · 200 x 18 mm | $839.00 | Ships in 2-3 weeks | View |
| LS-LSC-0274 | Red, Blue, Green, White · 400 x 18 mm | $1,369.00 | Ships in 2-3 weeks | View |
| LS-LSC-0275 | Red, Blue, Green, White · 500 x 18 mm | $1,639.00 | Ships in 2-3 weeks | View |
| LS-LSC-0276 | Red, Blue, Green, White · 600 x 18 mm | $1,909.00 | Ships in 2-3 weeks | View |
| LS-LSC-0277 | Red, Blue, Green, White · 700 x 18 mm | $2,179.00 | Ships in 2-3 weeks | View |
| LS-LSC-0278 | Red, Blue, Green, White · 800 x 18 mm | $2,449.00 | Ships in 2-3 weeks | View |
| LS-LSC-0279 | Red, Blue, Green, White · 900 x 18 mm | $2,719.00 | Ships in 2-3 weeks | View |
| LS-LSC-0280 | Red, Blue, Green, White · 1000 x 18 mm | $2,979.00 | Ships in 2-3 weeks | View |
