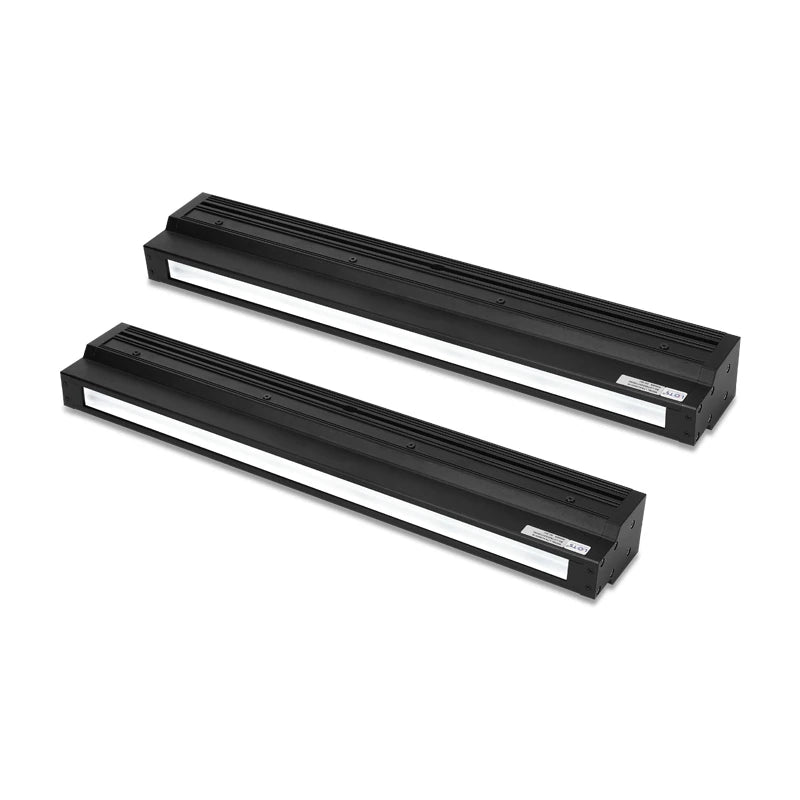

Representative photo of this series
Line scan lights
Natural cooling line scan light, 340 x 48 x 75 mm (LS-LSC-0243)
Model LS-LSC-0243
- ColourRed, Blue, Green, White
- Emitting area300 x 18 mm
- SizeL340xW48xH75(mm)
- Voltage24V
- Power53W
$1,109.00
Ships in 2-3 weeks
1.1 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High uniformity & parallelism, perfectly match to line scan camera. Light weight, good heat dissipation, high brightness. High cost performance, compact size, suitable for batch use.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0243 |
|---|---|
| Cooling | Natural Cooling |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: NC, 4: NC |
|---|---|

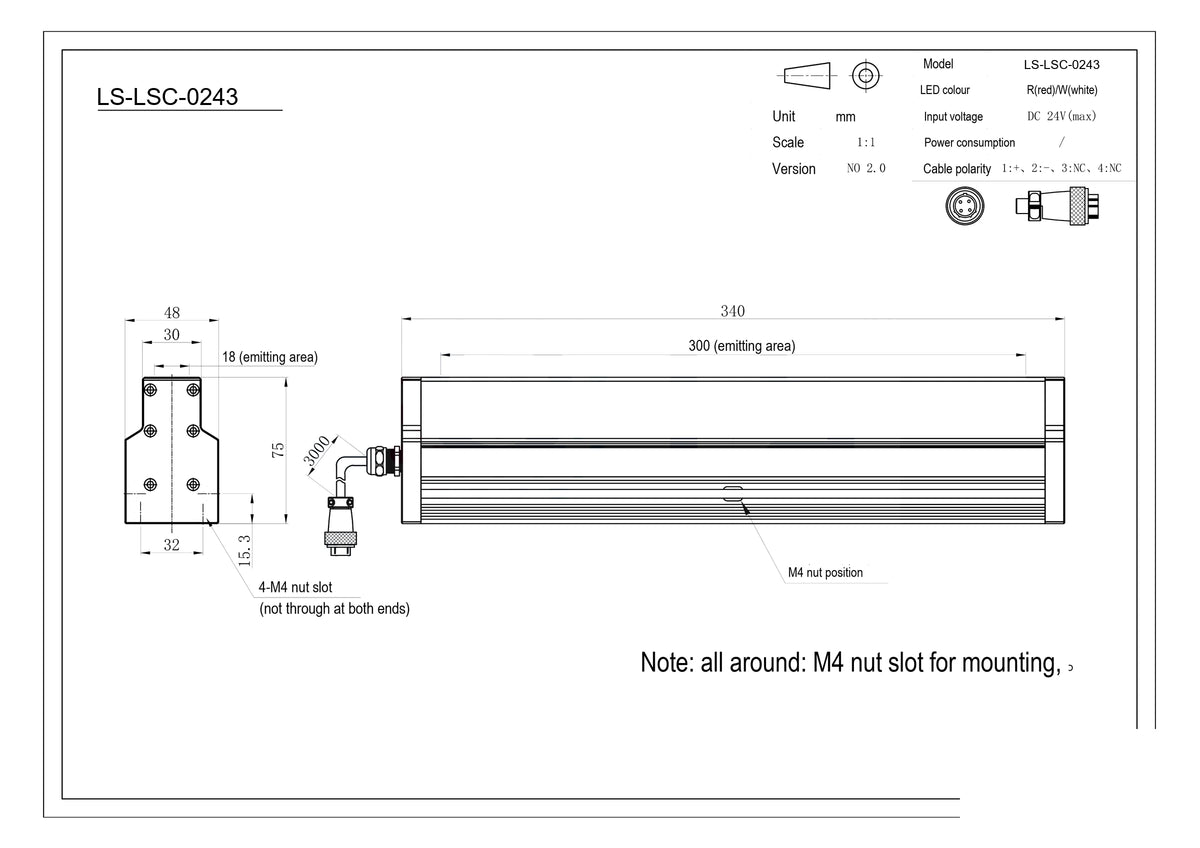

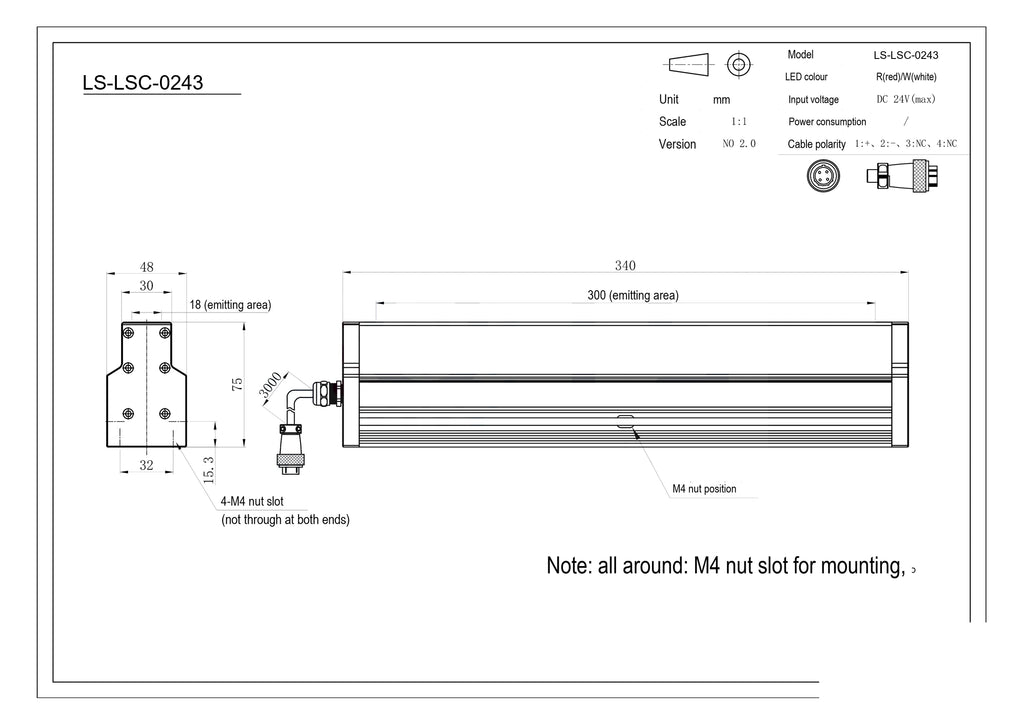

| Cable (mm) | 3000 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 300 x 18 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 53W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L340xW48xH75(mm) |
|---|---|
| Mounting holes | 4 x M4 nut slots |
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 1.10 kg |
Other models in the Natural cooling line scan light (LS-LSC-S26) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0241 | Red, Blue, Green, White · 100 x 18 mm | $569.00 | Ships in 2-3 weeks | View |
| LS-LSC-0242 | Red, Blue, Green, White · 200 x 18 mm | $839.00 | Ships in 2-3 weeks | View |
| LS-LSC-0244 | Red, Blue, Green, White · 400 x 18 mm | $1,379.00 | Ships in 2-3 weeks | View |
| LS-LSC-0245 | Red, Blue, Green, White · 500 x 18 mm | $1,649.00 | Ships in 2-3 weeks | View |
| LS-LSC-0246 | Red, Blue, Green, White · 600 x 18 mm | $1,919.00 | Ships in 2-3 weeks | View |
| LS-LSC-0247 | Red, Blue, Green, White · 700 x 18 mm | $2,189.00 | Ships in 2-3 weeks | View |
| LS-LSC-0248 | Red, Blue, Green, White · 800 x 18 mm | $2,459.00 | Ships in 2-3 weeks | View |
| LS-LSC-0249 | Red, Blue, Green, White · 900 x 18 mm | $2,729.00 | Ships in 2-3 weeks | View |
| LS-LSC-0250 | Red, Blue, Green, White · 1000 x 18 mm | $2,999.00 | Ships in 2-3 weeks | View |
