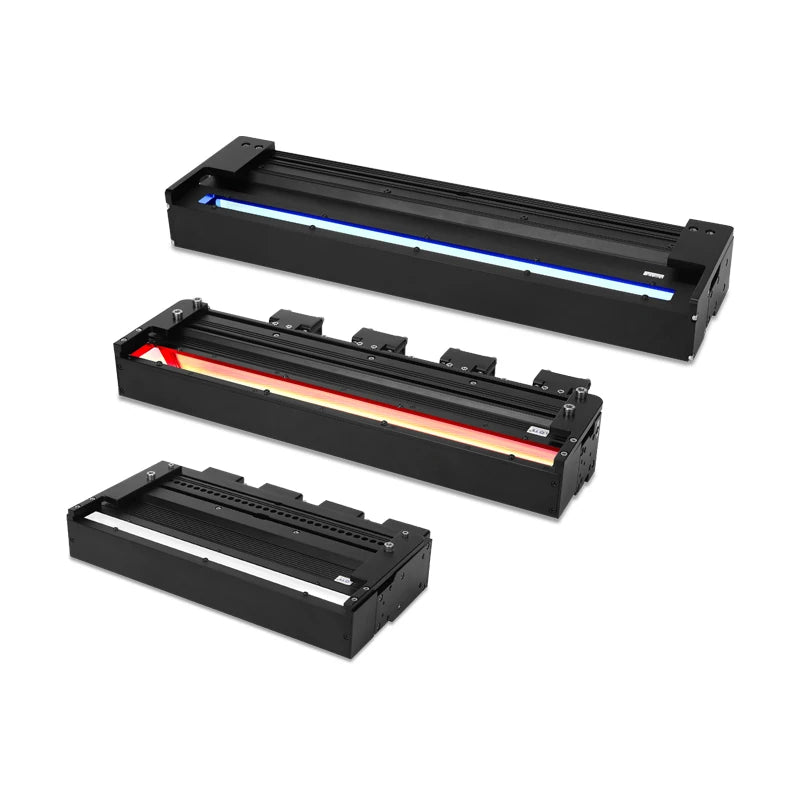

Representative photo of this series. Colour shown for illustration; the actual product may differ
Line scan lights
Coaxial line scan light, 140 x 56 x 115 mm (LS-LSC-0231)
Model LS-LSC-0231
- ColourRed, Blue, Green, White
- Emitting area100 x 24 mm
- SizeL140xW56xH115(mm)
- Voltage24V
- Power18W
$569.00
Ships in 2-3 weeks
0.8 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Special cylindrical condenser lens is adopted to gather high brightness LEDs into a high brightness linear light; optimal uniform light for shiny and reflective surfaces.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0231 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Viewport (camera hole) | 94 x 15 mm |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: NC, 4: NC |
|---|---|

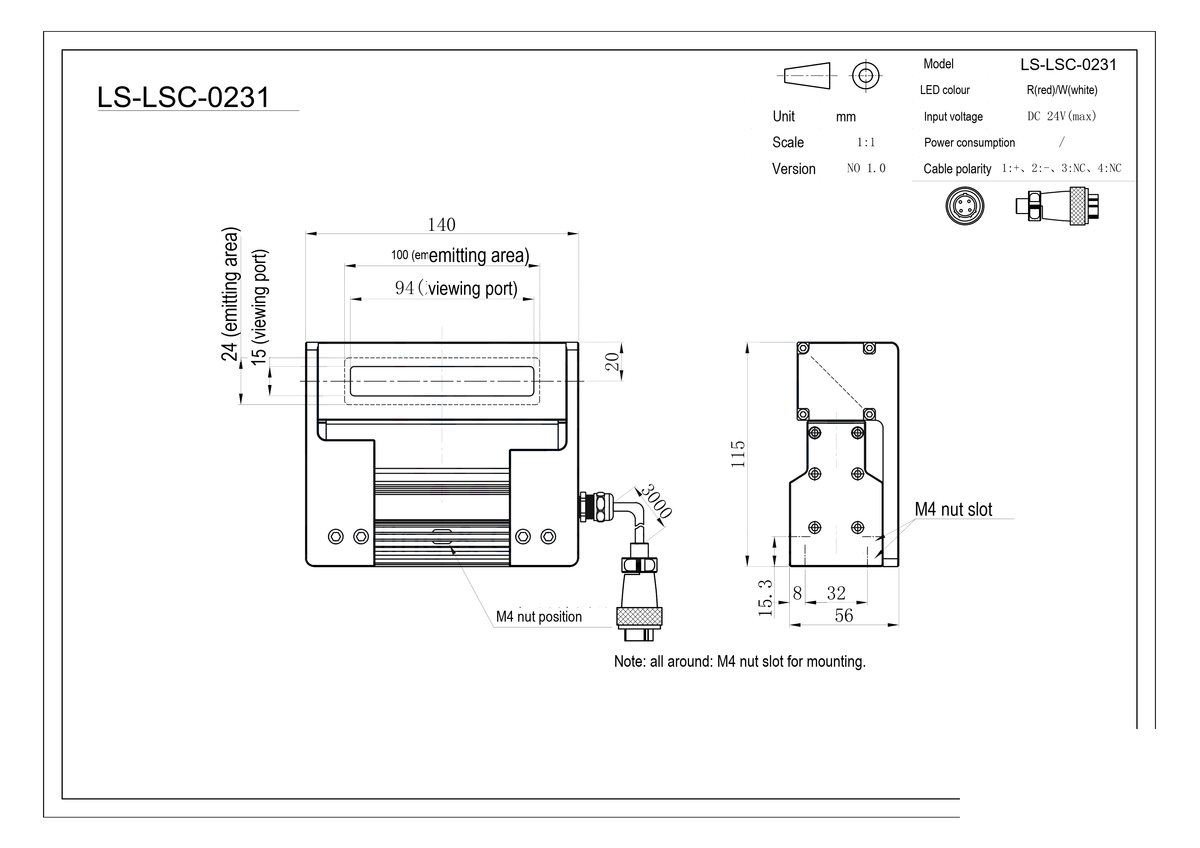

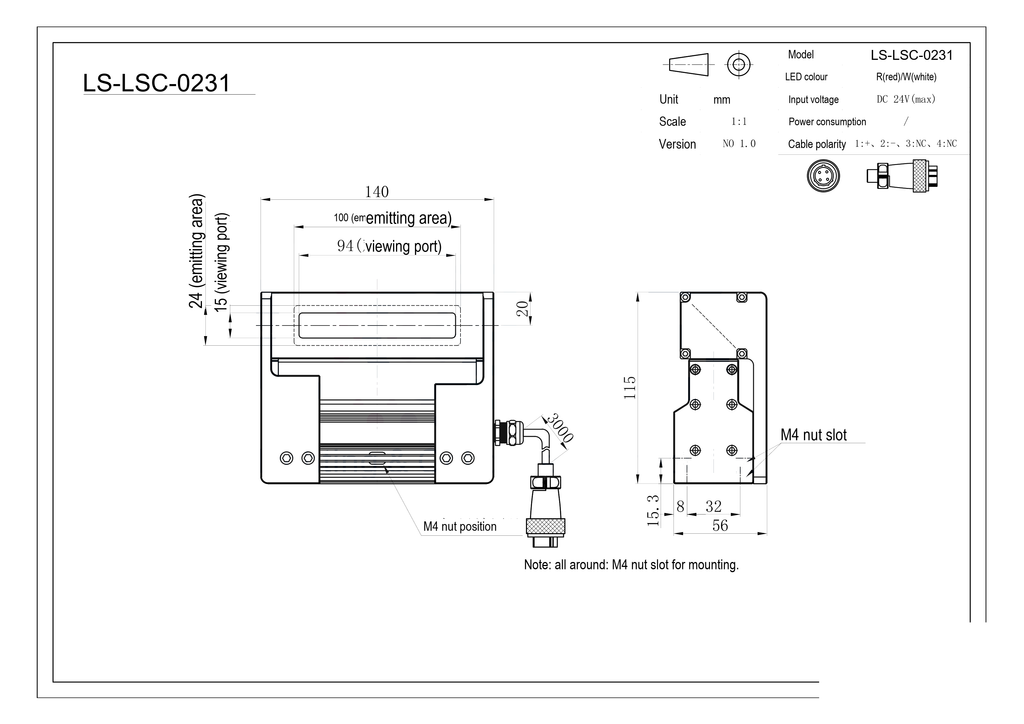

| Cable (mm) | 3000 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 100 x 24 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 18W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L140xW56xH115(mm) |
|---|---|
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 0.80 kg |
Other models in the Coaxial line scan light (LS-LSC-S25) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0232 | Red, Blue, Green, White · 200 x 24 mm | $849.00 | Ships in 2-3 weeks | View |
| LS-LSC-0233 | Red, Blue, Green, White · 300 x 24 mm | $1,119.00 | Ships in 2-3 weeks | View |
| LS-LSC-0234 | Red, Blue, Green, White · 400 x 24 mm | $1,389.00 | Ships in 2-3 weeks | View |
| LS-LSC-0235 | Red, Blue, Green, White · 500 x 24 mm | $1,659.00 | Ships in 2-3 weeks | View |
| LS-LSC-0236 | Red, Blue, Green, White · 600 x 24 mm | $1,929.00 | Ships in 2-3 weeks | View |
| LS-LSC-0237 | Red, Blue, Green, White · 700 x 24 mm | $2,199.00 | Ships in 2-3 weeks | View |
| LS-LSC-0238 | Red, Blue, Green, White · 800 x 24 mm | $2,469.00 | Ships in 2-3 weeks | View |
| LS-LSC-0239 | Red, Blue, Green, White · 900 x 24 mm | $2,739.00 | Ships in 2-3 weeks | View |
| LS-LSC-0240 | Red, Blue, Green, White · 1000 x 24 mm | $3,009.00 | Ships in 2-3 weeks | View |
