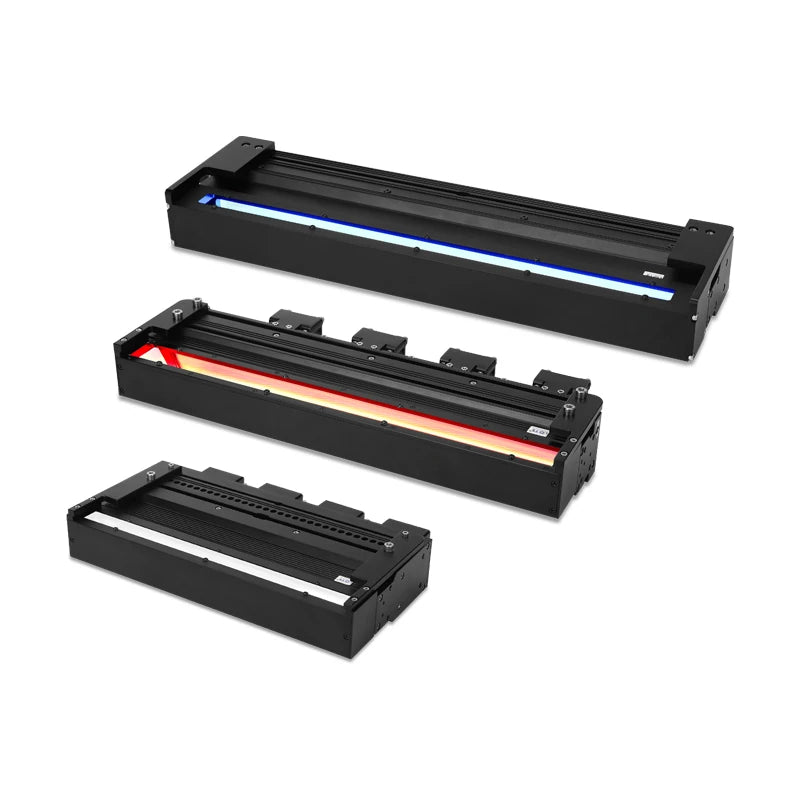

Representative photo of this series. Colour shown for illustration; the actual product may differ
Line scan lights
Coaxial line scan light, 640 x 157.1 x 58 mm (LS-LSC-0226)
Model LS-LSC-0226
- ColourRed, Blue, Green, White
- Emitting area600 x 24 mm
- SizeL640xW157.1xH58(mm)
- Voltage48V
- Power504W
$1,939.00
Ships in 2-3 weeks
3.15 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Special cylindrical condenser lens is adopted to gather high brightness LEDs into a high brightness linear light; optimal uniform light for shiny and reflective surfaces.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0226 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Viewport (camera hole) | 594 x 15 mm |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: FAN+, 4: FAN- |
|---|---|
| Cable (mm) | 3000 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 600 x 24 |
Electrical
| Voltage | 48V |
|---|---|
| Power | 504W |
Mechanical
| Dimension | L640xW157.1xH58(mm) |
|---|---|
| Mounting holes | 4 x M4 nut slots |
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 3.15 kg |
Other models in the Coaxial line scan light (LS-LSC-S24) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0221 | Red, Blue, Green, White · 100 x 24 mm | $579.00 | Ships in 2-3 weeks | View |
| LS-LSC-0222 | Red, Blue, Green, White · 200 x 24 mm | $849.00 | Ships in 2-3 weeks | View |
| LS-LSC-0223 | Red, Blue, Green, White · 300 x 24 mm | $1,119.00 | Ships in 2-3 weeks | View |
| LS-LSC-0224 | Red, Blue, Green, White · 400 x 24 mm | $1,399.00 | Ships in 2-3 weeks | View |
| LS-LSC-0225 | Red, Blue, Green, White · 500 x 24 mm | $1,669.00 | Ships in 2-3 weeks | View |
| LS-LSC-0227 | Red, Blue, Green, White · 700 x 24 mm | $2,209.00 | Ships in 2-3 weeks | View |
| LS-LSC-0228 | Red, Blue, Green, White · 800 x 24 mm | $2,489.00 | Ships in 2-3 weeks | View |
| LS-LSC-0229 | Red, Blue, Green, White · 900 x 24 mm | $2,759.00 | Ships in 2-3 weeks | View |
| LS-LSC-0230 | Red, Blue, Green, White · 1000 x 24 mm | $3,029.00 | Ships in 2-3 weeks | View |
