Water cooling line scan light (LS-LSC-S21)
  • Water cooling line scan light (LS-LSC-S21)

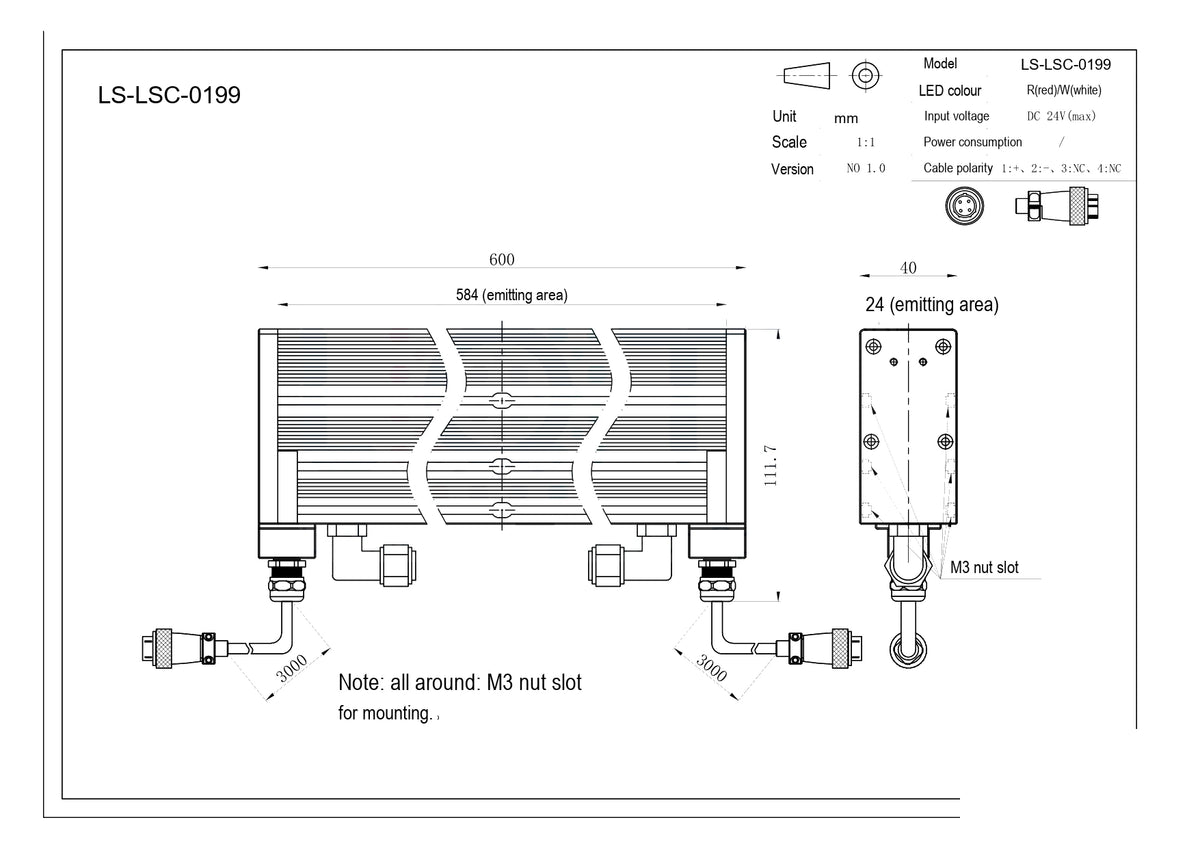

  • LS-LSC-0199 dimensions (mm)

Representative photo of this series

Line scan lights

Water cooling line scan light, 600 x 40 x 111.7 mm (LS-LSC-0199)

Model LS-LSC-0199

  • ColourRed, Blue, Green, White
  • Emitting area584 x 24 mm
  • SizeL600xW40xH111.7(mm)
  • Voltage48V
  • Power384W/461W
$1,819.00

Ships in 2-3 weeks

2.1 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Water cooling line scan light, 600 x 40 x 111.7 mm (LS-LSC-0199)LS-LSC-0199

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Adopted water cooling mechanism design, achieve ultra-bright, fanless and compact. Up to 2.5-5million Lx, used for fanless and silent environment. Best for dust-free room using.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSC-0199
CoolingWater Cooling
NoteUV & IR light can be customized as required.

Interfaces and I/O

Cable polarity1: +, 2: -, 3: NC, 4: NC
Cable (mm)3000 (drawing)

Light

LED colourR(red)/W(white)
Emitting surface (mm)584 x 24

Electrical

Voltage48V
Power384W/461W

Mechanical

DimensionL600xW40xH111.7(mm)
MountingM3 nut slots on all sides for mounting
Shipping weight2.10 kg

Other models in the Water cooling line scan light (LS-LSC-S21) series

See all 10 models
ModelSize / key dataPriceAvailabilityLink
LS-LSC-0194 Red, Blue, Green, White · 84 x 24 mm $459.00 Ships in 2-3 weeks View
LS-LSC-0195 Red, Blue, Green, White · 184 x 24 mm $739.00 Ships in 2-3 weeks View
LS-LSC-0196 Red, Blue, Green, White · 284 x 24 mm $1,009.00 Ships in 2-3 weeks View
LS-LSC-0197 Red, Blue, Green, White · 384 x 24 mm $1,279.00 Ships in 2-3 weeks View
LS-LSC-0198 Red, Blue, Green, White · 484 x 24 mm $1,549.00 Ships in 2-3 weeks View
LS-LSC-0200 Red, Blue, Green, White · 684 x 24 mm $2,089.00 Ships in 2-3 weeks View
LS-LSC-0201 Red, Blue, Green, White · 784 x 24 mm $2,359.00 Ships in 2-3 weeks View
LS-LSC-0202 Red, Blue, Green, White · 884 x 24 mm $2,629.00 Ships in 2-3 weeks View
LS-LSC-0203 Red, Blue, Green, White · 984 x 24 mm $2,899.00 Ships in 2-3 weeks View
