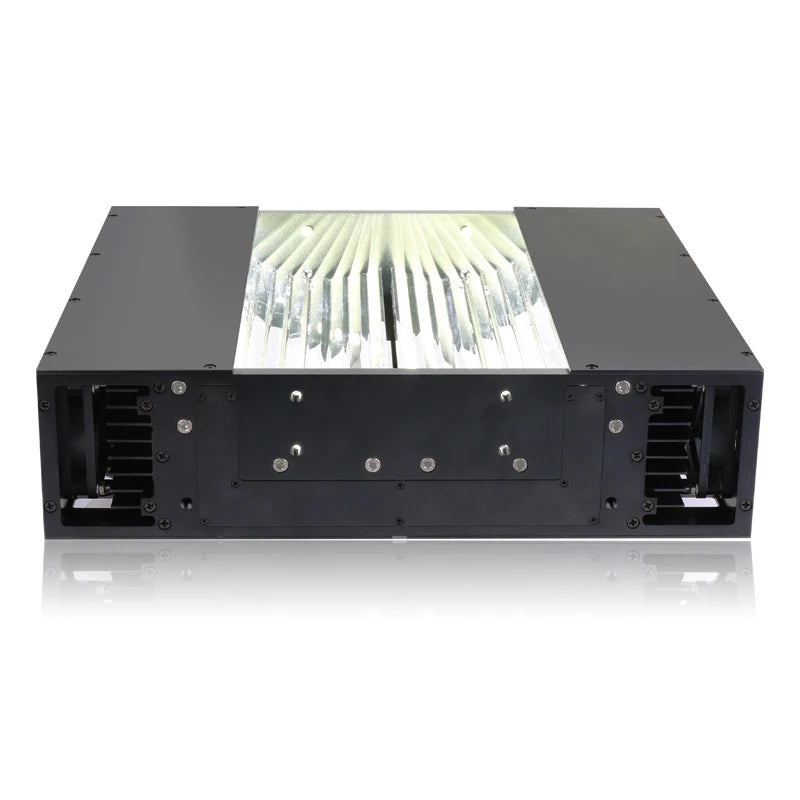

Representative photo of this series. Colour shown for illustration; the actual product may differ
Line scan lights
Multi-angle line scan light, 416 x 313 x 82 mm (LS-LSC-0189)
Model LS-LSC-0189
- ColourRed, Blue, Green, White
- Emitting area400 mm
- SizeL416xW313xH82(mm)
- Voltage24V
- Power384W
$1,369.00
Ships in 2-3 weeks
4.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Scratch inspected from multiple angle, multiple direction light path have strong direction, obvious contrast between scratch and background. Tunnel line scan light have good uniformity, so that the defect homogenization, to make the contrast between scratch and background is not obvious.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0189 |
|---|---|
| Cooling | Fan cooling |
| Note | UV & IR light can be customized as required. |
| Viewport (camera hole) | 6 mm |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: FAN+, 4: FAN- |
|---|---|

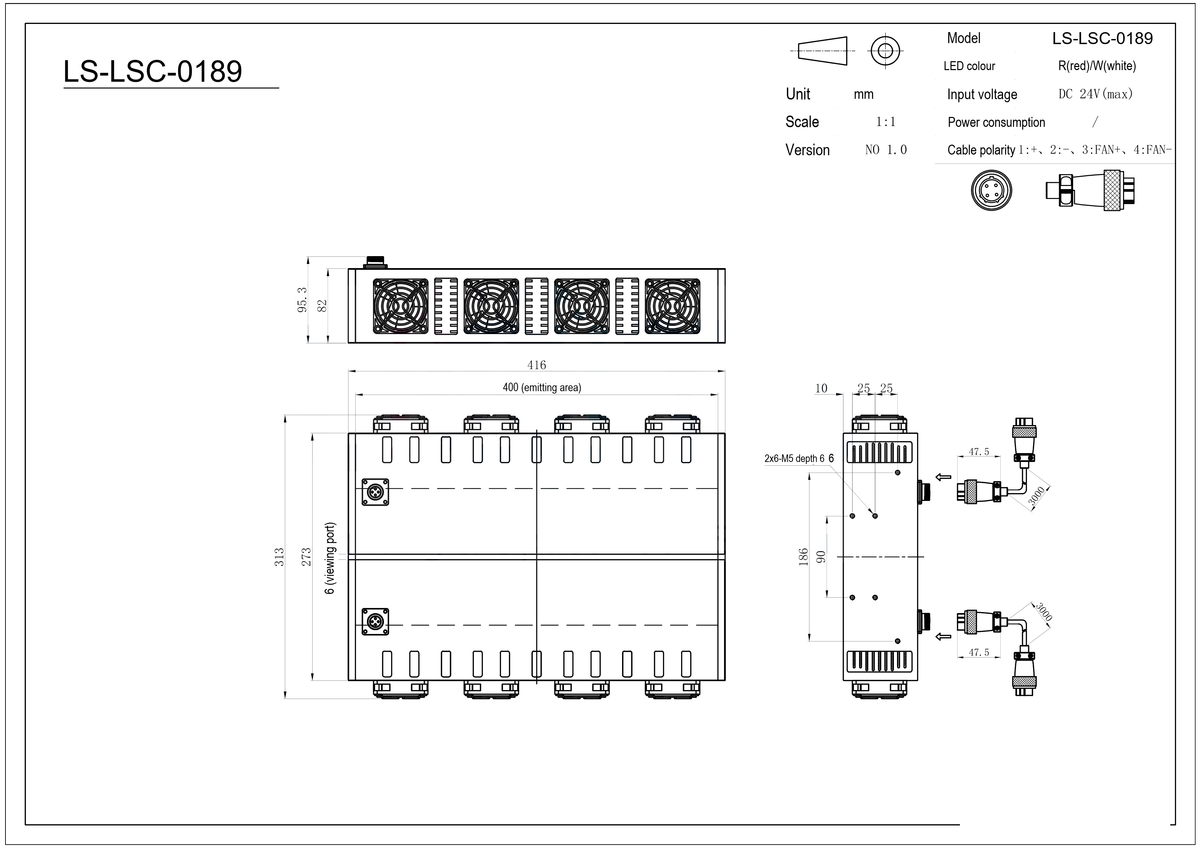

| Cable (mm) | 3000 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 400 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 384W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L416xW313xH82(mm) |
|---|---|
| Mounting holes | 2×6-M5 depth 6 |
| Shipping weight | 4.00 kg |
Other models in the Multi-angle line scan light (LS-LSC-S20) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0186 | Red, Blue, Green, White · 100 mm | $519.00 | Ships in 2-3 weeks | View |
| LS-LSC-0187 | Red, Blue, Green, White · 200 mm | $799.00 | Ships in 2-3 weeks | View |
| LS-LSC-0188 | Red, Blue, Green, White · 300 mm | $1,089.00 | Ships in 2-3 weeks | View |
| LS-LSC-0190 | Red, Blue, Green, White · 500 mm | $1,649.00 | Ships in 2-3 weeks | View |
| LS-LSC-0191 | Red, Blue, Green, White · 600 mm | $1,929.00 | Ships in 2-3 weeks | View |
| LS-LSC-0192 | Red, Blue, Green, White · 700 mm | $2,209.00 | Ships in 2-3 weeks | View |
| LS-LSC-0193 | Red, Blue, Green, White · 800 mm | $2,489.00 | Ships in 2-3 weeks | View |
