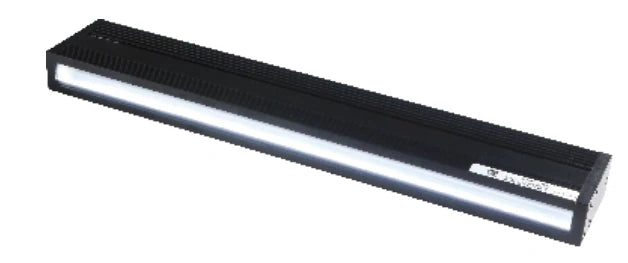

Representative photo of this series
Line scan lights
484 mm Compact line scan light, natural cooling (LS-LSC-0185)
Model LS-LSC-0185
- ColourRed, Green, Blue, White
- Voltage24 V / 48 V DC (by length)
- Power37.5 W
- CoolingNatural cooling
$1,499.00
Ships in 2-3 weeks
1.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Compact line scan light using high power SMD LEDs, only 30 mm wide with natural cooling; the standard model adds an optical film to improve uniformity. For applications with limited space and lower luminance requirements.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0185 |
|---|---|
| Cooling | Natural cooling |
| Cross-section (mm) | 30 W x 64 H |
| UV / IR | UV & IR light can be customized as required |
| FOV | 1-2700 mm |
| Variants | standard (no suffix) / -N high luminance (condensing) / -F high uniformity |
| Remark | Max 3 M customized |
Optics
| Recommended working distance | 10-300 mm |
|---|
Interfaces and I/O
| Cable | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (flexible, bend and heat resistant, for use inside equipment); high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Peak wavelength / colour temperature | Red 620-630 nm, Green 525-530 nm, Blue 465-470 nm, White 6600 K (colour temperature) |
|---|---|
| Emitting width (mm) | 17 |
| Emitting length range (mm) | 84-2984 |
| Emitting length B (mm) | 484 |
Environment and compliance
| Operating environment | Temperature 0-50 °C, humidity 20-85% (non-condensing) |
|---|---|
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V / 48 V DC (by length) |
|---|---|
| Adapted controller | High power constant current controller LS-CTL-S03; high power constant voltage controller LS-CTL-S57 |
| Voltage (V) | 24 |
| Power (W) | 37.5 |

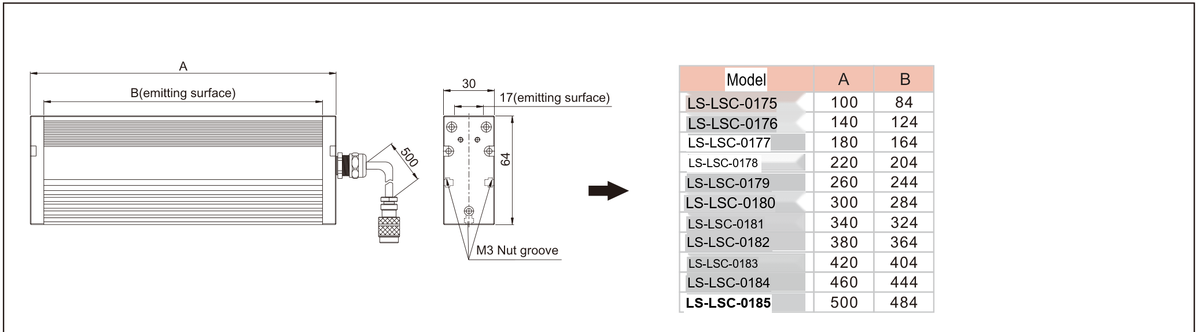

Mechanical
| Mounting | M3 nut groove; mounting plate with M3 screws |
|---|---|
| Installation | 1) underside locked to the device through the mounting plate by M3 screws; 2) on the flank, M3 screws go through the mounting plate into M3 nuts in the screw groove |
| Overall length A (mm) | 500 |
| Weight (g) | 1340 |
Other models in the Compact line scan light, natural cooling (LS-LSC-S19) series
See all 11 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0175 | 84 mm | $419.00 | Ships in 2-3 weeks | View |
| LS-LSC-0176 | 124 mm | $529.00 | Ships in 2-3 weeks | View |
| LS-LSC-0177 | 164 mm | $639.00 | Ships in 2-3 weeks | View |
| LS-LSC-0178 | 204 mm | $749.00 | Ships in 2-3 weeks | View |
| LS-LSC-0179 | 244 mm | $859.00 | Ships in 2-3 weeks | View |
| LS-LSC-0180 | 284 mm | $959.00 | Ships in 2-3 weeks | View |
| LS-LSC-0181 | 324 mm | $1,069.00 | Ships in 2-3 weeks | View |
| LS-LSC-0182 | 364 mm | $1,179.00 | Ships in 2-3 weeks | View |
| LS-LSC-0183 | 404 mm | $1,289.00 | Ships in 2-3 weeks | View |
| LS-LSC-0184 | 444 mm | $1,399.00 | Ships in 2-3 weeks | View |
