Line scan lights

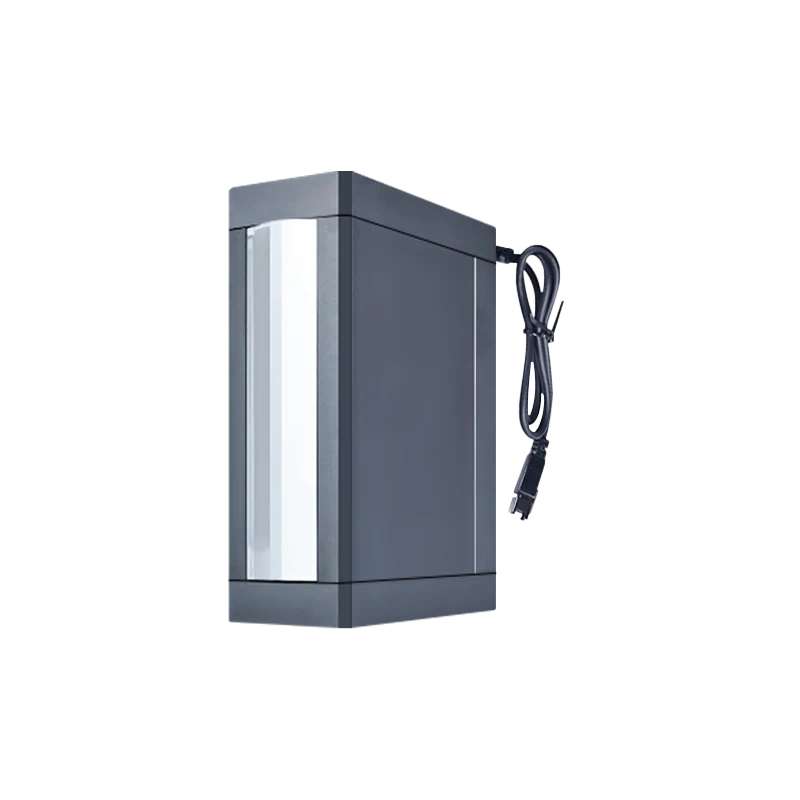

70 x 6 mm Mini line scan light 3.0 (LS-LSC-0143)
Model LS-LSC-0143
- ColourRed, White, Blue
- Power1.8W
- Wavelength6000-6500K
- Connector3-pin flat
$369.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LED line scan light source is suitable for connector PIN positioning detection, hardware scratches and surface defects detection, computer screen size detection, etc
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0143 |
|---|---|
| High | 25mm |
| Plug specification | Default 3PIN2 pin interface |
| Product Type | Mini Line scan light |
| Service life | When the environment is 25℃, the white color works continuously for 30000 hours with 50% illumination, and the attenuation is 50% |
Light
| Color | W/R/B |
|---|---|

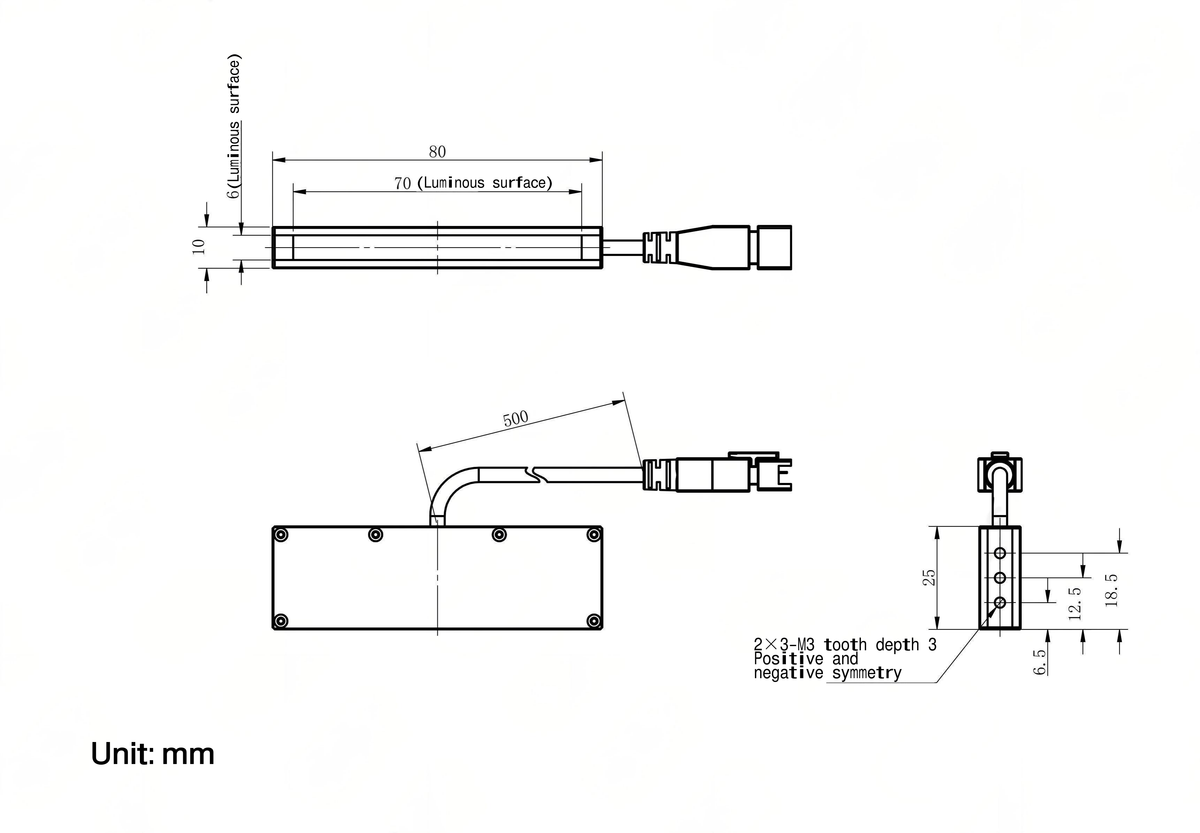

| Luminous surface size | 70*6mm |
| LED type | SMD |
| Colors | red/white/blue |
| Color temperature/wavelength | 6000-6500K |
Environment and compliance
| Storage environment | Temperature : -20-60℃ ; Humidity : 20-85%RH(Non-condensing) |
|---|---|
| Operating environment | Temperature : 0-40℃ ; Humidity : 20-85%RH(Non-condensing) |
Electrical
| Power (W) | 1.8W |
|---|
Mechanical
| Length (outer diameter) | 80mm |
|---|---|
| Width (inner diameter) | 10mm |
| Shipping weight | 0.50 kg |
Other models in the Mini line scan light 3.0 (LS-LSC-S16) series
See all 11 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0144 | 64 x 16 mm | $349.00 | Ships in 2-3 weeks | View |
| LS-LSC-0145 | 104 x 16 mm | $479.00 | Ships in 2-3 weeks | View |
| LS-LSC-0146 | 124 x 16 mm | $529.00 | Ships in 2-3 weeks | View |
| LS-LSC-0147 | 160 x 6 mm | $629.00 | Ships in 2-3 weeks | View |
| LS-LSC-0148 | 174 x 16 mm | $659.00 | Ships in 2-3 weeks | View |
| LS-LSC-0149 | 190 x 6 mm | $709.00 | Ships in 2-3 weeks | View |
| LS-LSC-0150 | 214 x 16 mm | $769.00 | Ships in 2-3 weeks | View |
| LS-LSC-0152 | 264 x 16 mm | $909.00 | Ships in 2-3 weeks | View |
| LS-LSC-0151 | 270 x 6 mm | $919.00 | Ships in 2-3 weeks | View |
| LS-LSC-0153 | 364 x 16 mm | $1,179.00 | Ships in 2-3 weeks | View |
