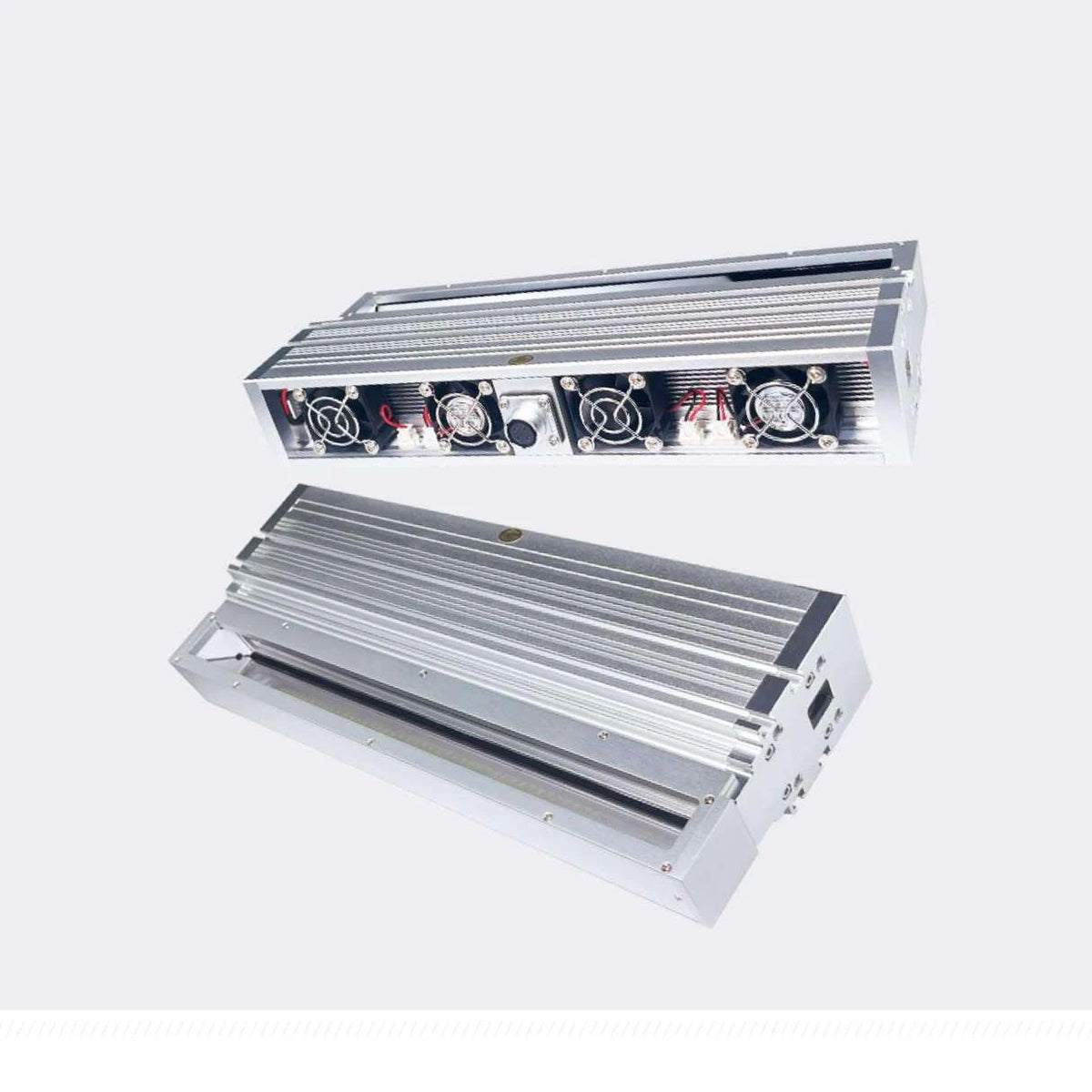

Representative photo of this series
Line scan lights
300 x 22 mm Coaxial line scan light (LS-LSC-0115)
Model LS-LSC-0115
- ColourRed, Blue, White
- Voltage24 V
- ConnectorWS16 4-pin
- Luminous width22 mm
$1,029.00
Ships in 2-3 weeks
2.8 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial line scan light (coaxial line light source) for line scan cameras, fan cooled, luminous lengths 75 to 525 mm (22 mm wide), 24 V.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0115 |
|---|---|

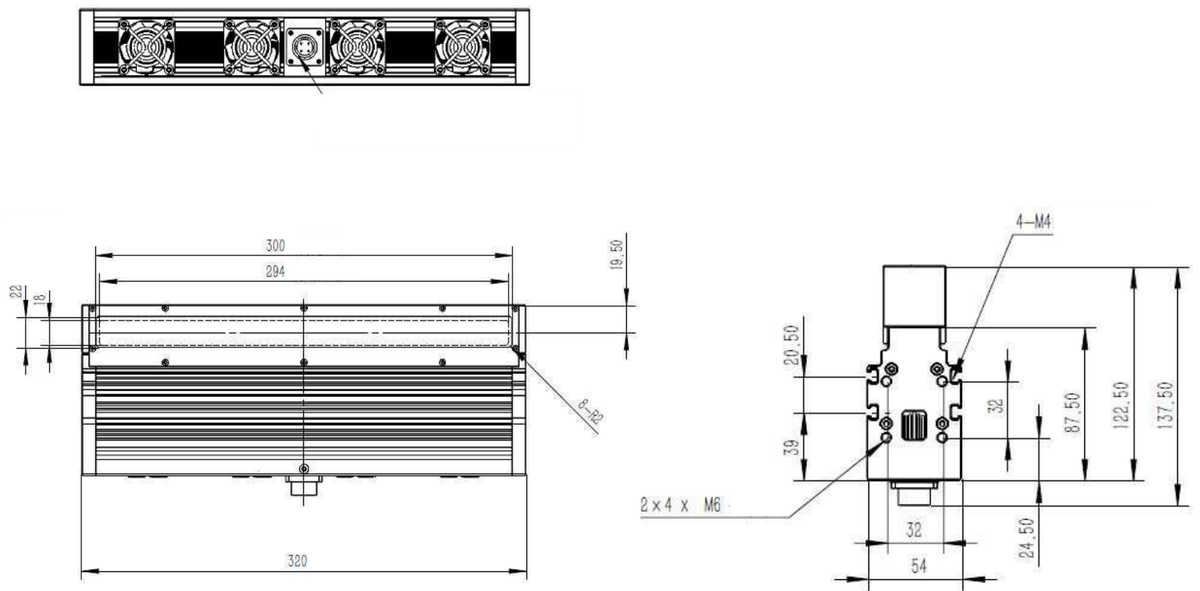

| Cross-section | 54 x 137.5 mm |
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |
| Long (mm) | 320 |
| Wide (mm) | 54 |
| High (mm) | 137.5 |
| Plug specification | WS16 aviation plug 4-core |
Light
| Luminous width | 22 mm |
|---|---|
| Luminous size (mm) | 300x22 |
| Wavelength red | 620-630 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power cord | Selective assembly (optional) |
|---|---|
| Power tolerance | actual product power within ±10% of the table is the normal range |
| Voltage (V) | 24 |
| Power red (W) | 80 |
| Power blue/white (W) | 124 |
Mechanical
| Weight (kg) | 2.3 |
|---|
Other models in the Coaxial line scan light (LS-LSC-S14) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0112 | 75 x 22 mm | $399.00 | Ships in 2-3 weeks | View |
| LS-LSC-0113 | 150 x 22 mm | $609.00 | Ships in 2-3 weeks | View |
| LS-LSC-0114 | 225 x 22 mm | $819.00 | Ships in 2-3 weeks | View |
| LS-LSC-0116 | 375 x 22 mm | $1,239.00 | Ships in 2-3 weeks | View |
| LS-LSC-0117 | 450 x 22 mm | $1,449.00 | Ships in 2-3 weeks | View |
| LS-LSC-0118 | 525 x 22 mm | $1,659.00 | Ships in 2-3 weeks | View |
