Small tunnel line scan light (LS-LSC-S11)
  • Small tunnel line scan light (LS-LSC-S11)

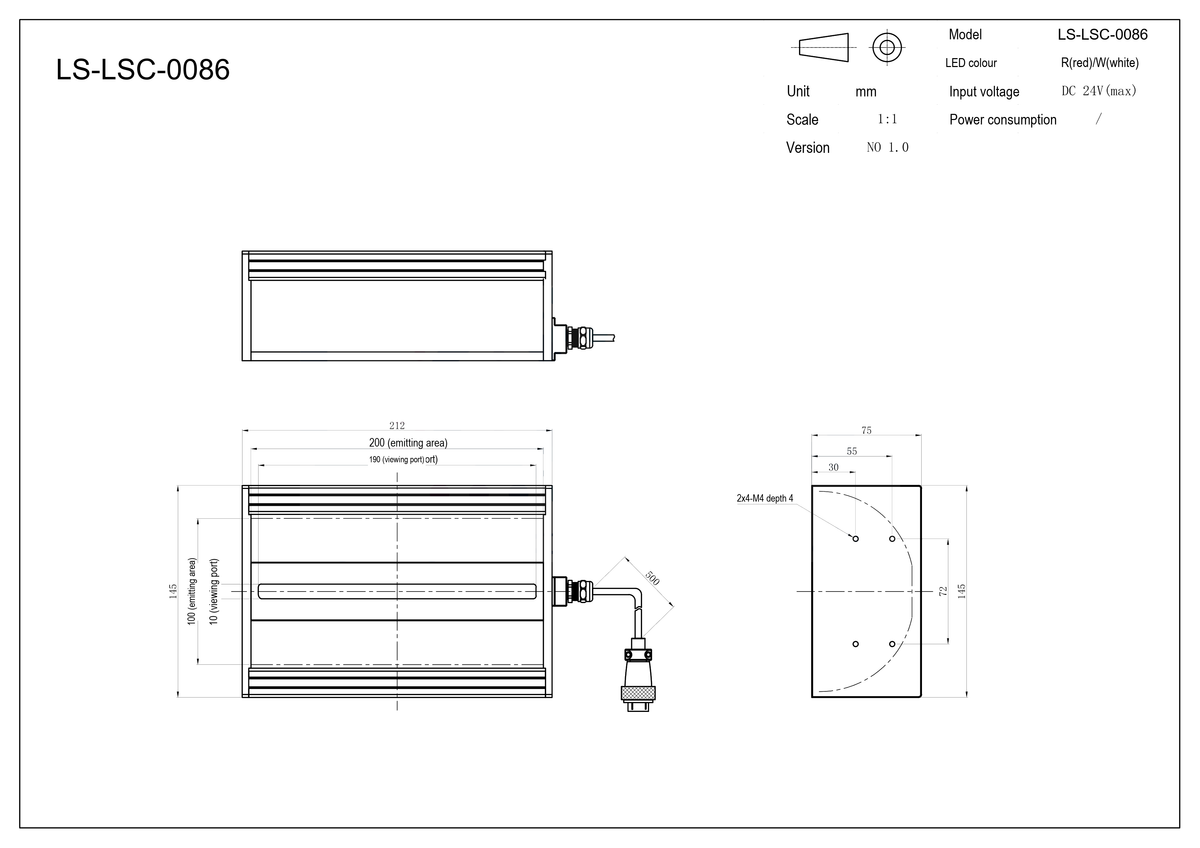

  • LS-LSC-0086 dimensions (mm)

Representative photo of this series

Line scan lights

Small tunnel line scan light, 212 x 145 x 75 mm (LS-LSC-0086)

Model LS-LSC-0086

  • ColourRed, Blue, Green, White
  • Emitting area200 x 100 mm
  • SizeL212xW145xH75(mm)
  • Voltage24V
  • Power44W
$779.00

Ships in 2-3 weeks

1.35 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Small tunnel line scan light, 212 x 145 x 75 mm (LS-LSC-0086)LS-LSC-0086

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Compact size, light weight, illuminance up to 200,000 LX. Uses high-efficiency LED, which emits evenly diffused light onto the arch shape. Can eliminate shadows caused by workpiece unevenness, helping improve overall imaging uniformity.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSC-0086
CoolingNatural cooling
NoteUV & IR light can be customized as required.
Viewport (camera hole)190 x 10 mm

Interfaces and I/O

Cable (mm)500 (drawing)

Light

LED colourR(red)/W(white)
Emitting surface (mm)200 x 100

Electrical

Voltage24V
Power44W
Input voltageDC 24V (max)

Mechanical

DimensionL212xW145xH75(mm)
Mounting holes2×4-M4 depth 4
Shipping weight1.35 kg
