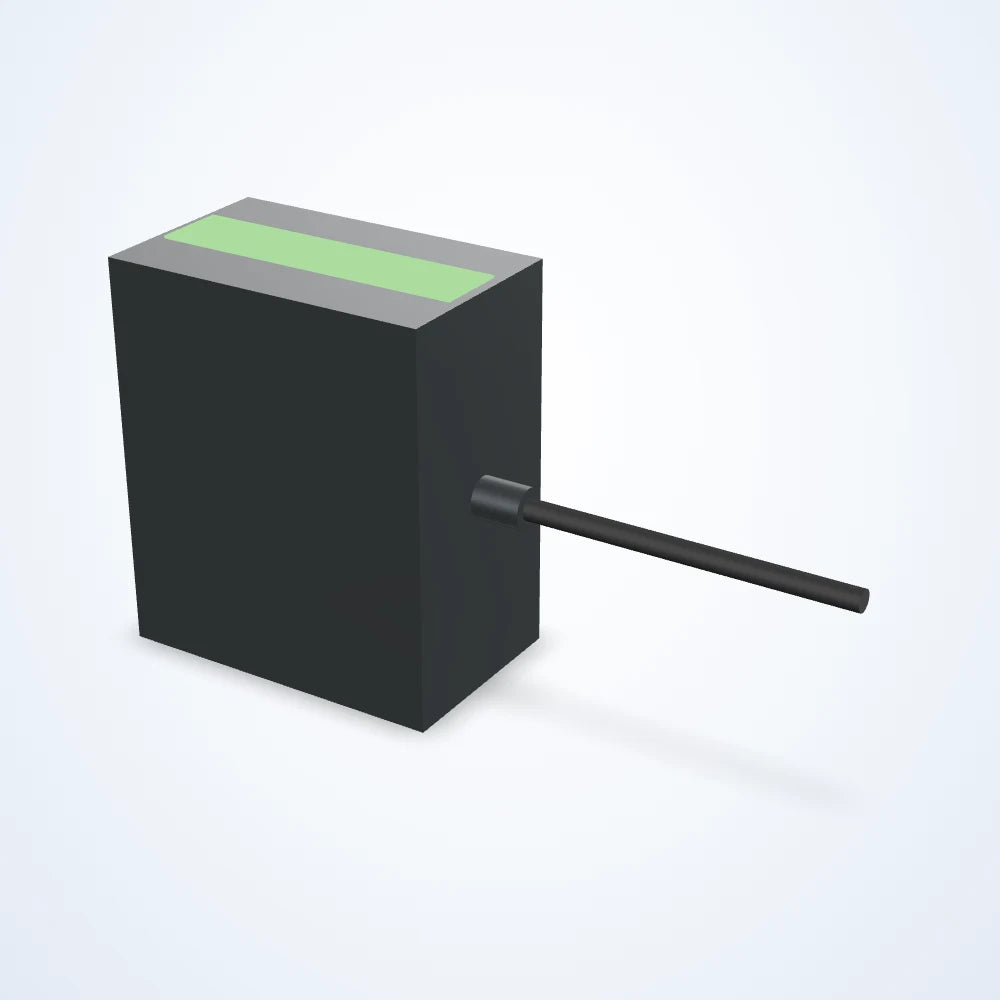

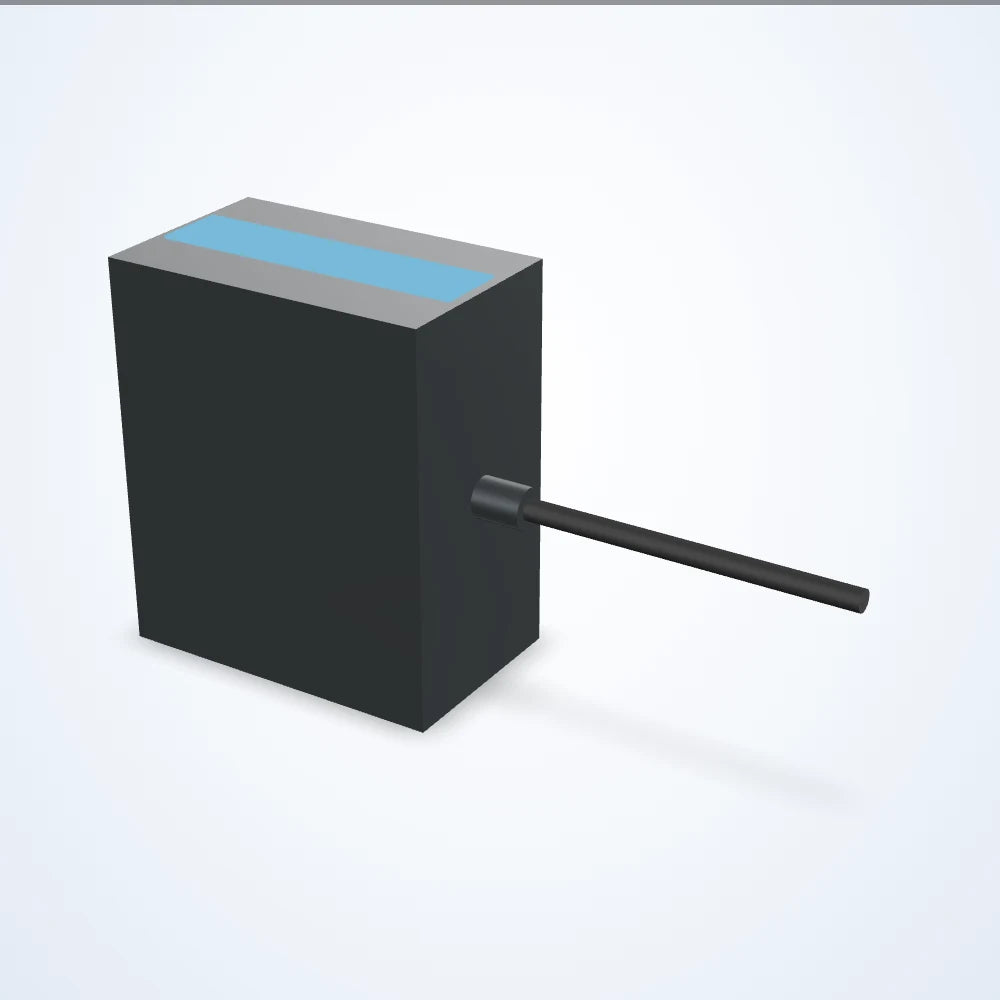

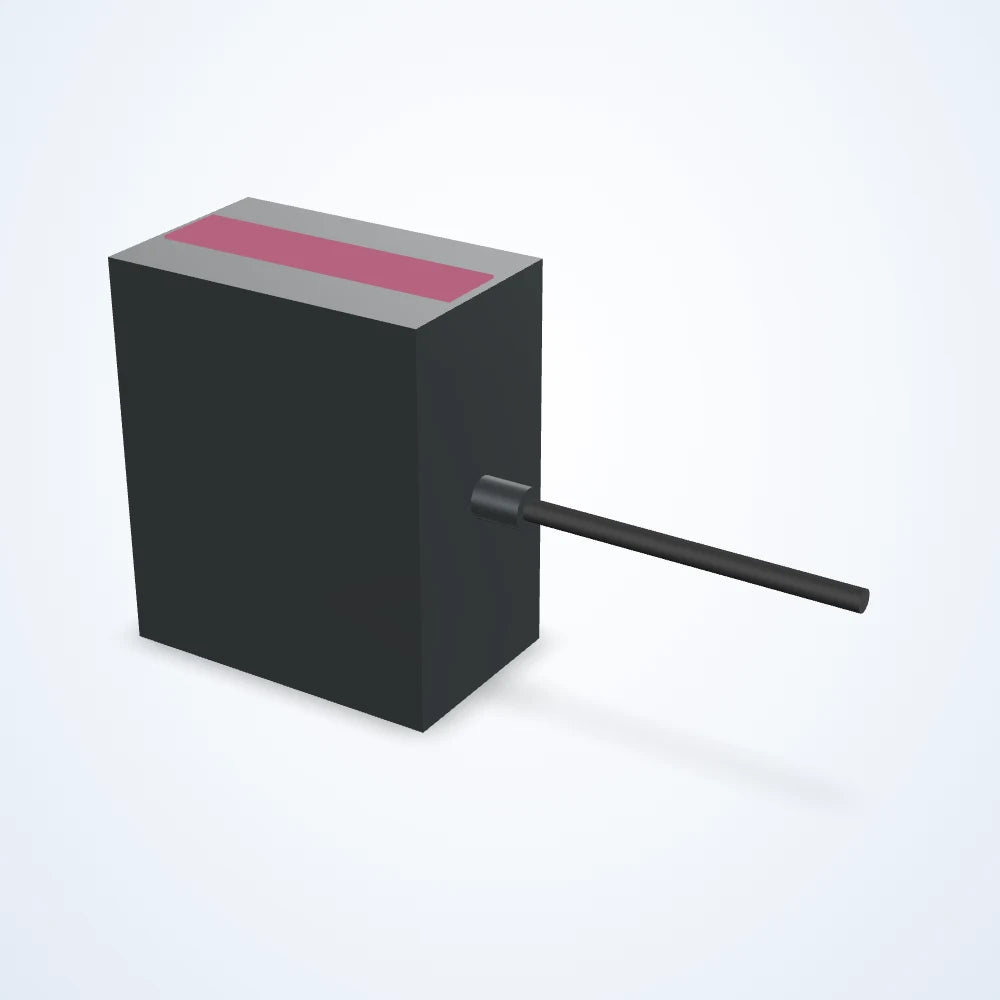

Rendered illustration: the actual product may differ in appearance.
Line scan lights
Line scan light, 76.2-2438 mm lit length (LS-LSC-0001)
Model LS-LSC-0001
- ColourWhite, Red, Green, Infrared, Blue
- Voltage24 VDC
- Wavelength850 nm
- Lit width25.4 mm
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 404 available
Configuration LS-LSC-0001-001 $819.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
High-intensity line light for line scan cameras on moving webs and conveyors. 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, lit length, length, collimated below (404 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0001 |
|---|---|
| Connection at light | Hardwired |
| Driver included | No Driver Required |
| Driver location | No Driver |
| Intensity control | Analog Voltage |
| Operating modes | Constant On |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | Constant On Only |
| Maximum constant on current (mA) | 375 to 12000 (by configuration) |
| Maximum input power constant on (W) | 9 to 288 (by configuration) |
Mechanical
| Lit width (mm) | 25.4 |
|---|---|
| Width (mm) | 50.2 |
| Height (mm) | 93.9 to 115.5 (by configuration) |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
LS-LSC-0001
See this component from every angle.
Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Lit width (mm)
- 25.4
- Width (mm)
- 50.2
- Height (mm)
- 93.9 to 115.5 (by configuration)
- Voltage
- 24 VDC
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
