Line scan cameras

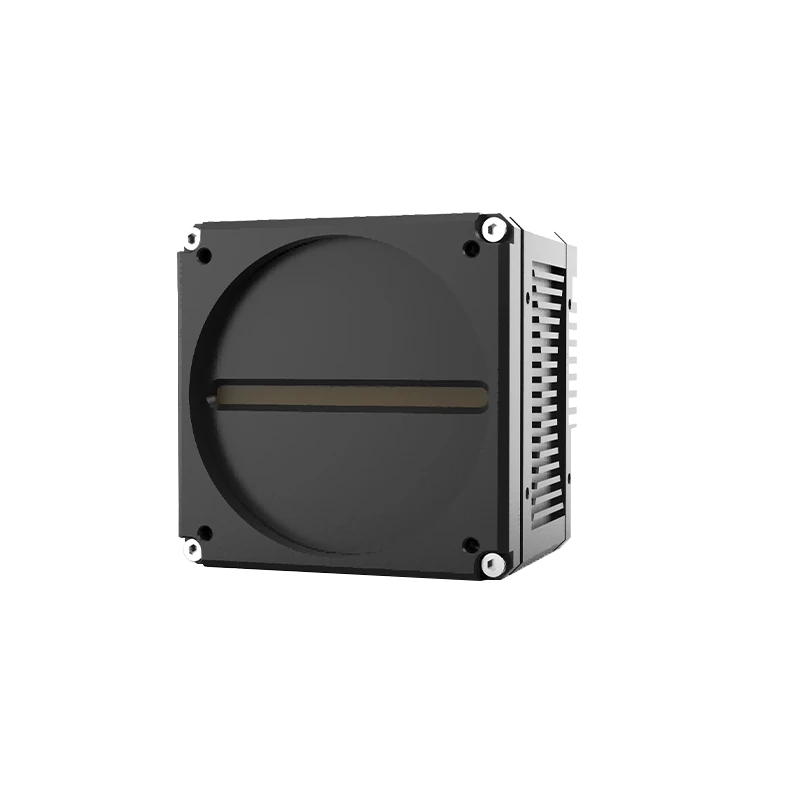

10 GigE line scan camera, general series, 8K, 10GigE, Color, 8192×3(RGB) resolution (LS-LCM-0066)
Model LS-LCM-0066
- Resolution8192×3(RGB)
- SensorCMOS
- Lens mountM72
- Pixel size7μm
$1,439.00
Ships in 2-3 weeks
1.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
10GigE 8K line scan industrial cameras launched to meet the demand for higher resolution and line rate in high-speed, high-precision visual inspection. Widely used in printing, textile, railway, logistics, metallurgy, food, pharmaceutical and material sorting.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LCM-0066 |
|---|---|
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Driver | Directshow component Halcon special component Labview special driver OCX component TWAIN component |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Transmission mode | GigE Vision V1.2, GenICam |
| Filter | Black and white cameras: double-sided AR antireflection film as standard; color cameras: 650nm infrared cut filter as standard |
| Line frequency | 50KHz |
| Imaging mode | Supports multiple exposure and 2Line TDI |
| Mirror image | Software image: left and right, up and down hardware image: up and down |
| Frame buffer | 1GB |
| User EEPROM | 2KB |
| Programming language packages | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Data format | Mono/RGB |
| Line frequency (detail) | Color: 50k; Mono: 106k (8bit) / 70k (12bit) |
| TDI (detail) | Mono: 2TDI |
Sensor and imaging
| Resolution | 8192×3(RGB) |
|---|---|
| Sensor | 8K |
| Shutter | Rolling |
| Pixel size | 7μm |
| Minimal exposure | 0.004ms |
| Resolution | Color:8192×3(RGB) Mono:8192×2 |
| Dynamic range | 65dB |
| SNR | 41.5dB |
| Pixel output width | 8bits |
| Maximum gain | 4 |
| Exposure time range | 0.004~50ms |
| Binning | Software Bin2 Bin4 Sun2 Sun4 |
| Effective pixel | 8192×3(RGB) |
| Sensor type | CMOS |
| Shutter mode | Global |
| Minimum exposure | 0.004ms |
| Resolution ratio | Mono: 8192×2; Color: 8192×3 (RGB) |
| Sensor size | 57.344mm (photosensitive area) |
| Pixel size (detail) | 7μm×7μm |
Interfaces and I/O
| Transmission interface | 10 Gigabit network port (10 gigabit copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G) |
|---|---|
| Data interface | 10G copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G |
| Connector | 10 GigE |
| Video output format & Maximum line frequency | Color:Bayer 8bit:50K Mono: Mono8 bit:106k Mono 12bit:70k |
| I/O | 2 differential RS422 inputs,1 optocoupler input, 2 optocoupler output |
| Video standard protocol | GigE Vision V1.2,GenICam |
| Lens interface | M72×0.75, flange distance 12mm |
Light
| Color | Color |
|---|---|
| Color specification | Mono/Color |
| Mono / colour | Color |
Environment and compliance
| Working temperature | 0~50℃ |
|---|---|
| Working humidity | 20~80% (without condensation) |
| Storage temperature | -30~60℃ |
| Storage humidity | 20~95% (without condensation) |
| Operating temperature | 0~50° |
| Operating humidity | 20~80% (no condensation) |
Computing
| Operating system | WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system |
|---|---|
| Drive program | Directshow component Halcon special component Labview special drive OCX component TWAIN component |
Electrical
| Power supply | 12V±10% (LS-LCM-0066-0071); 12V~24V (±10%) (LS-LCM-0072-0074) |
|---|---|
| Trigger mode | Continuous/software trigger/frame trigger/line trigger/conditional line trigger |
| Power | Color: <15W Mono:<10W |
| Power consumption | Color <15W; Mono <10W |
| Voltage | 12V±10% |
Mechanical
| AD width | 12bit (refers to the width supported by sensor) |
|---|---|
| Data bit width | 10bit (width of data output by camera to user) |
| Target size | 57.344mm |
| Lens mount | M72, Flange distance 12mm |

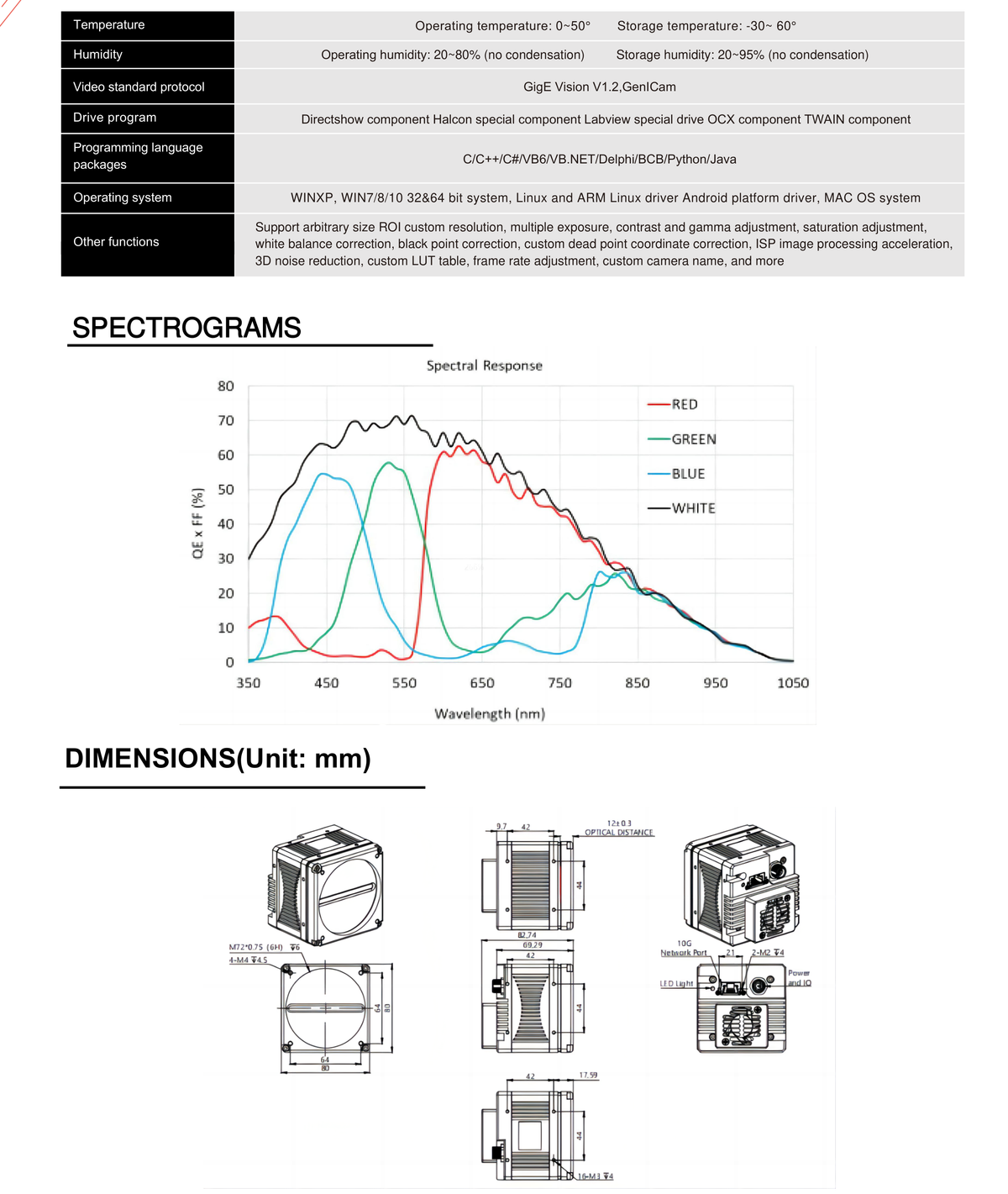

| Dimension | 80x80x69.29mm (excluding lens holder and rear shell interface) |
| Weight | <1000g |
| Exterior dimensions | 80×80×69.29mm (excluding lens holder and rear shell interface) |
