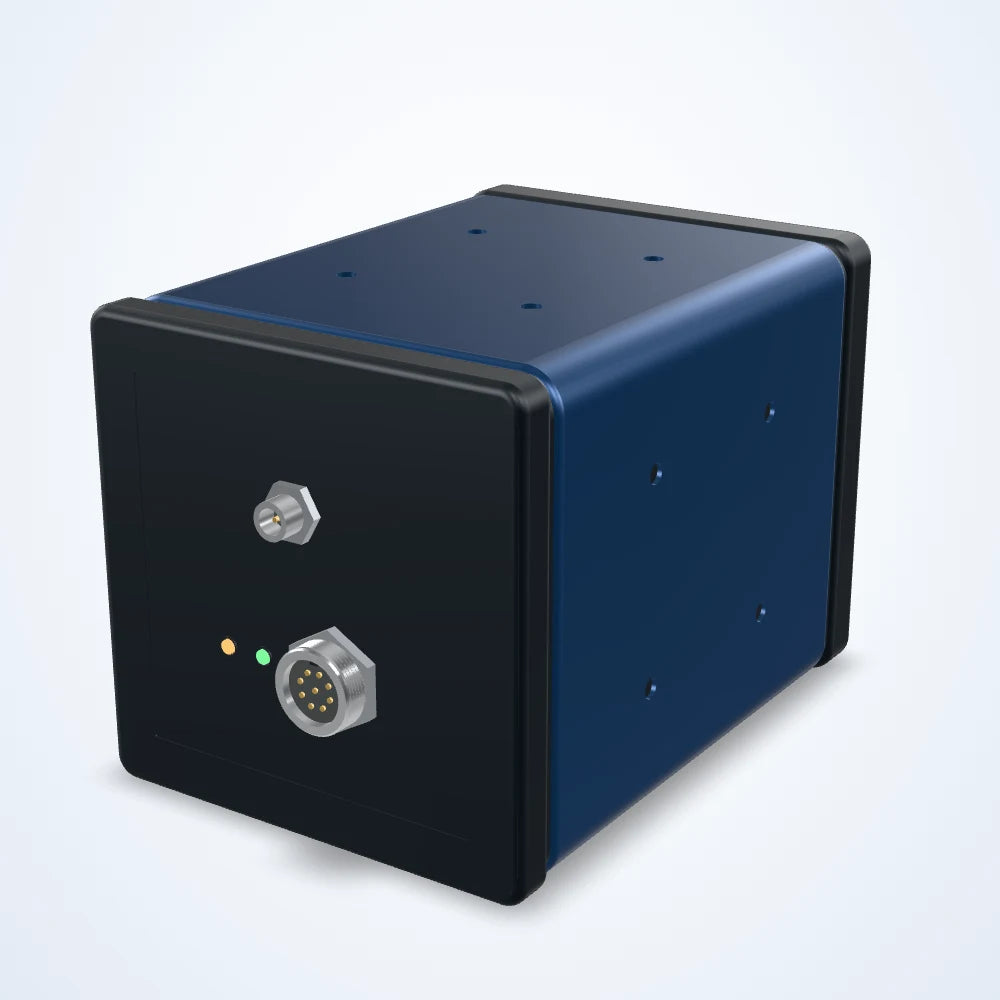

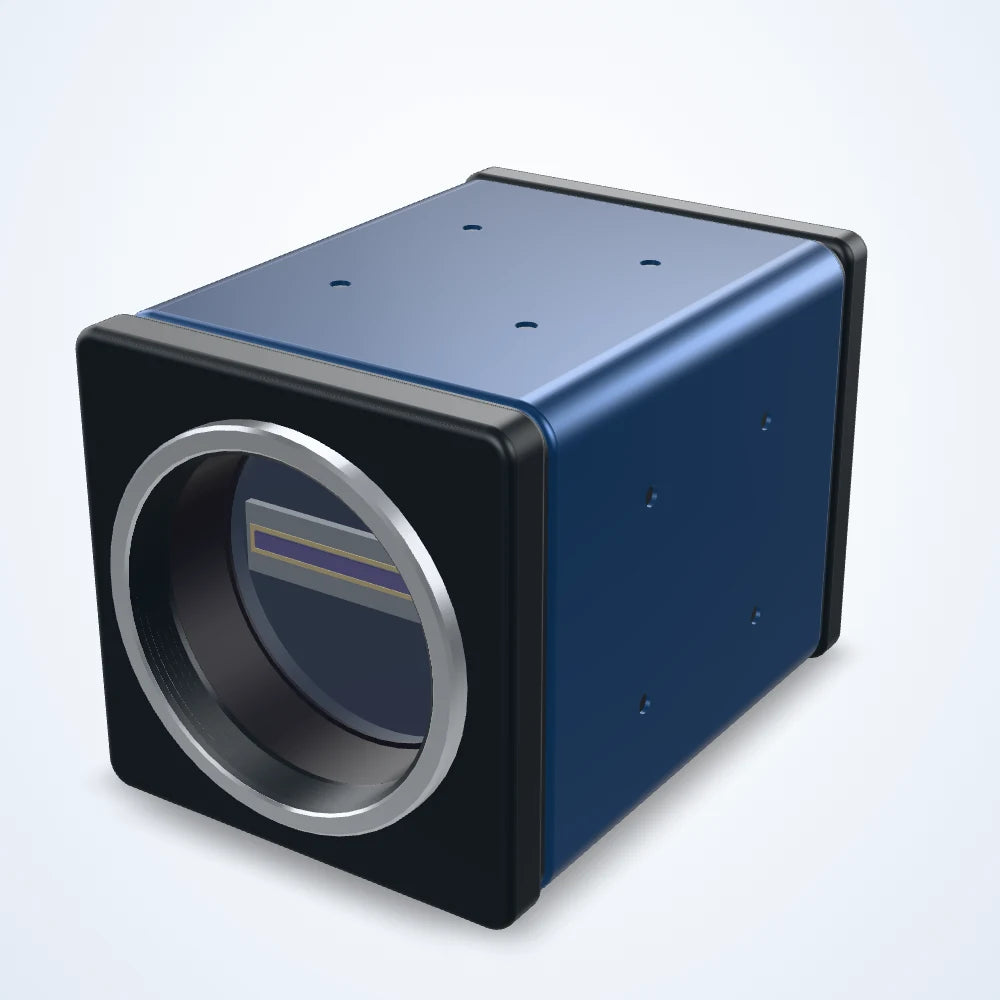

Rendered illustration: the actual product may differ in appearance.

Line scan cameras

4K UV CoaXPress line scan camera, 5 μm, 250 kHz, TDI, M42, NIR 256-TDI (LS-LCM-0059)

Model LS-LCM-0059

Resolution4096×256
Sensor20.48 mm
InterfaceCameraLink/CXP-6
Speed200-250 kHz
Lens mountM42
Pixel size5 μm

$4,500.00

Ships in 3-4 weeks

0.8 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Line scan camera for continuous web, roll and conveyor inspection. 4096 x 256 pixels of 5 μm; line rate up to 250 kHz; CoaXPress interface; M42 lens mount.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LCM-0059
TDI stages	256-TDI
Spectral range	0.4-1um

Sensor and imaging

Resolution	4096×256
Max. line rate	200-250 kHz
Pixel size	5 μm
Shutter	Global
Sensor size	20.48 mm
Exposure time	4 μs-1s
Pixel bit depth	8/10/12 bit

Interfaces and I/O

Data interface	CameraLink/CXP-6

Environment and compliance

Operating temperature	-20~75 °C (Storage), 0~55°C ( Operating )

Electrical

Power supply	DC12-24 V(±10%) 1.0A

Mechanical

Lens mount	M42

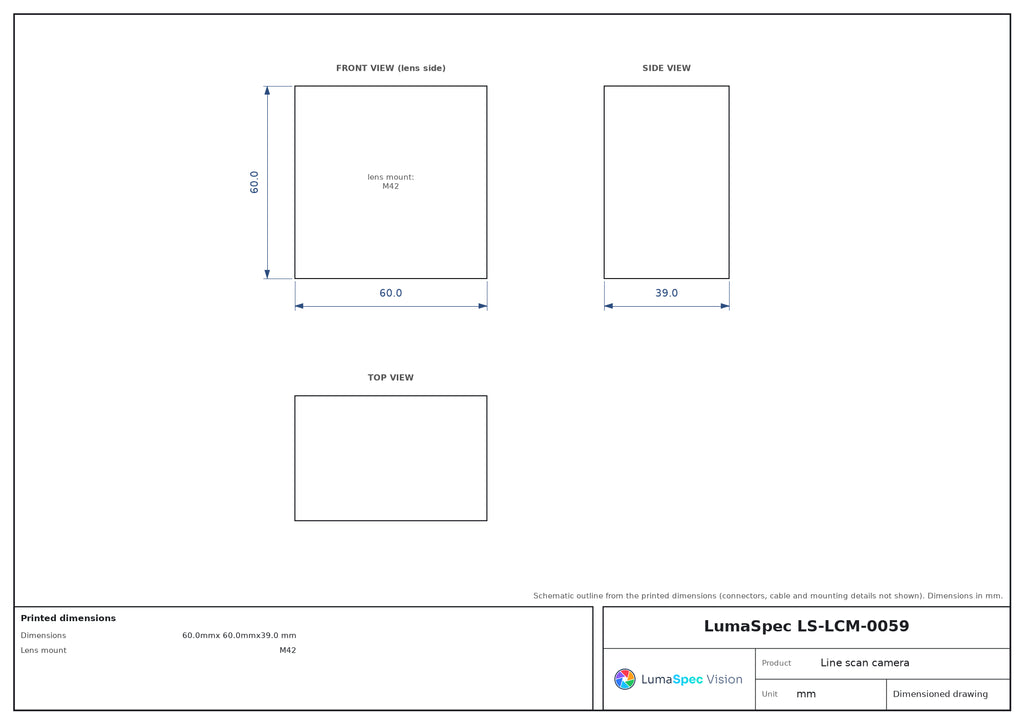

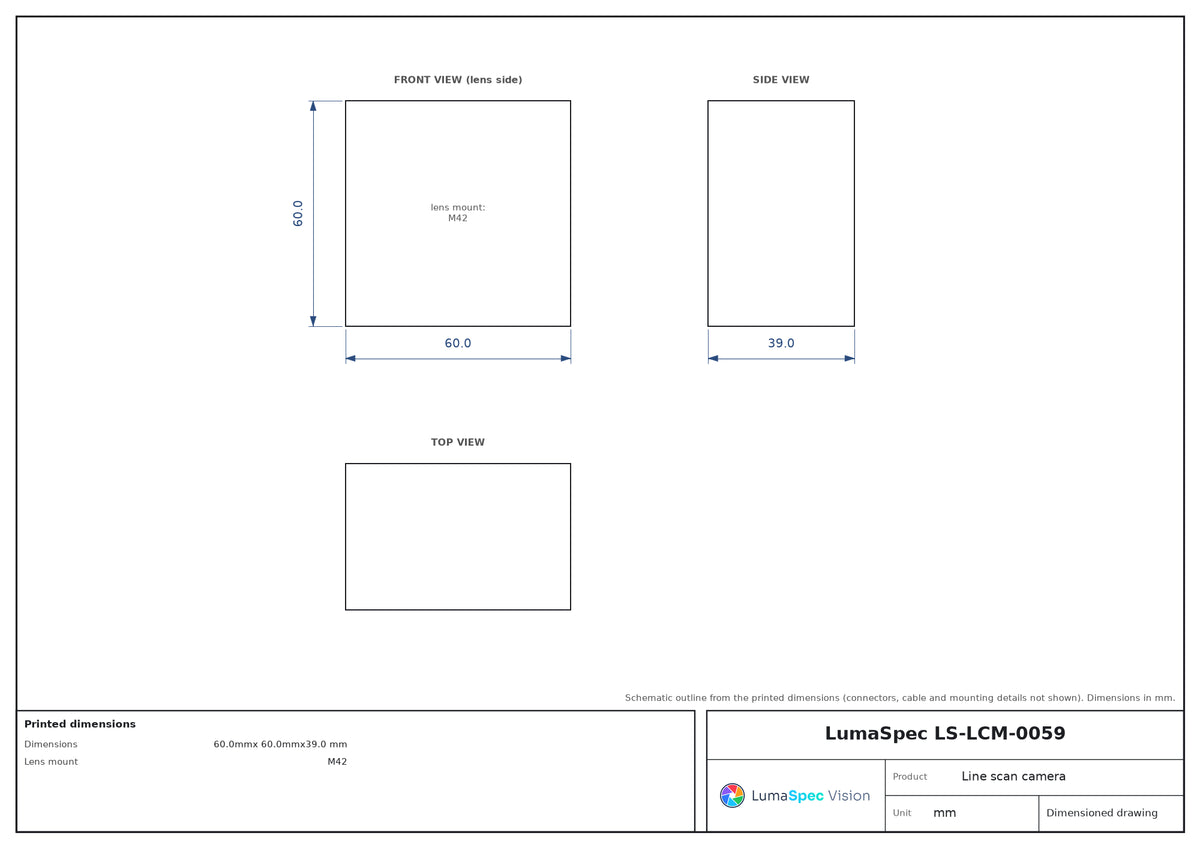

Dimensions	60.0mmx 60.0mmx39.0 mm
Shipping weight	0.80 kg
