Lighting accessories

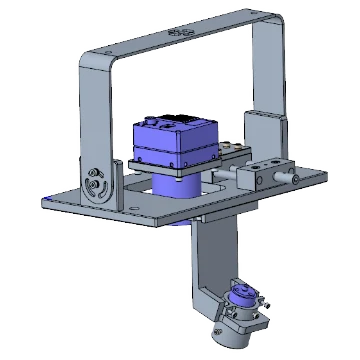

Mounting and adjustment accessories, for use with 50 W 808 nm PL laser light (LS-LAC-0062)
Model LS-LAC-0062
- Camera type supportedIndustrial line-scan camera
- Supported light typesseries laser light
- Installation methodBracket mounting, Base-plate mounting
- Shell materialAluminum alloy
$299.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
2.45 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Mounting and adjustment accessories, for use with 50 W 808 nm PL laser light. Adjustable laser lens rotation direction Supports mounting and orientation adjustment of industrial line-scan cameras
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LAC-0062 |
|---|---|
| Camera type supported | Industrial line-scan camera |
| Supported light types | series laser light |
| Camera translation range | ±17.5 mm max. |
| Camera translation accuracy | 0.35 mm |
| Laser lens rotation range | ±2° (depends on the structural tolerance of the parts around the lens) |
| Laser lens rotation accuracy | 0.138° |
Mechanical
| Weight | Approx. 1682 g |
|---|---|
| Installation method | Bracket mounting, Base-plate mounting |
| Shell material | Aluminum alloy |
| Shipping weight (estimated) | 2.45 kg |
| Height adjustment range | ±40 mm (camera and laser lens move together) |
| Height adjustment accuracy | ±1 mm |
Other models in the Mounting and calibration parts (LS-LAC-S05) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LAC-0063 | 37.1 mm × Φ27 mm · 100 ~ 500 mm | $499.00 Quote | Ships in 2-3 weeks | View |
