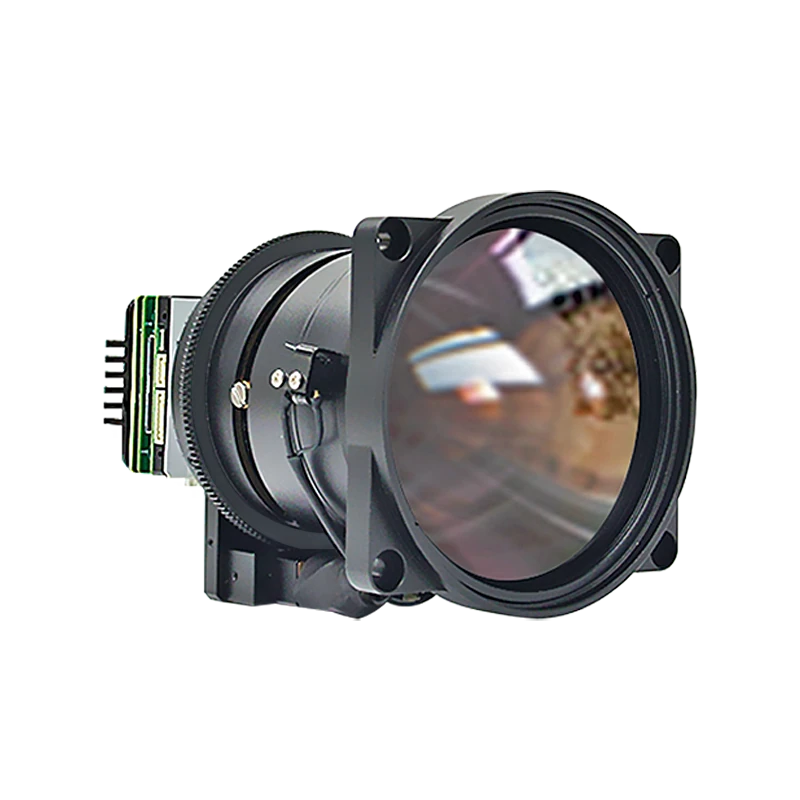

LWIR thermal camera module, 0.3 MP, USB3, DC12V (LS-IRC-0023)
Model LS-IRC-0023
- Resolution640×512
- Pixel size12
- InterfaceUSB3
- ColourColor
$3,999.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
0.4 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Long-wave infrared thermal imaging camera module features a 640x512 resolution infrared detector, equipped with a high-performance 9.1mm anti-environmental interference lens and image processing algorithms tailored for specific scenarios.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-IRC-0023 |
|---|---|
| Lens | 100mm Motorized focus lens |
| Detector type | Uncooled infrared module |
| Response band | 8~14μm(LWIR) |
| NETD | ≤50mK |
| Picture processing | Non-uniformity correction, digital filtering noise reduction, digital detail enhancement |
| Image mirroring | Left and right/up and down |
| Accuracy | ±2℃ or 2% of the reading |
Optics
| Magnification | X1, X2, X4 |
|---|
Sensor and imaging
| Resolution | 640×512 |
|---|---|
| Pixel pitch | 12 μm |
| Resolution ratio | 640x512 |
| Pixel spacing | 12μm |
| Frame rate | Main stream:1fps~25fps Sub stream:1fps~25fps |
| Output resolution | 640x512 |
| Sensor | Uncooled infrared module |
| Pixel size (μm) | 12 |
Interfaces and I/O
| Video output interface | Optional interface: CVBS/USB(UVC)/ BT656/Bt.1120 [Support customization] |
|---|---|
| Video output | RJ45 |
| Communication interface | RS-485 |
Light
| Brightness, contrast | Automatic/manual |
|---|---|
| Color palettes | White heat,black heat,iron red,reverse iron red,rainbow,lava,feather red, spring feather red,amber,iron ash,blue black,blue red,multicolored,RGB reverse color |
Environment and compliance
| Operating temperature | -30℃~+60℃ |
|---|---|
| Environment temperature | -50℃~+70℃ |
| Humidity | ≤90%RH(no condensation) |
| Temperature measurement range | 140℃~600℃ |
Electrical
| Polarity | White hot, black hot |
|---|---|
| Power protection | Overcurrent protection, overvoltage protection, reverse input protection suppress high voltage surge |
| Power supply | DC12V |
| Typical Power Consumption | ≤2.5W |
| Voltage | DC12V |
Mechanical

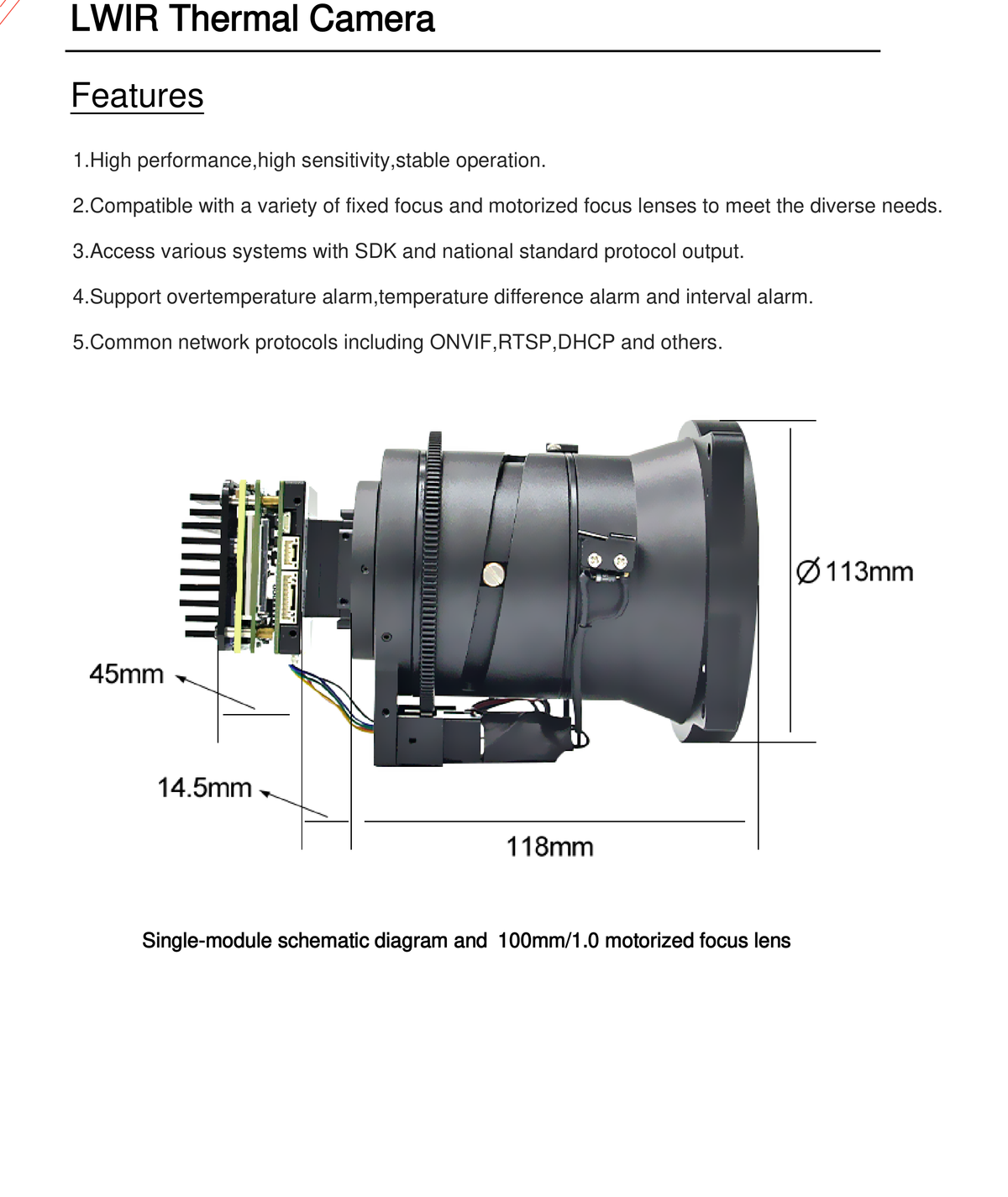

| Size | 45*45mm(camera module)+dia. 133×118mm(100mm/1.0 motorized focus lens) |
|---|---|
| Weight | 216g(camera module)+870g(100mm/1.0 motorized focus lens) |
