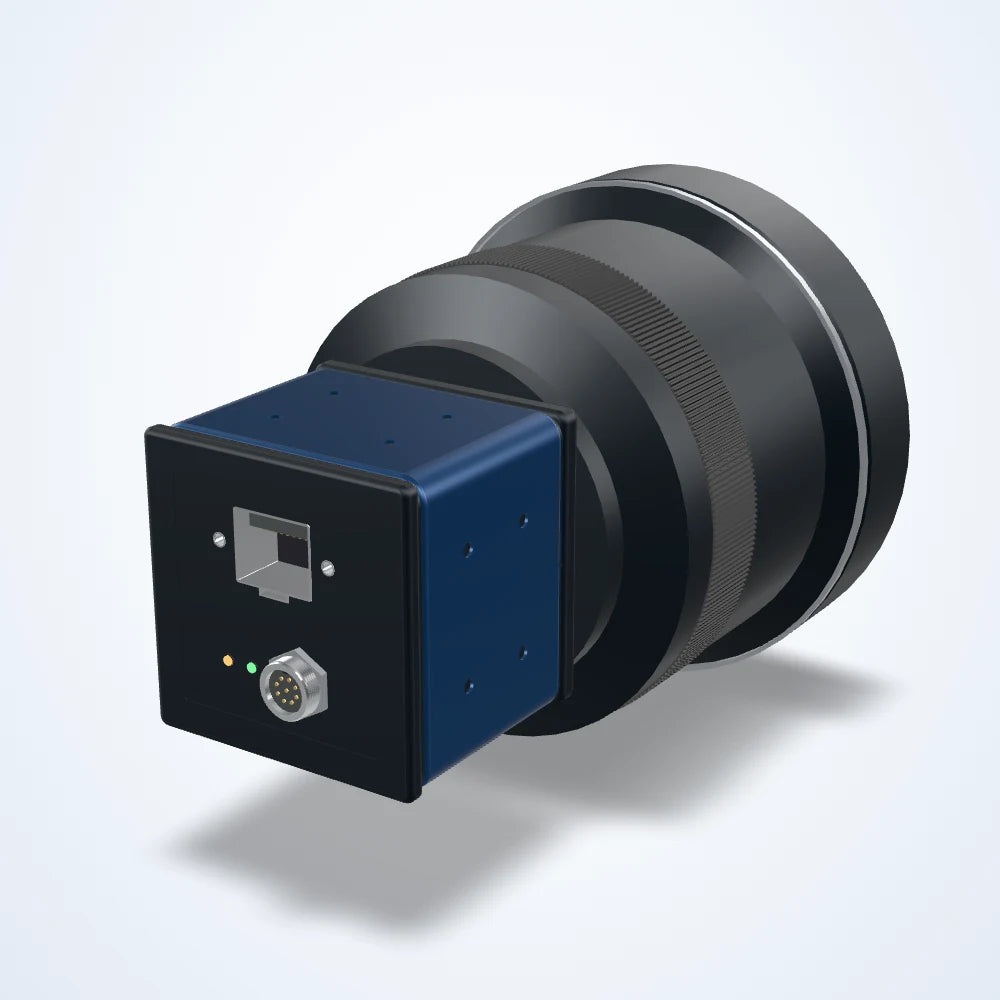

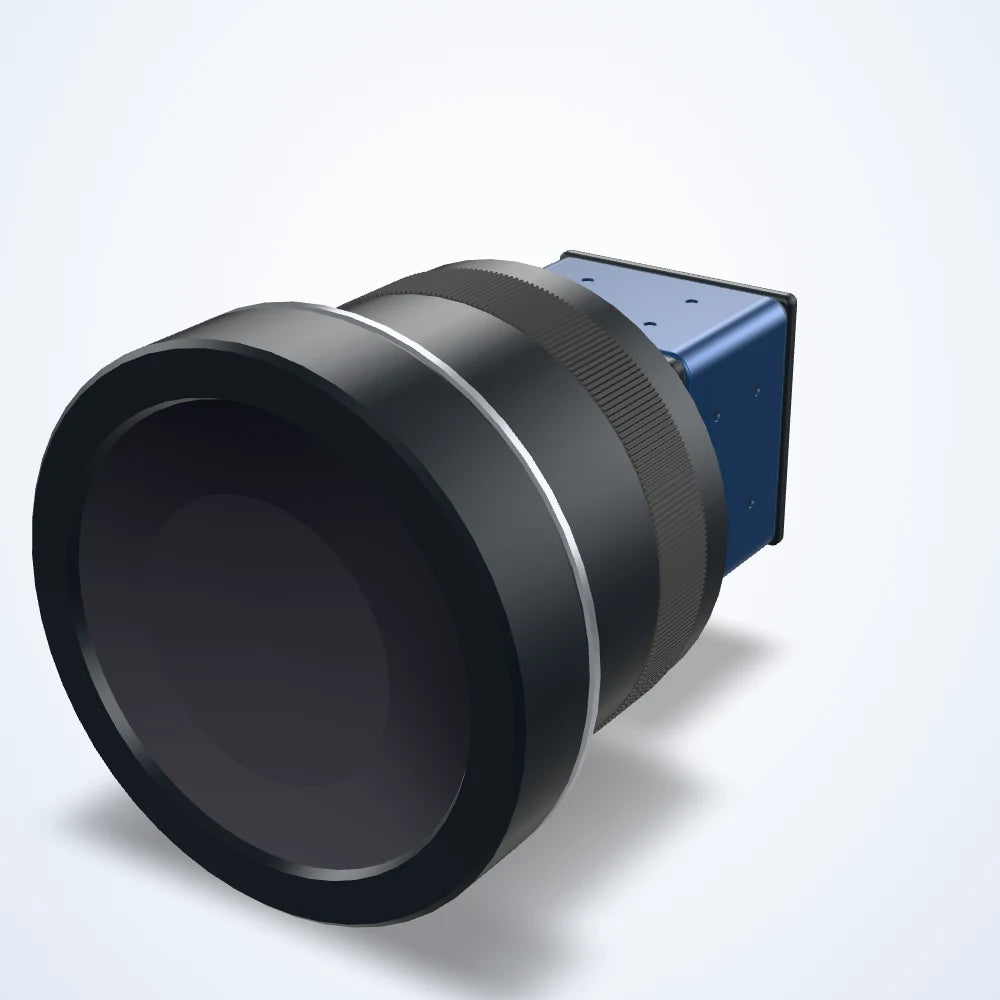

Rendered illustration: the actual product may differ in appearance.
Infrared cameras
640 x 512 gas leak imaging camera, 10.3-10.7 μm, 25 Hz, Digital Version (LS-IRC-0004)
Model LS-IRC-0004
- Resolution640×512
- SensorUncooled VOx infrared detector
- Interface1×analog video output
- Speed25 fps
- Pixel size12 μm
- Focal lengthLens Type FOV (H×V)
$14,445.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 3-4 weeks
2.0 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Gas leak imaging camera for non-contact temperature measurement and process monitoring. Uncooled VOx infrared detector; 640 x 512 pixels of 12 μm; up to 25 Hz; spectral range 10300-10700 nm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-IRC-0004 |
|---|---|
| Spectral range | 10.3 ~10.7 μm |
| Detectable Gases | SF6, NH3, C2H4, C4H8O, C2H3Cl, C2HCl3, C4H6O, C3H6, C3H4O, C3H3N, C6H7NO2, C3H5F, C3H5Cl, C3H5Br, C4H4O , etc. |
| NETD | ≤ 40mK@25 °C ,F#1.0 |
| Digital Zoom | 1.0~8.0× |
| Image Processing | NUC / Temporal Filtering / Spatial Filtering / Contrast / Brightness / DDE |
| Fire Detection Alarm | Supports |
| 13 mm F1.0 | Motorized Focus 33.7° ×27.0° |
| 25 mm F1.0 | Motorized Focus 17.6° ×14.1° |
| 50 mm F1.0 | Motorized Focus 8.8° ×7.0° |
| 55 mm F1.0 | Athermalized 8.0° ×6.4° |
| 100 mm F1.0 | Motorized Focus 4.38° ×3.51° |
| 9 mm~35 mm F1.1~F1.1 | Motorized Focus 52.3° ×40.7° ~12.4° ×10° |
| 25 mm~75 mm F0.95~F1.2 | Motorized Focus 17.7° ×14.1° ~5.8° ×4.7° |
| 20 mm~100 mm F0.8~F1.1 | Motorized Focus 22.5° ×17.8° ~4.4° ×3.5° |
| Spectral Band | 10.3-10.7 μm |
| Image Mirroring | Vertical/Horizontal/Diagonal |
| Simultaneous Video Streams | Up to 8 channels |
| Smart Recording | Supported |
| Smart Alarm | Supports cable disconnection, IP address conflict, storage full, storage error, illegal access anomaly detection, and linkage alarm functions |
| Smart Detection | Supports intelligent video analysis functions such as tripwire and intrusion |
| Alarm Linkage | Recording / Snapshot / Email / PTZ Control / Alarm Output |
| Auto Focu | Supported (Auto-focus near the focus point ≤1s) |
| Motorized Zoom | Supported |
| Reset Button | Supports hard reset |
Optics
| Auto Focus | Supports |
|---|---|
| Motorized Zoom & Focus | Supports |
| Lens focal length | Lens Type FOV (H×V) |
Sensor and imaging
| Max. frame rate | 25 fps |
|---|---|
| Resolution | 640×512 |
| Sensor type | Uncooled VOx infrared detector |
| Pixel size | 12 μm |
| Effective Frame Rate | 25 Hz |
Interfaces and I/O
| Serial Communication Interface | RS-485, UART optional (PTZ control) |
|---|---|
| PELCO Protocol | Supports standard PELCO-D and PELCO-P PTZ control protocols |
| Network Interface | 1×RJ45 10M/100M adaptive Ethernet port |
| Audio Interface | 1×audio input, 1×audio output |
| Alarm Interface | 2×alarm input, 1×alarm output |
| Data interface | 1×analog video output |
| Storage Interface | Supports Micro SD card (up to 256 GB) |
Light
| Pseudo Color | Black Hot / White Hot and 18 pseudo-color palettes |
|---|
Environment and compliance
| Operating temperature | -40 °C~ +70 °C |
|---|---|
| Storage temperature | -45 °C~ +85 °C |
| Humidity | 5%–95%, non-condensing |
Electrical
| Typical Supply Voltage | 12 V DC ±10% |
|---|---|
| Power consumption | <2.4 W |
Mechanical
| Weight | 96.5 ± 10g |
|---|---|
| Dimensions | 45 mm × 45 mm |
