Fanless industrial PC, Intel Core i3-7167U (LS-IPC-0030)
Model LS-IPC-0030
- ProcessorIntel Core i3-7167U
- Memory1xSO-DIMM DDR3L Slot, max 16GB DDR3L
- Storage1xMSATA3.0 SSD and 1xSATA3.0 HDD/SSD
- OSWindows / Linux
$409.00
Ships in 2-3 weeks
3.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Fanless industrial PC, Intel Core i3-7167U. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: 1xSO-DIMM DDR3L Slot, max 16GB DDR3L; storage: 1xMSATA3.0 SSD and 1xSATA3.0 HDD/SSD. Sold barebone or with 8 GB RAM + 256 GB SSD fitted; Wi-Fi on request.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-IPC-0030 |
|---|---|
| Configuration | Barebone: no memory, storage, Wi-Fi module or operating system; or choose the 8 GB RAM + 256 GB SSD option (fitted and tested, no operating system). Wi-Fi on request |
| In the box | Mini PC device, Power Adapter, dual wifi antennas(optional) |
Interfaces and I/O
| I/O | HDMI, 4USB2.0, 4USB3.0, MIC, SPK, 6*Intel i225V 2.5G LAN, 2COM, 2 LED Switch On/Off, DC IN, 2WiFi holes |
|---|---|
| Wireless | Inbuilt 3G/4G/WiFi&Bluetooth with Dual antennas(optional) |
Environment and compliance
| Certification | CE, FCC, RoHS (manufacturer) |
|---|
Computing
| Processor | Intel Core i3-7167U |
|---|---|
| Processor details | Onboard Intel KABYLAKE 14nm CPU Intel Core i3-7167U 2.8GHz Dual Cores Four Threads 3MB cache TDP 28W Intel Iris Plus Graphics 650 |
| Memory | 1xSO-DIMM DDR3L Slot, max 16GB DDR3L |
| Storage | 1xMSATA3.0 SSD and 1xSATA3.0 HDD/SSD |
| Operating system | Windows / Linux |
Mechanical

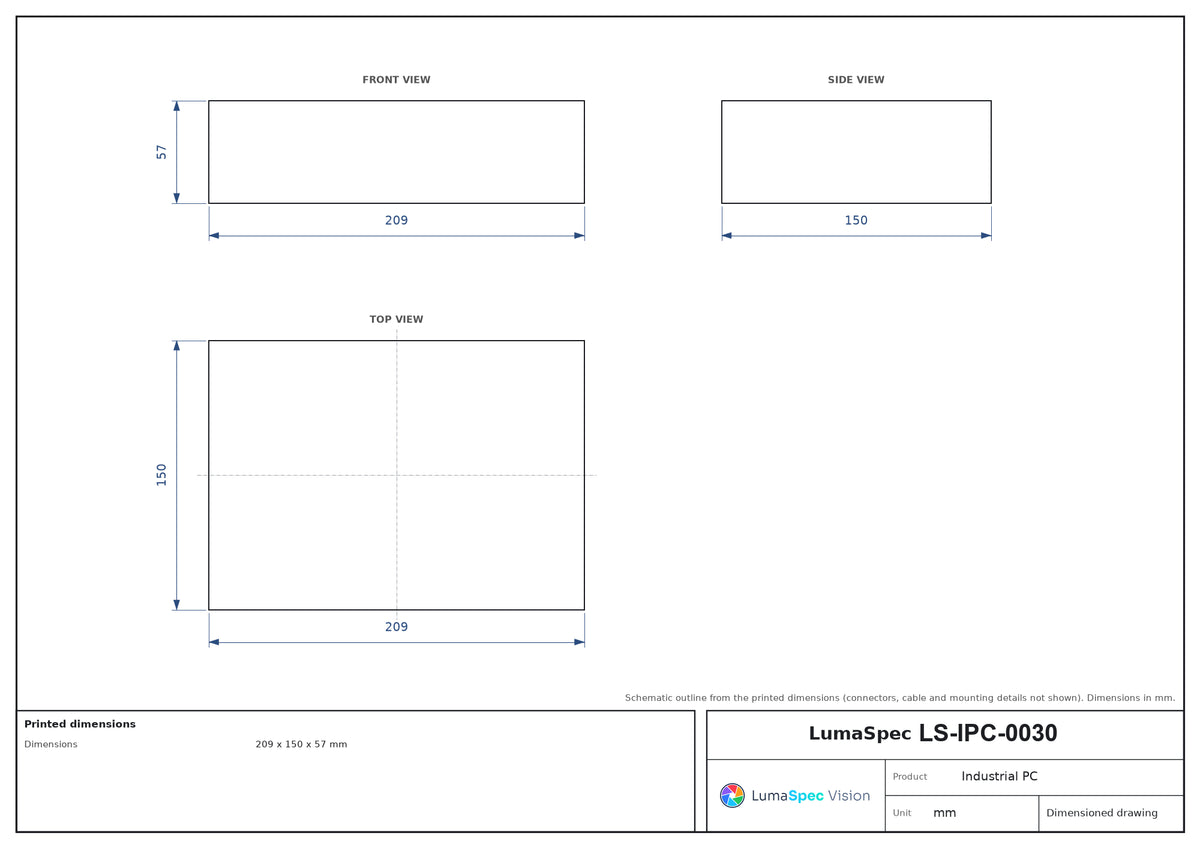

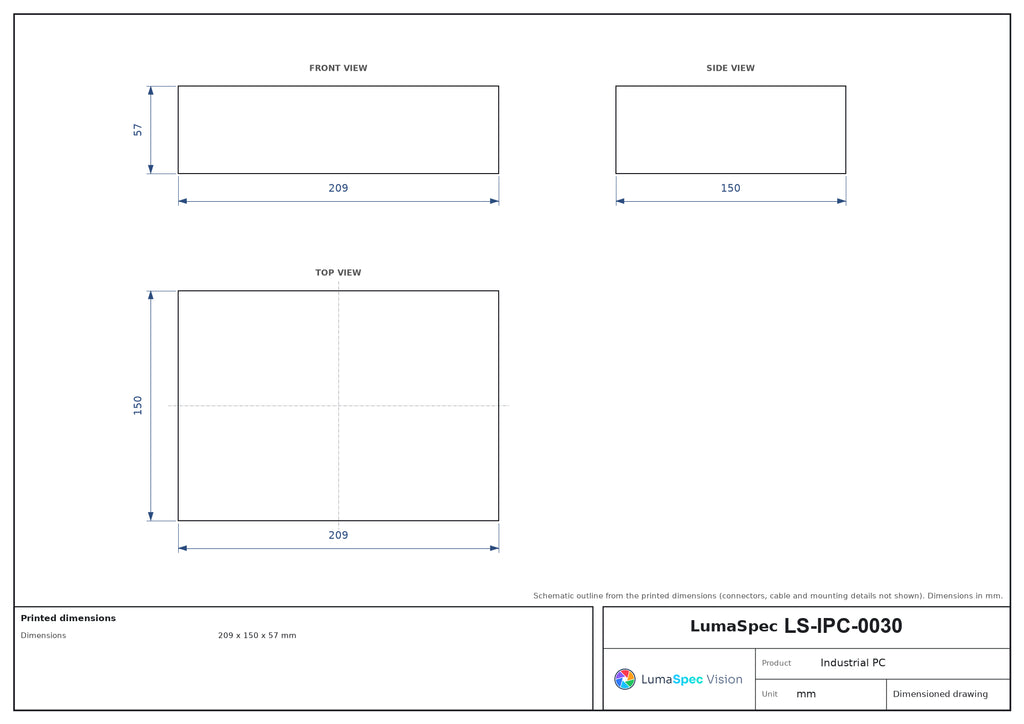

| Dimensions | 209 x 150 x 57 mm |
|---|---|
| Weight | 2.5 kg per set |
Other models in the LS-IPC-S11 fanless industrial PCs series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-IPC-0029 | 5405U CPU | from $379.00 | Ships in 2-3 weeks | View |
| LS-IPC-0032 | 8145U CPU | from $439.00 | Ships in 2-3 weeks | View |
| LS-IPC-0031 | Intel Core i5-7267U | from $459.00 | Ships in 2-3 weeks | View |
| LS-IPC-0033 | Intel Core i5-8250U | from $499.00 | Ships in 2-3 weeks | View |
| LS-IPC-0034 | 10210U CPU | from $579.00 | Ships in 2-3 weeks | View |
