Handheld industrial barcode reader, 1.0 MP, USB 2.0 (LS-HCR-0001)
  • Handheld industrial barcode reader, 1.0 MP, USB 2.0 (LS-HCR-0001)

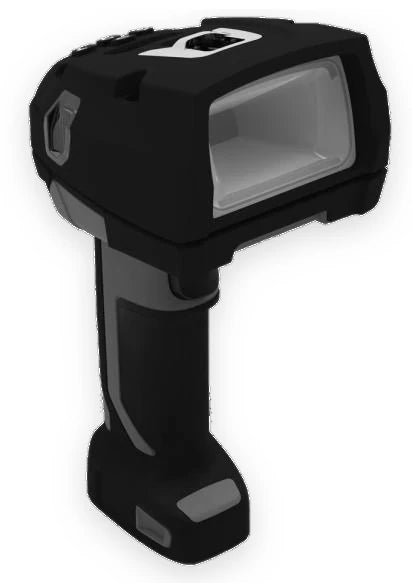

Representative photo of this series

Handheld code readers

LS-HCR-S01 series handheld industrial barcode reader, 1.0 MP (LS-HCR-0002)

Model LS-HCR-0002

  • Resolution1280 x 800
  • Speed60FPS
  • Pixel size3.0µm
  • Focal length6.8 mm
$539.00

Ships in 2-3 weeks

0.59 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

LS-HCR-S01 series handheld industrial barcode reader, 1.0 MP (LS-HCR-0002)LS-HCR-0002

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Handheld industrial barcode reader with a decoding algorithm designed for mobile scenes, a training function for designated barcodes, coaxial aiming, and a Bluetooth 5.0 wireless version with a 3100 mAh battery.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-HCR-0002
Support barcode2D: Datamatrix (ECC200), QR Code; 1D: Code39, Code93, Code128, EAN13, EAN8, UPC-E, interleaved 2 of 5
View field31° horizontally, 20° vertically
Check angleTilt angle ±60°, deflection angle ±60°, rotation angle 360°
Symbol contrast20%
Ambient lighting0~10000lux
AimGreen LED, coaxial aiming
InstructThree-color LED, OLED display, buzzer, vibrator
Button life10W times (100,000)
Min reading accuracyDM 5mil
BluetoothBT 5.0, 2.4~2.4835 GHz frequency band, BLE
Battery3100 mAh
Charging timeIn shutdown mode: USB 2.0 (5V, 0.5A): 5h; DC 12V (12V, 2A): 3.5h
Battery lifeContinuously working: 8h; interval work: 13h

Optics

Depth of field rangeDM 5mil 10-60mm / DM 10mil 10-100mm
Focal length (mm)6.8

Sensor and imaging

Image sensor1280*800 Pixel Global Shutter CMOS
Max acquisition frame rate60FPS
Pixel size3.0µm
Resolution1280 x 800
ShutterGlobal

Interfaces and I/O

Wireless range400m (open area)
Communication protocolBarcode reader: Bluetooth; Receiver: RS232, TCP/IP, Ethernet/IP, Profinet
InterfaceFast Ethernet (100 Mbit/s), RS232, DC head

Light

Light sourceDiffuse: White LED

Environment and compliance

Humidity20~95% RH no condensation
CertificationCE, FCC, RoHS
Operating temperatureWorking: -10~45°C; Charging: 0~45°C
Storage temperature-30~70°C (no batteries included)

Electrical

TriggerSingle trigger button, four user interaction buttons
IP protection levelIP67
Powered byBarcode reader: 3.8V DC (battery powered); Receiver: 12V DC
Max power consumptionBarcode reader standby mode: 1.0W@3.8V DC; working mode: 2.5W@3.8V DC; Receiver: 1W
Voltage3.8 V DC battery (receiver 12 V DC)

Mechanical

Target size1/4"
Lens mountM8
Drop height2m
Shipping weight0.59 kg
