Machine vision lenses
5-50 mm zoom lens, 1/3", CS-mount (LS-FFL-1695)
Model LS-FFL-1695
- Focal length5-50 mm
- MountCS-mount
- Sensor1/3"
- ApertureF1.6
- Field of view4.2 ~ 53.6°
$90.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
5-50 mm zoom lens for machine-vision cameras. Focal length 5-50 mm; covers sensors up to 1/3"; CS-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1695 |
|---|---|
| Min. object distance | 0.3 |
| Angle of view | 4.2° ~ 53.6° |
Optics
| Focal length | 5-50 mm |
|---|---|
| Aperture | F1.6 |
| Back focal length | 8 mm |
| Field of view | 4.2 ~ 53.6° |
| Focus | Manual |
Sensor and imaging
| Sensor format | 1/3" |
|---|
Environment and compliance
| Operating temperature | -10~+50° C |
|---|
Mechanical
| Mount | CS-mount |
|---|---|
| Flange back length | 12.5 mm |

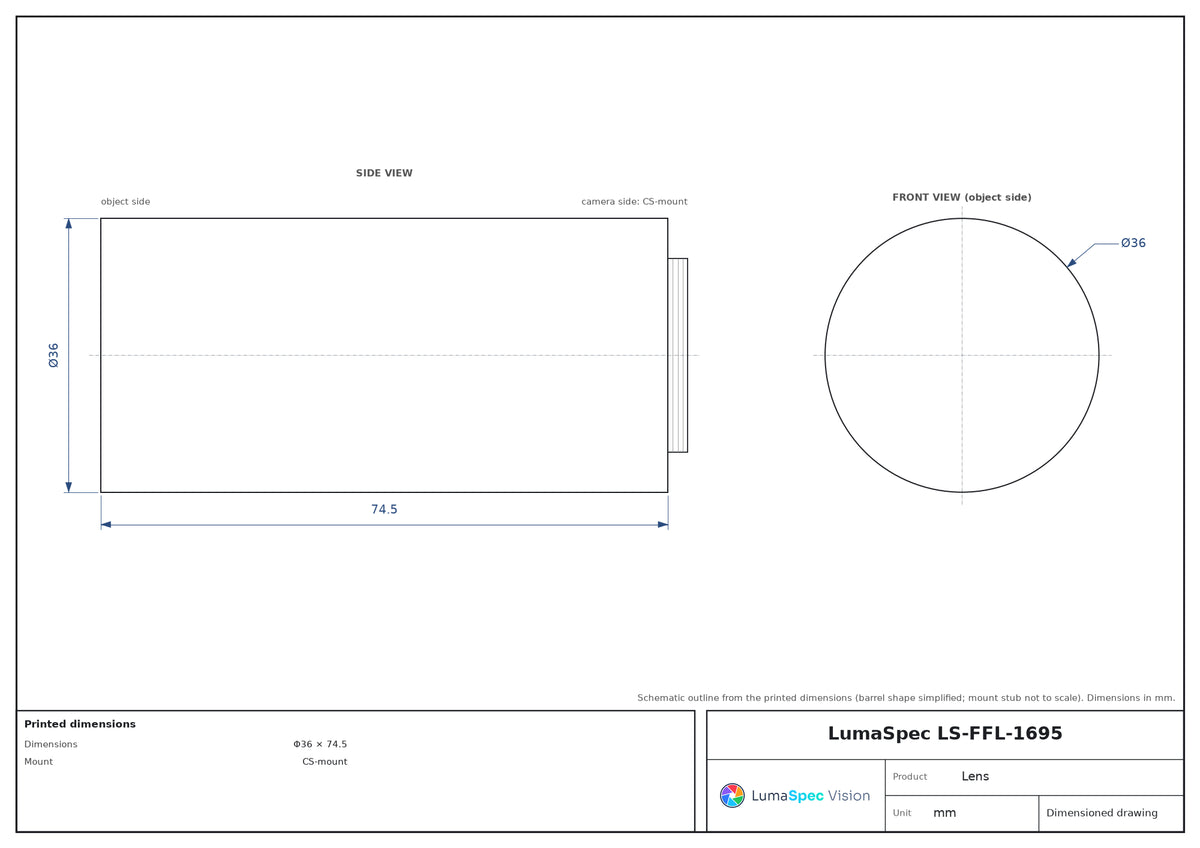

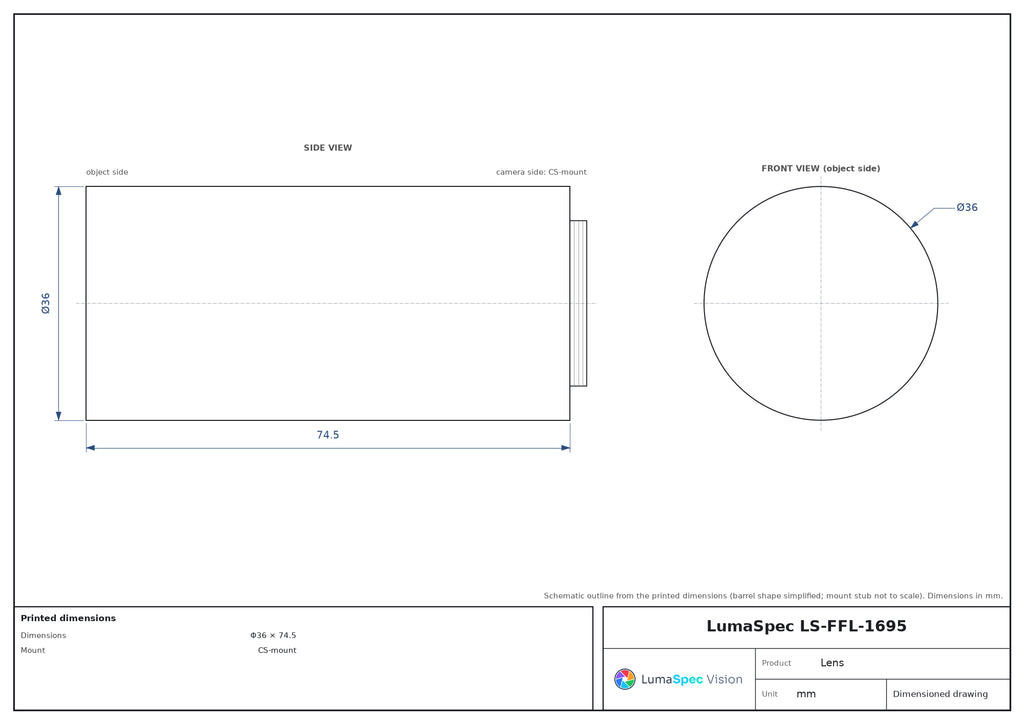

| Dimensions | Φ36 × 74.5 |
| Weight | 160 |
Other models in the 1/3" zoom lenses (LS-FFL-S168) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1696 | 5 mm, 1/3", CS-mount | $90.00 | Ships in 3-4 weeks | View |
| LS-FFL-1697 | 6 mm, 1/3", CS-mount | $90.00 | Ships in 3-4 weeks | View |
| LS-FFL-1698 | 10 mm, 1/3", CS-mount | $120.00 | Ships in 3-4 weeks | View |
