Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
5-50 mm zoom lens, 1/2.5", 3 MP, CS-mount (LS-FFL-1691)
Model LS-FFL-1691
- Focal length5-50 mm
- MountCS-mount
- Sensor1/2.5"
- ApertureF1.4
- Resolution3MP
- Field of view5.36° - 51.5°
$80.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
5-50 mm zoom lens for machine-vision cameras. Focal length 5-50 mm; covers sensors up to 1/2.5"; resolves 3 MP; CS-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1691 |
|---|---|
| Min. object distance | 0.2m |
| Zoom | Manual |
Optics
| Focal length | 5-50 mm |
|---|---|
| Aperture | F1.4 |
| Back focal length | 8 mm |
| Field of view | 5.36° - 51.5° |
Sensor and imaging
| Sensor format | 1/2.5" |
|---|---|
| Resolution | 3MP |
Environment and compliance
| Operating temperature | -10~+50° C |
|---|

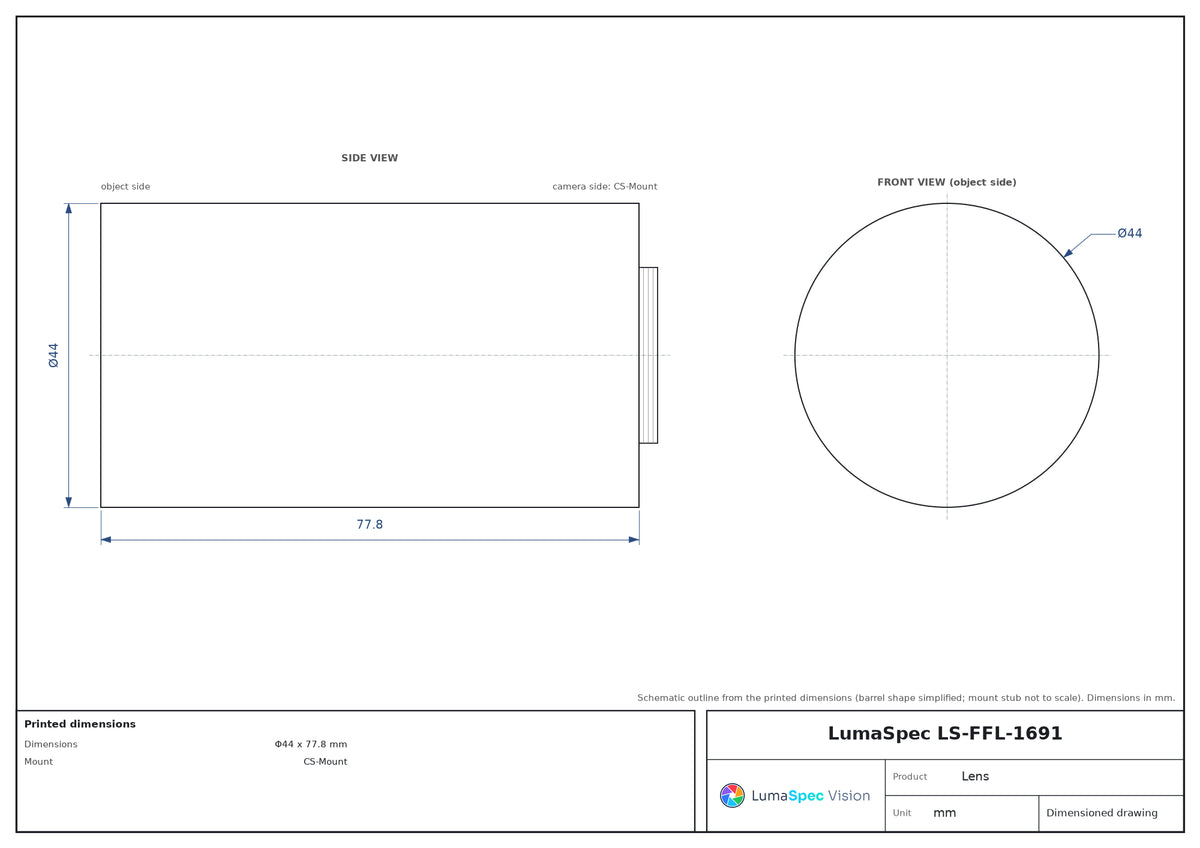

Mechanical
| Mount | CS-Mount |
|---|---|
| Flange back length | 12.5 mm |
| Dimensions | Φ44 x 77.8 |
| Weight | 152.5 |
