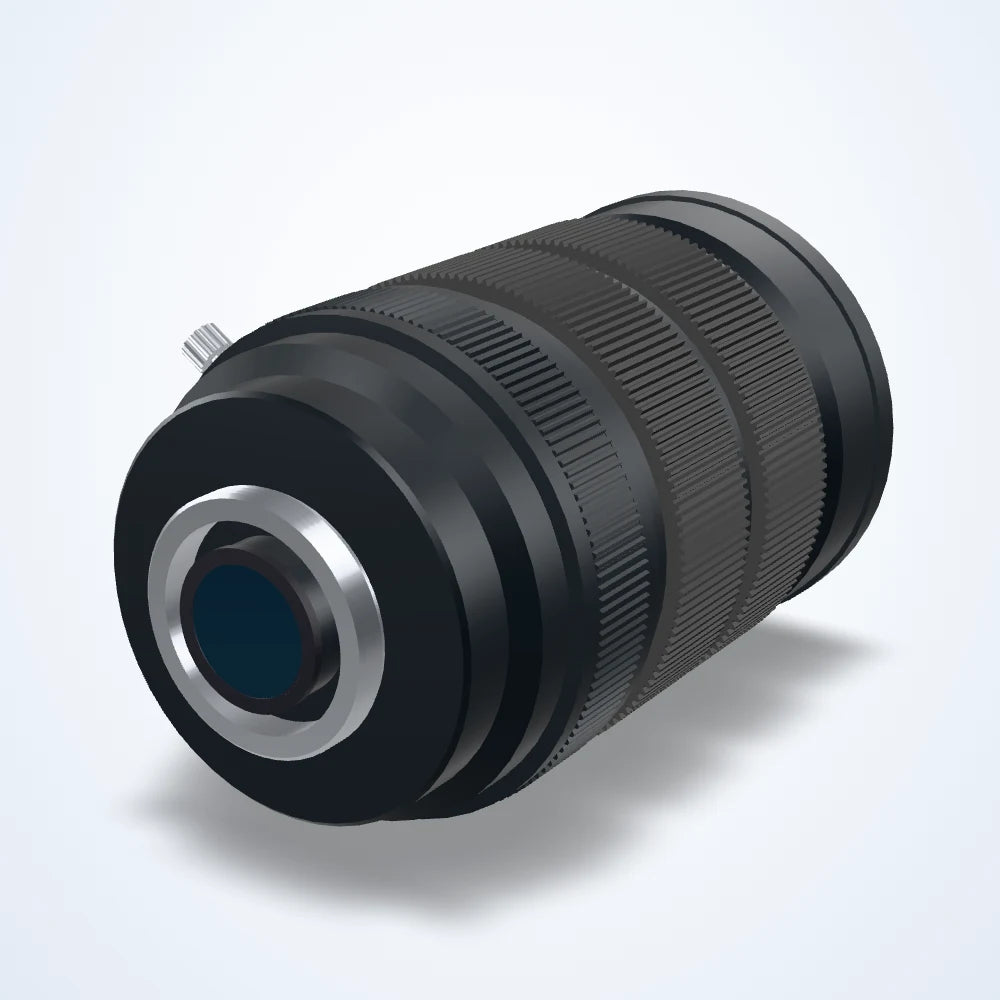

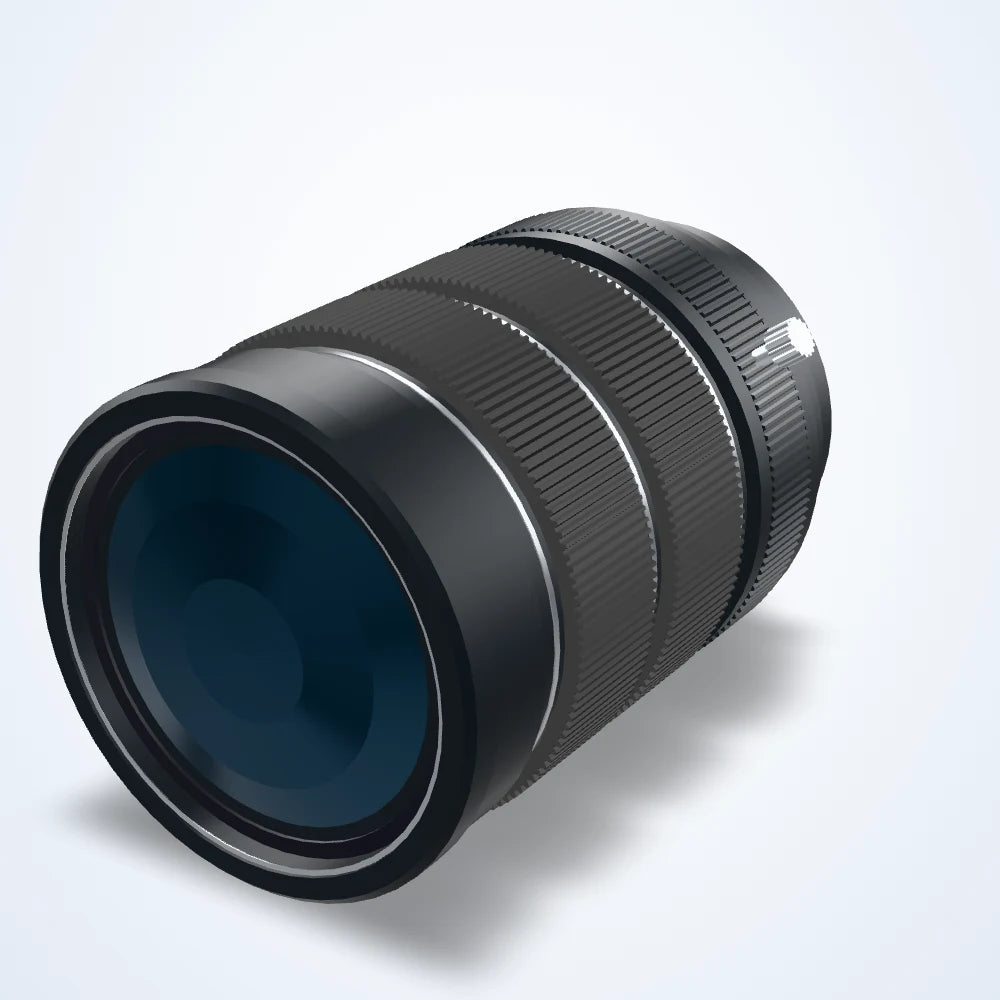

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
3.6-18 mm zoom lens, 1/1.7", 12 MP, F1.5, Iris:Manual (LS-FFL-1685)
Model LS-FFL-1685
- Focal length3.6-18 mm
- MountCS-mount
- Sensor1/1.7"
- ApertureF1.5
- Resolution12MP
$118.00
Ships in 3-4 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.6-18 mm zoom lens for machine-vision cameras. Focal length 3.6-18 mm; covers sensors up to 1/1.7"; resolves 12 MP; aperture F1.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1685 |
|---|---|
| Zoom | Manual |
| Min. object distance | 0.3m |
Optics
| Focal length | 3.6-18 mm |
|---|---|
| Aperture | F1.5 |
| Focus | 0.3m(W)~ ∞ / 0.3 m~∞ |
| Field of view | W: 156° / 111° / 80° T: 38° / 30° / 23° |
| Distortion | <-28% / -28% ~ -1.2% |
Sensor and imaging
| Resolution | 12MP |
|---|---|
| Sensor format | 1/1.7'' CCD/CMOS |
Environment and compliance
| Operating temperature | -10 °C~+50 °C |
|---|
Mechanical
| Dimensions | Ø51 × 77.8 |
|---|---|
| Mount | CS |
| Length | ≤96 mm |
| Flange back length | 12.5 mm |
| Shipping weight | 0.50 kg |
