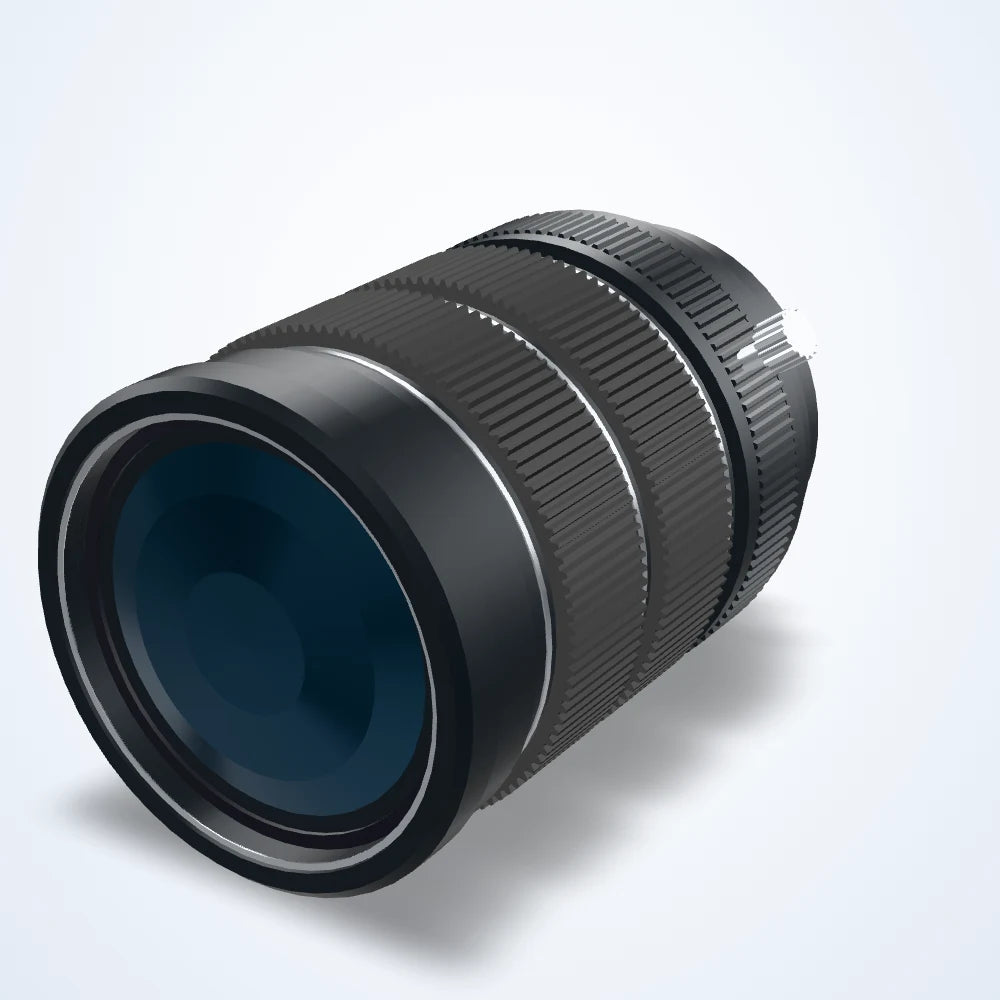

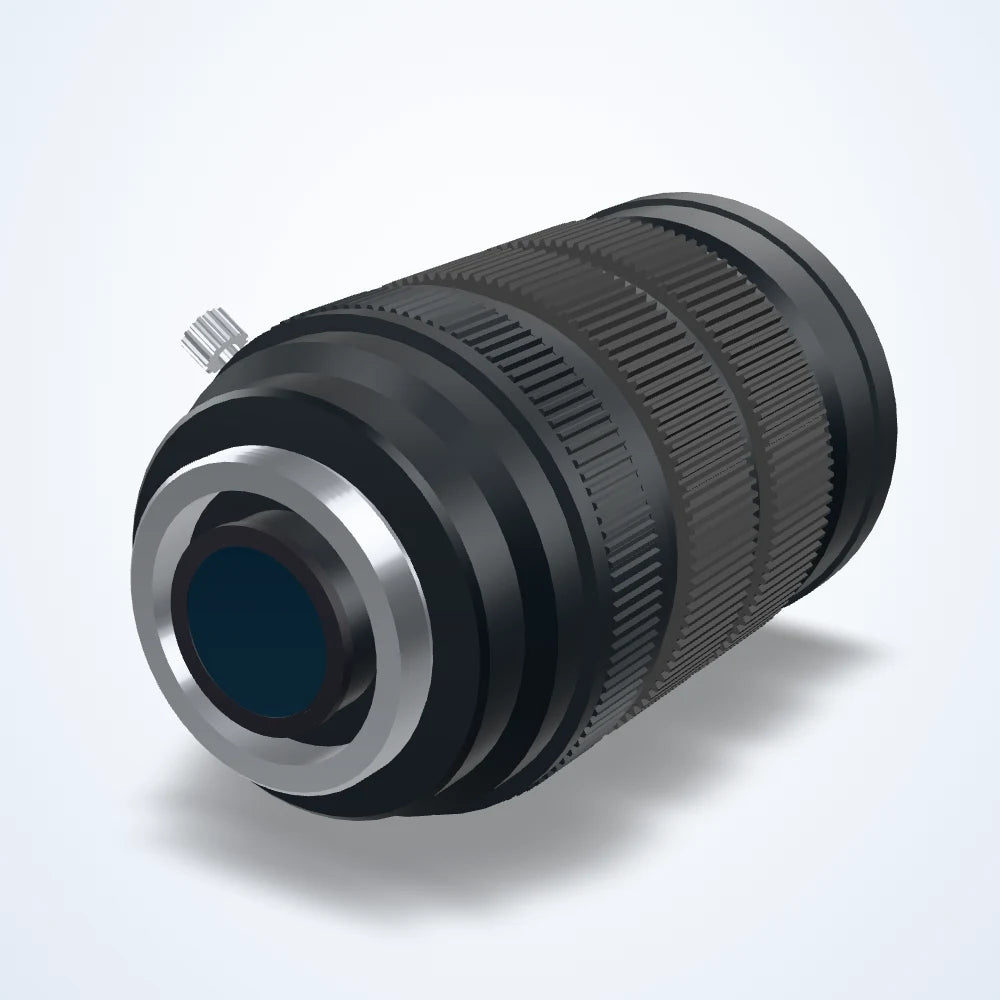

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16-32 mm zoom lens, 1", C-mount (LS-FFL-1682)
Model LS-FFL-1682
- Focal length16-32 mm
- MountC-mount
- Sensor1"
- ApertureManual
- Resolution100@ 1p/ mm
$107.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16-32 mm zoom lens for machine-vision cameras. Focal length 16-32 mm; covers sensors up to 1"; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1682 |
|---|---|
| Min. object distance | 1.5m |
| Zoom | Manual |
Optics
| Focal length | 16-32 mm |
|---|---|
| Back focal length | 21.58 mm |
| Field of view | W:53.26° /33.44° /43.85° T:27.57° /17.01° /22.43° |
| Distortion | -1.89%~1.98% |
| Aperture | Manual |
| Focus | Manual |
| Filter thread | M62×0.75 |
Sensor and imaging
| Sensor format | 1" |
|---|---|
| Resolution | 100@ 1p/ mm |
Environment and compliance
| Operating temperature | -20 °C~ +60 °C |
|---|
Mechanical
| Mount | C-Mount |
|---|---|
| Flange back length | 17.526 mm |
| Length | 129 mm |
| Dimensions | Φ65.00×113.35 mm |
| Weight | 619g |
