Machine vision lenses
Liquid LS-FFL-S156 series, 25 mm, 2/3", C-mount (LS-FFL-1645)
Model LS-FFL-1645
- Focal length25 mm
- MountC-mount
- Sensor2/3"
- Aperture9
$959.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Liquid FA lens of the VXL liquid lens range: 25 mm focal length, C mount, for 2/3" sensors. VXL lenses quickly adjust the working distance electrically and replace traditional mechanical changes.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1645 |
|---|---|
| FOV on 2/3" | 25.4° x 19.96° x 15.04° |
| FOV on 1/2.5" | 16.26° x 13° x 9.84° |
| FOV | 2/3" | 25.4°x19.96°x15.04° |
| FOV | 1/2.5" | 16.26°x13°x9.84° |
Optics
| Focal length (mm) | 25 |
|---|---|
| Max image circle (mm) | dia. 11 |
| Aperture (F#) | 9 |
| Distortion (%) | ≤0.14 |
| Field of view | 2/3": 25.4° x 19.96° x 15.04°; 1/2.5": 16.26° x 13° x 9.84° |
Sensor and imaging
| Compatible Sensor Size | 2/3" |
|---|---|
| Sensor format | 2/3" |
Environment and compliance
| Operating temperature | -10℃ to +50℃ |
|---|---|
| Storage temperature | -20℃ to +60℃ |

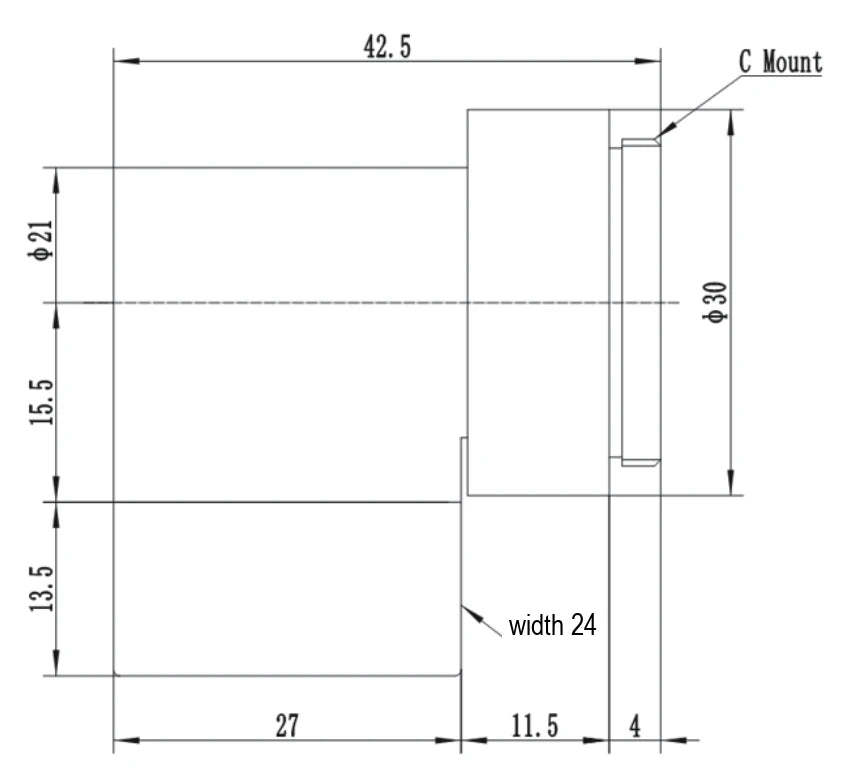

Mechanical
| Mount | C |
|---|---|
| Flange back length (mm) | 17.52 |
| Shipping weight | 0.38 kg |
Other models in the Liquid LS-FFL-S156 series series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1644 | 1.1", C-Mount | $959.00 | Ships in 2-3 weeks | View |
