Machine vision lenses
FA lens series, 12 mm, 1.1", C-Mount, FOV 61.9° (LS-FFL-1589)
Model LS-FFL-1589
- Focal lengthf=12mm
- MountC-mount
- Sensor1.1"
- Field of view61.9°
$329.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
FA lens series: compact design, adjustable aperture, ultra-high resolution and minimized distortion; supports 1/1.8", 1/1.7", 2/3", 1" sensors, max sensor 1.1".
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1589 |
|---|---|
| F/NO | F=1:2.8-16 |
| Flange back | 17.526mm in air |
| Front/Rear Effective Dia | dia. 25.8mm/dia. 13.5mm |
| Detector | 1.1" |
Optics
| Focal length | f=12mm |
|---|---|
| Field of view H (1.1") | 61.9° |
| Field of view H (1") | 56.9° |
| Field of view V (1.1") | 47.5° |
| Field of view V (1") | 44.1° |
| Field of view D (1.1") | 72.7° |
| Field of view D (1") | 67.9° |
| Focus distance | 0.1M-∞ |
| Back focus | 10.31mm in air |
Sensor and imaging
| Sensor format | 1.1" |
|---|
Light
| Rel.illumination | ≥65% |
|---|
Environment and compliance
| Temperature range | 10~+50℃ |
|---|---|
| Storage temperature range | 20~+60℃ |

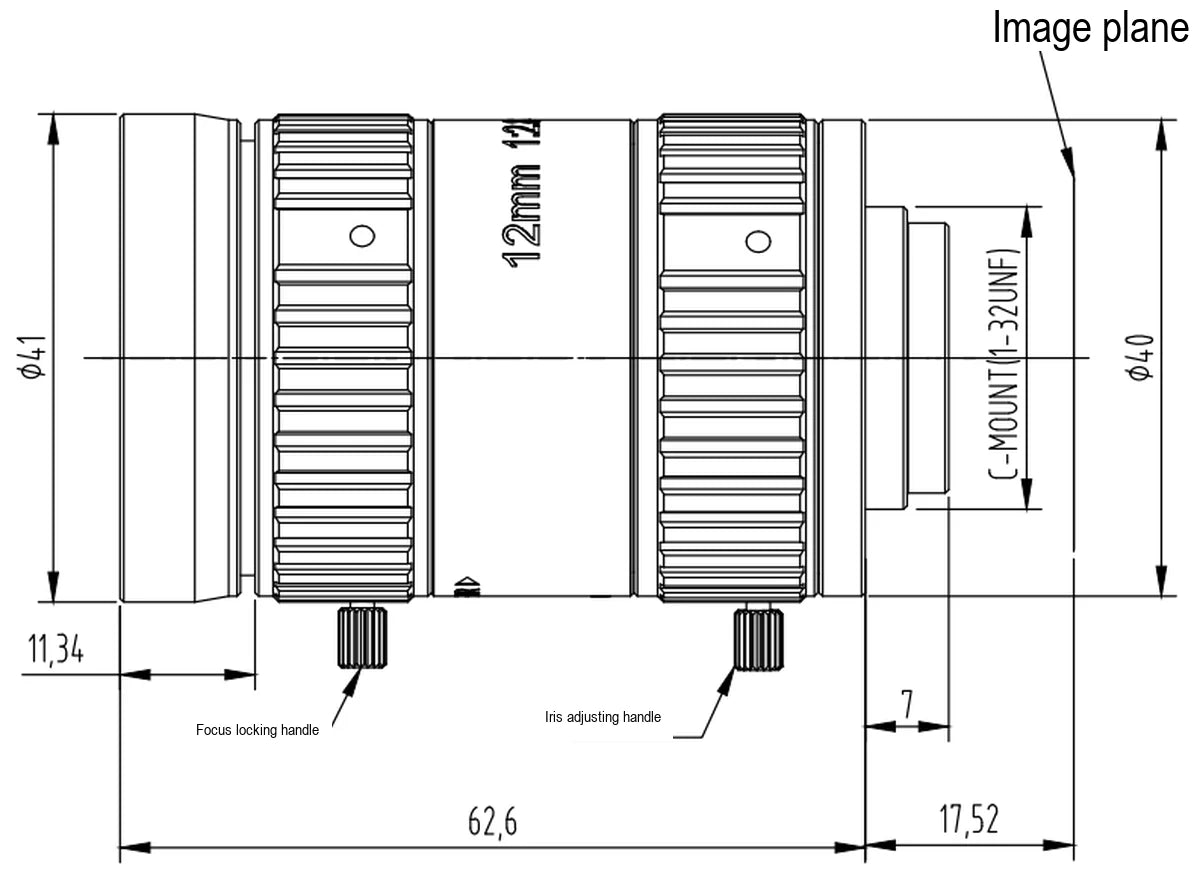

Mechanical
| Mount | C-Mount |
|---|---|
| Picture size | 1.1" / 1" |
| Shipping weight | 0.38 kg |
Other models in the FA lens series (LS-FFL-S152) series
See all 12 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1594 | 8 mm, 2/3", C-Mount | $169.00 | Ships in 2-3 weeks | View |
| LS-FFL-1595 | 12 mm, 2/3", C-Mount | $179.00 | Ships in 2-3 weeks | View |
| LS-FFL-1597 | 25 mm, 2/3", C-Mount | $199.00 | Ships in 2-3 weeks | View |
| LS-FFL-1596 | 16 mm, 2/3", C-Mount | $209.00 | Ships in 2-3 weeks | View |
| LS-FFL-1598 | 35 mm, 2/3", C-Mount | $219.00 | Ships in 2-3 weeks | View |
| LS-FFL-1599 | 50 mm, 2/3", C-Mount | $249.00 | Ships in 2-3 weeks | View |
| LS-FFL-1588 | 75 mm, 1.1", C-Mount | $549.00 | Ships in 2-3 weeks | View |
| LS-FFL-1590 | 16 mm, 1.1", C-Mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-1591 | 25 mm, 1.1", C-Mount | $689.00 | Ships in 2-3 weeks | View |
| LS-FFL-1592 | 35 mm, 1.1", C-Mount | $709.00 | Ships in 2-3 weeks | View |
| LS-FFL-1593 | 50 mm, 1.1", C-Mount | $739.00 | Ships in 2-3 weeks | View |
