Machine vision lenses

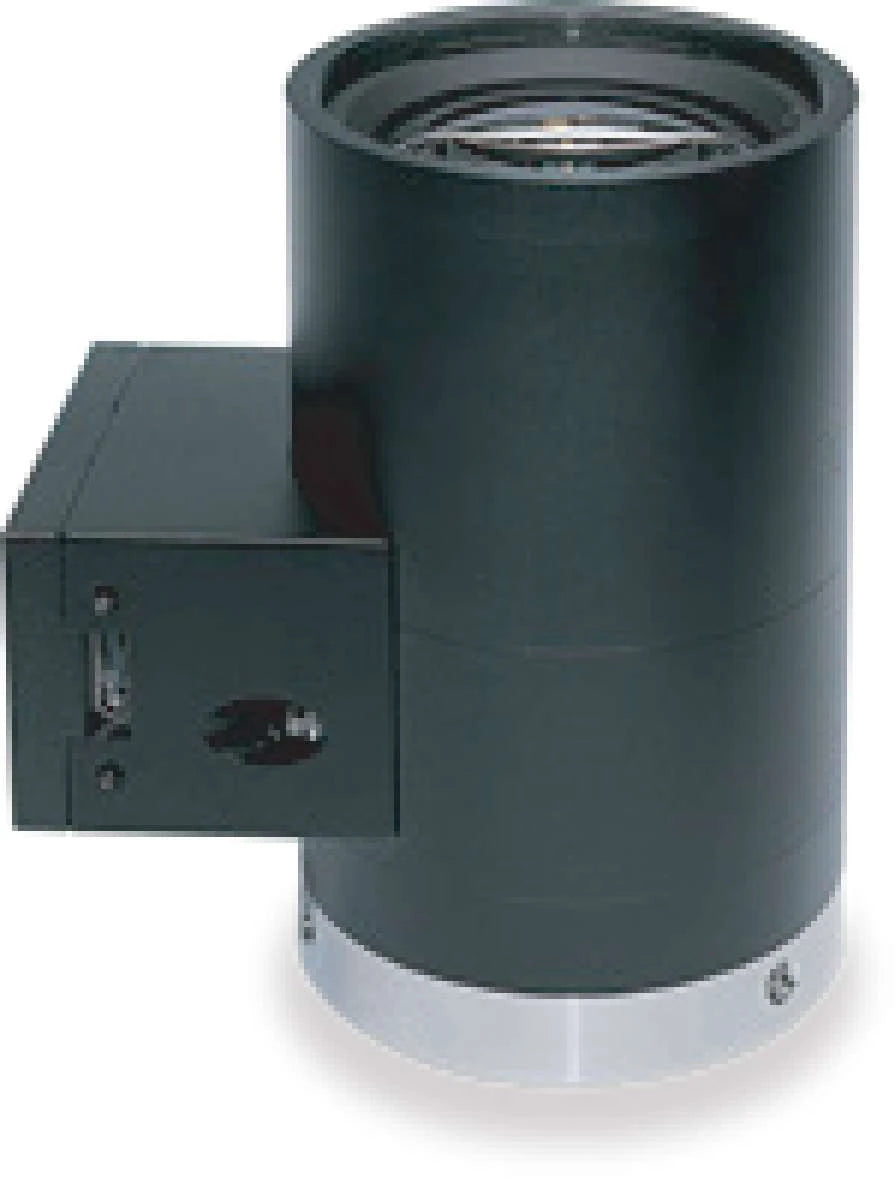

Liquid FA lens (autofocus), 16 mm, 1.1", C-mount (LS-FFL-1526)
Model LS-FFL-1526
- Focal length16mm
- MountC-mount
- Sensor1.1"
- ApertureF4
- Resolution10MP
$959.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Autofocus lens with the self-developed random (unordered) autofocus system: in a very short time it automatically focuses for any environment, scene and object, giving the following process steps stable, high-precision, consistent sharp images.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1526 |
|---|---|
| Format | 1.1" (17.6) |
| FOV 1.1" | D 57.5° / H 47.6° / V 35.6° |
| FOV 2/3" | D 37.7° / H 29.3° / V 24.6° |
| Catalog label | Liquid FA lens |
Optics
| Iris | Fixed |
|---|---|
| Focus | Motorized |
| Focal length (EFL) | 16mm |
| Distortion | <2% |
| Aperture | F4 |
| Focus range (MOD) | 100-∞ |
| Field of view | 1.1": D 57.5° / H 47.6° / V 35.6°; 2/3": D 37.7° / H 29.3° / V 24.6° |
Sensor and imaging
| Resolution | 10MP |
|---|---|
| Sensor format | 1.1" |
Interfaces and I/O
| Control interface | Micro USB |
|---|
Electrical
| Input voltage | 4.5-5.5V |
|---|---|
| Input current | <50mA |
Mechanical
| Filter size | M34 x 0.5 |
|---|---|
| Mount | C |
| Shipping weight | 0.38 kg |
