Machine vision lenses

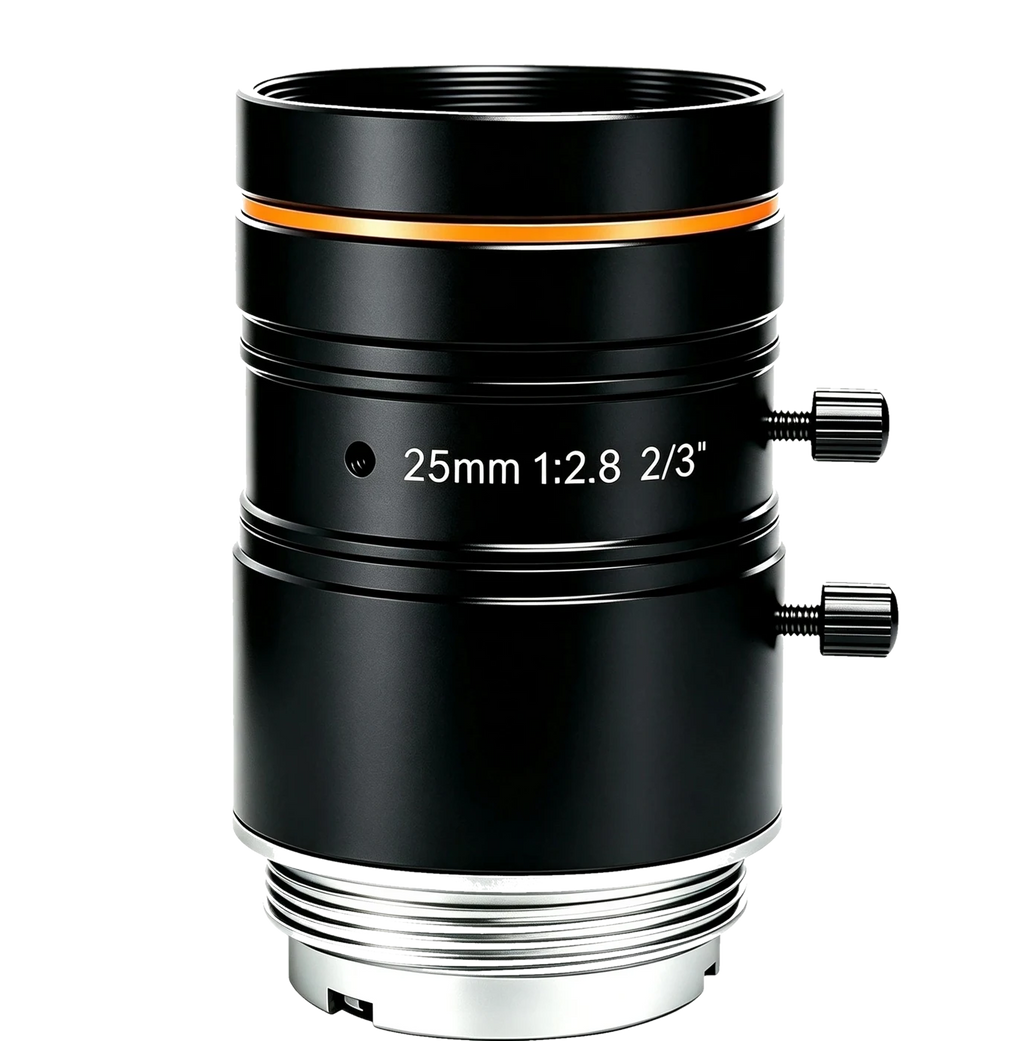

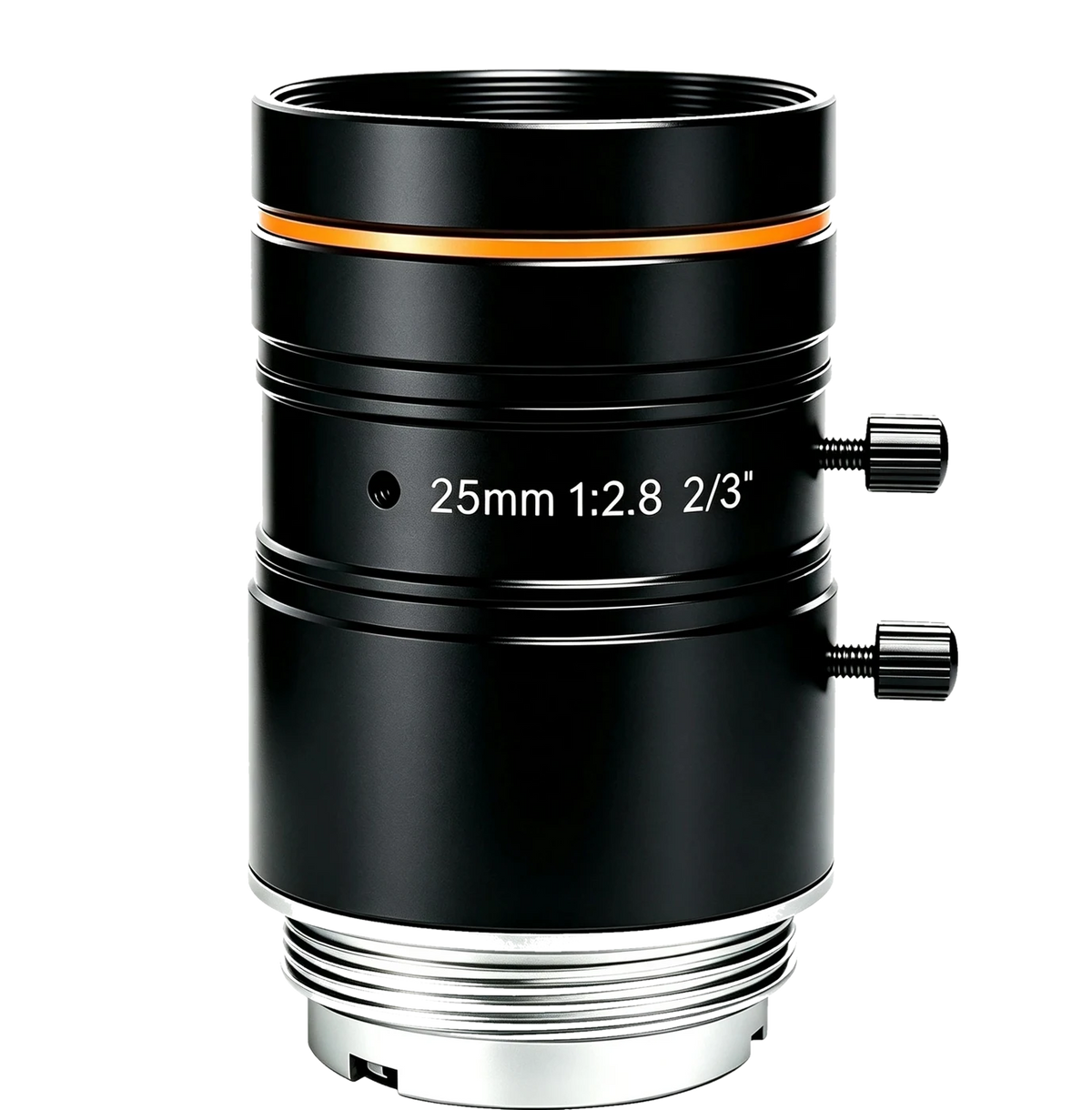

25mm, F2.8, 2/3", 8MP Lens, C-Mount, size Φ29 × 40.5 mm (LS-FFL-1492)

Model LS-FFL-1492

Focal length25 mm
MountC-mount
Sensor2/3"
ApertureF2.8 ~ F16

$169.00

Ships in 2-3 weeks

0.18 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

25mm, F2.8, 2/3", 8MP Lens, C-Mount. High resolution with highly consistent sharpness across the image Low distortion and excellent relative illumination

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1492
Minimum object distance	0.1 m

Optics

Focal length	25 mm
F-number	F2.8 ~ F16
Image size	Φ11.2 mm(2/3'')
Distortion	0.06%
Field of view	D(11.01):22.3°; H(8.45):17.2°; V(7.07):14.5°
Iris control	Manual
Focus control	Manual
Filter thread	M27 × P0.5

Interfaces and I/O

Connector type	C-Mount

Environment and compliance

Temperature	-10 ~ 50°C
Certification	RoHS2.0

Mechanical

Flange back length	17.526 mm
Dimension	Φ29 × 40.5 mm
Weight	54 g
Shipping weight (estimated)	0.18 kg

Other models in the LS-FFL-S138 series lenses series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-FFL-1490	12 mm · C-mount	$109.00	Ships in 2-3 weeks	View
LS-FFL-1491	16 mm · C-mount	$159.00	Ships in 2-3 weeks	View
LS-FFL-1493	35 mm · C-mount	$179.00	Ships in 2-3 weeks	View
LS-FFL-1489	8 mm · C-mount	$189.00	Ships in 2-3 weeks	View
LS-FFL-1488	6 mm · C-mount	$189.00	Ships in 2-3 weeks	View
