Machine vision lenses

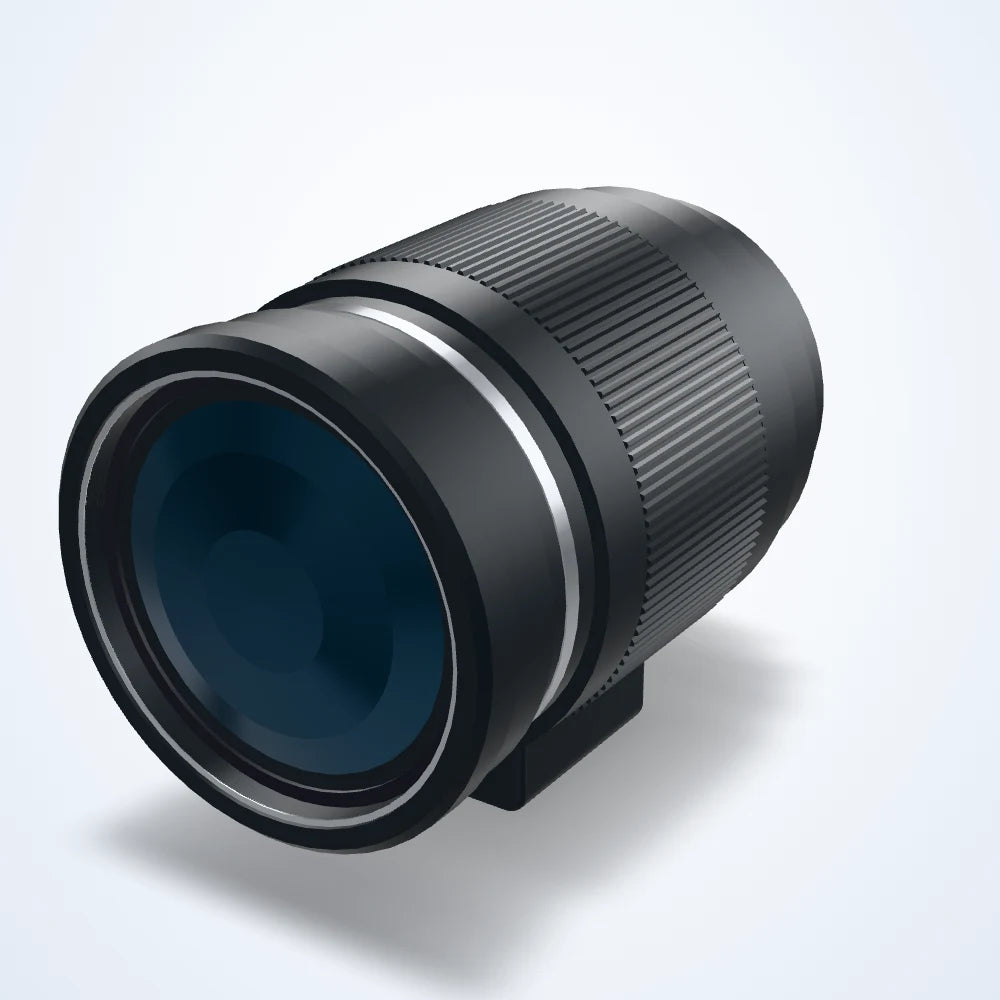

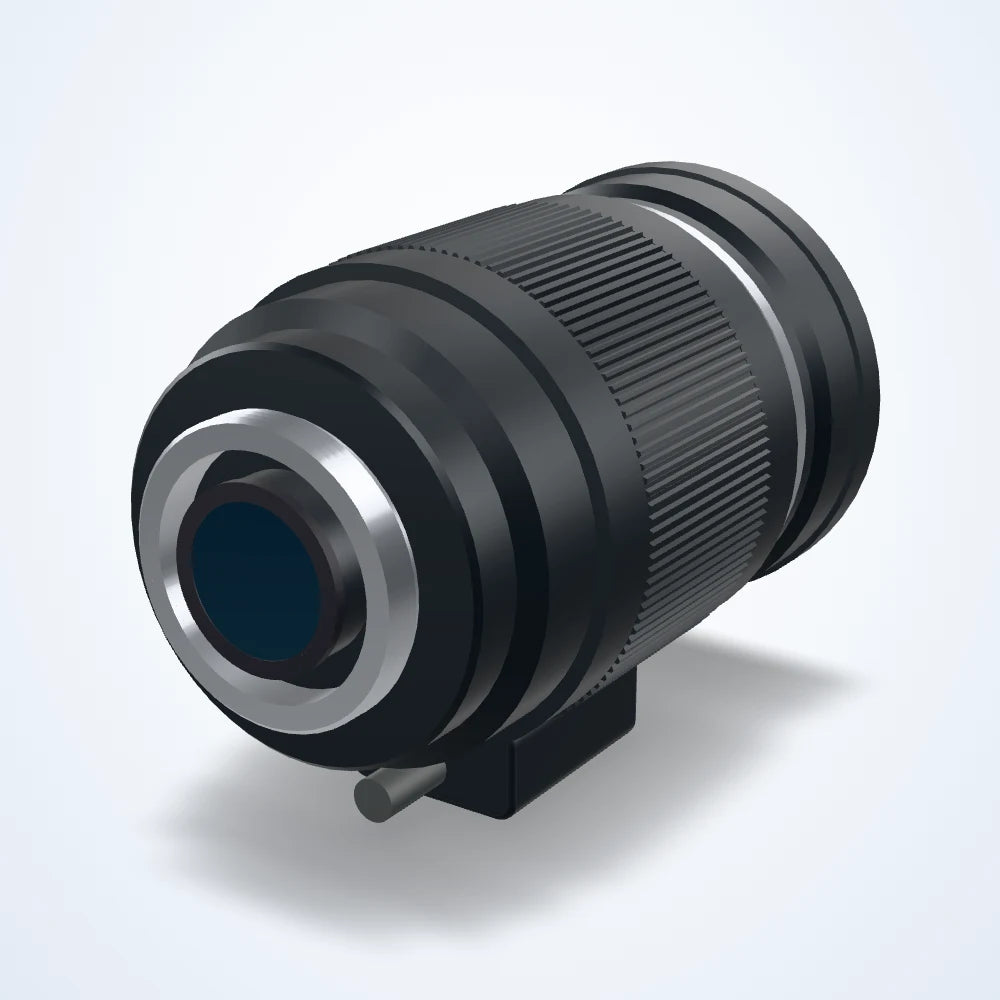

35 mm motorized focus lens, 1.1", 20 MP, F2.8, C-mount (LS-FFL-1481)
Model LS-FFL-1481
- Focal length35 mm
- MountC-mount
- Sensor1.1"
- ApertureF2.8
- Resolution20MP
- Field of view22.6°x17°x28.3°
$640.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm motorized focus lens for machine-vision cameras. Focal length 35 mm; covers sensors up to 1.1"; resolves 20 MP; aperture F2.8; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1481 |
|---|---|
| Min. object distance | 0.2 |
| Front/Rear Effective Dia. | Front Φ23 mm Rear Φ19.1 mm |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture | F2.8 |
| Back focal length | 22.9 mm |
| Field of view | 22.6°x17°x28.3° |
| Distortion | ＜ 0.02% |
| Focus | Motorized |
| Filter thread | M35.5×0.5 |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution | 20MP |
Environment and compliance
| Operating temperature | -10~+50° C |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Shipping weight | 1.00 kg |
Other models in the 1.1" motorized focus lenses (LS-FFL-S136) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1478 | 12 mm, 1.1", C-mount | $640.00 | Ships in 3-4 weeks | View |
| LS-FFL-1479 | 16 mm, 1.1", C-mount | $640.00 | Ships in 3-4 weeks | View |
| LS-FFL-1480 | 25 mm, 1.1", C-mount | $640.00 | Ships in 3-4 weeks | View |
| LS-FFL-1482 | 50 mm, 1.1", C-mount | $640.00 | Ships in 3-4 weeks | View |
