Machine vision lenses

50mm, F2.8, 1.1", C-mount, Macro lens (95.4 mm (-0.8X) to 132.4 mm (-0.5X)) (LS-FFL-1457)

Model LS-FFL-1457

Focal length50 mm
Magnification0.8x ~ 0.65x ~ 0.5x
MountC-mount
Sensor1.1"
Working distance95 ~ 109 ~ 132 mm
ApertureF2.8 ~ F16

$359.00

Ships in 2-3 weeks

0.26 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

50mm, F2.8, 1.1", C-mount, Macro lens (95.4 mm (-0.8X) to 132.4 mm (-0.5X)). Sharp macro imaging with high image uniformity Ultra-low distortion and high relative illumination

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1457

Optics

Focal length	50 mm
F-number	F2.8 ~ F16
Image size	Φ17.6 mm(1.1”)
TV distortion	0.05%
Magnification range	0.8x ~ 0.65x ~ 0.5x
Working distance range	95 ~ 109 ~ 132 mm
Iris control	Manual
Focus control	Manual
Filter thread	M27 × P0.5

Interfaces and I/O

Connector type	C-Mount

Environment and compliance

Temperature	-10 ~ 50°C
Certification	RoHS2.0

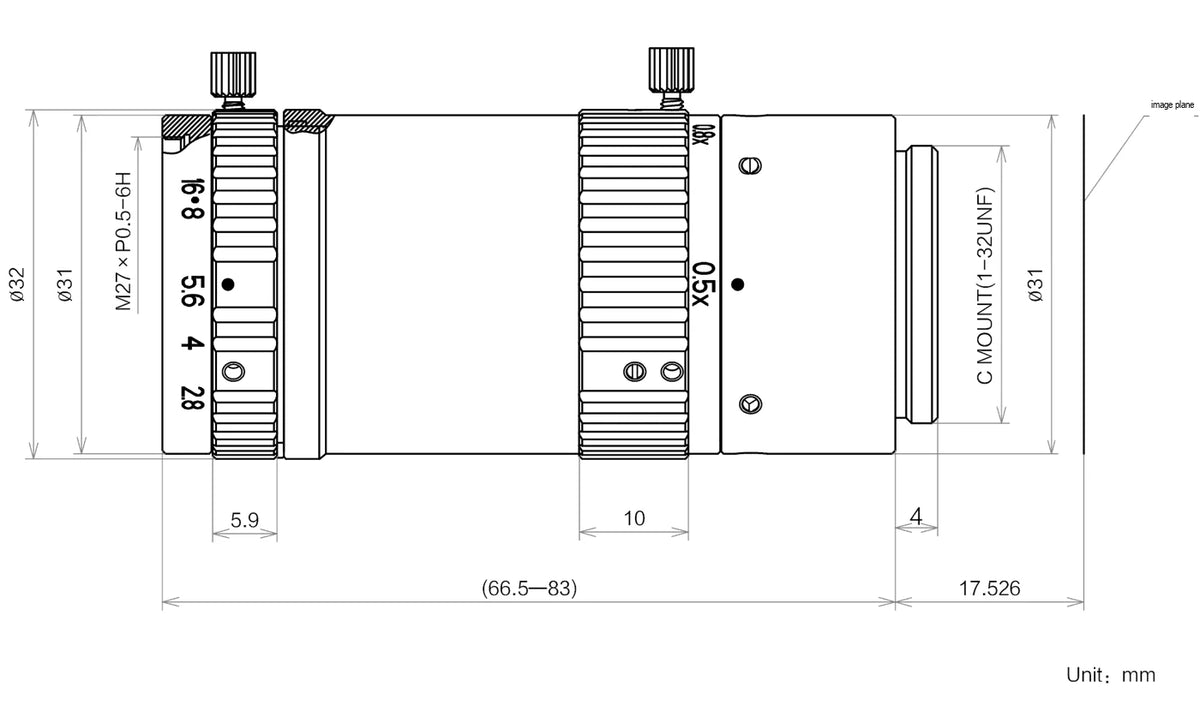

Mechanical

Flange back length	17.526 mm
Dimension	Φ32 × 66.5~83 mm
Weight	113.8 g
Shipping weight (estimated)	0.26 kg

Other models in the Macro Lens Series (LS-FFL-S132) series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-FFL-1455	25 mm · 0.4x ~ 0.25x ~ 0.1x	$319.00	Ships in 2-3 weeks	View
LS-FFL-1454	16 mm · 0.25x ~ 0.1x ~ 0.03x	$319.00	Ships in 2-3 weeks	View
LS-FFL-1456	35 mm · 0.7x ~ 0.5x ~ 0.25x	$339.00	Ships in 2-3 weeks	View
LS-FFL-1459	75 mm · 0.46x ~ 0.24x ~ 0.16x	$389.00	Ships in 2-3 weeks	View
LS-FFL-1458	75 mm · 0.38x ~ 0.25x ~ 0.18x	$389.00	Ships in 2-3 weeks	View
