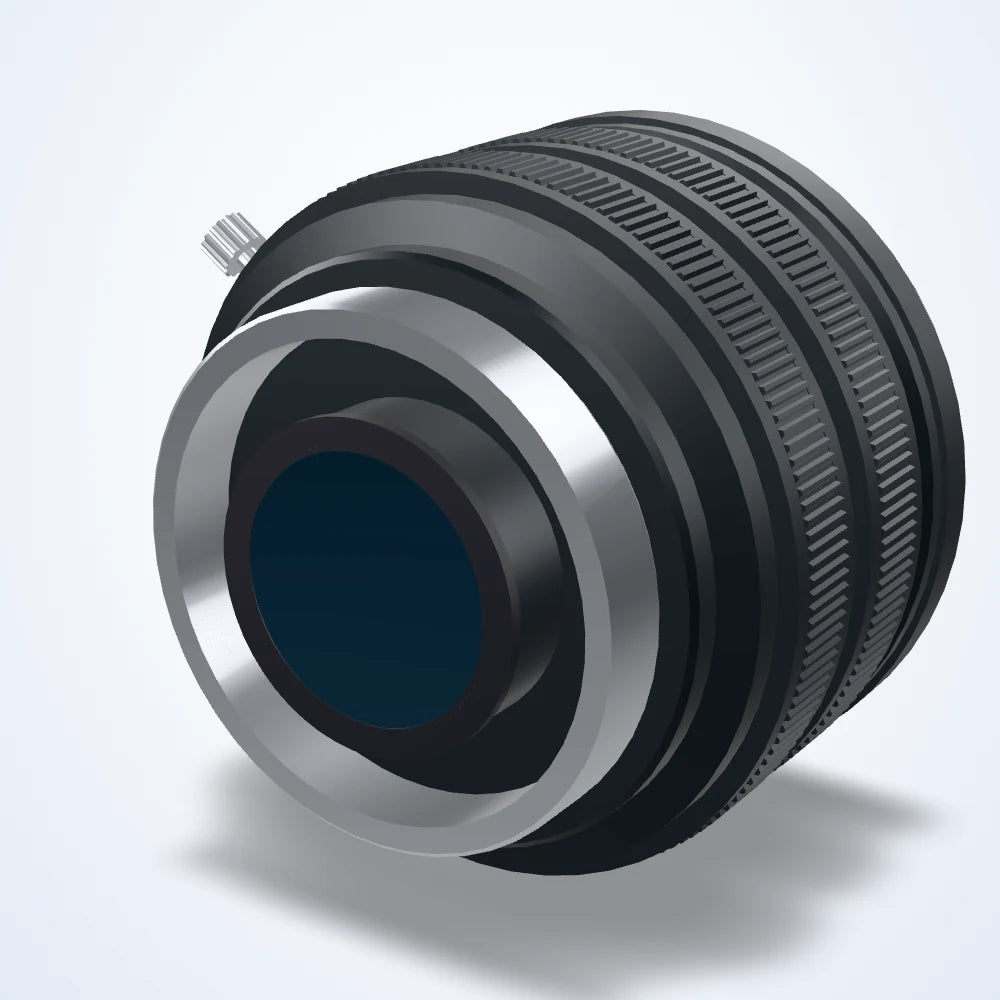

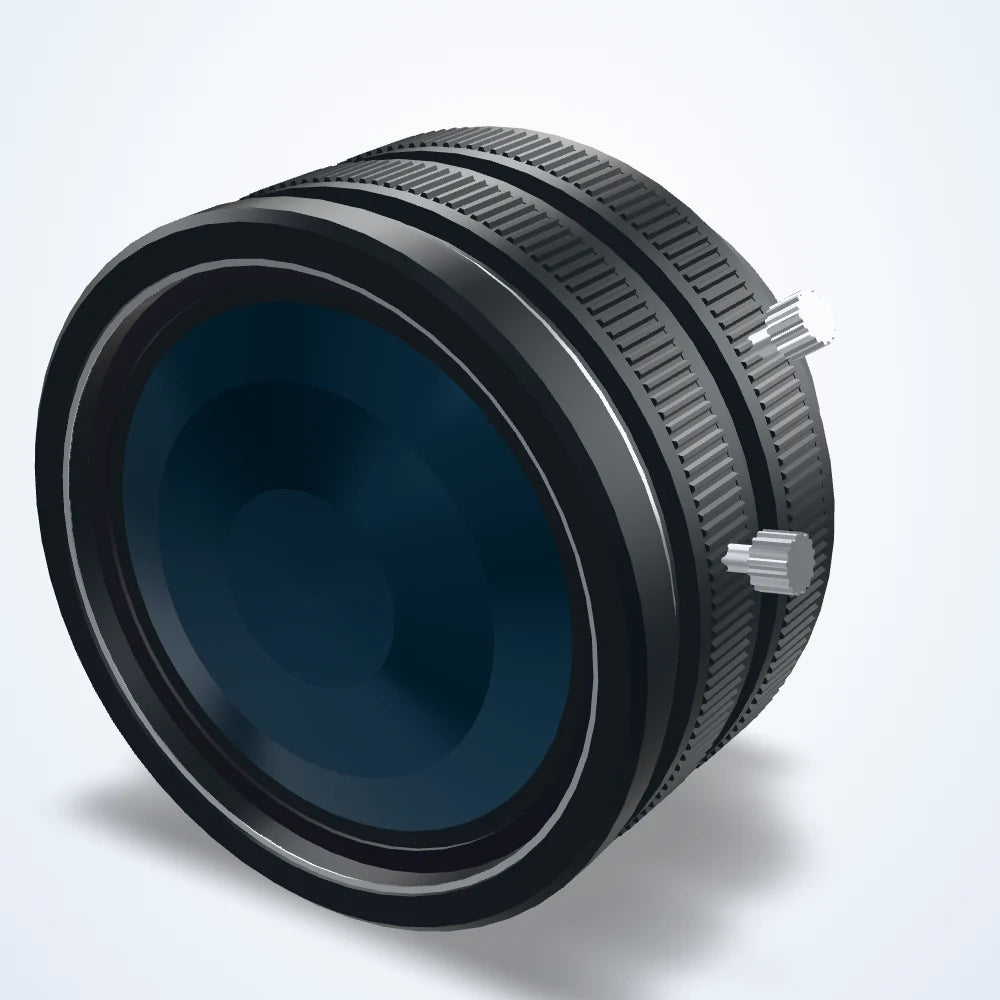

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm IR-corrected lens, 18 MP, F2.8, M42 (LS-FFL-1369)
Model LS-FFL-1369
- Focal length50 mm
- MountM42
- SensorAPS-C
- ApertureF2.8
- Resolution18MP
- Field of view31.74° x 26.6° x 17.86°
$785.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50 mm IR-corrected lens for machine-vision cameras. Focal length 50 mm; resolves 18 MP; aperture F2.8; corrected for 400-900 nm; M42 mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1369 |
|---|---|
| Min. object distance | 0.3 m |
| IR Corrected | Yes |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture | F2.8 |
| Filter thread | M40.5X0.5 |
| Field of view | 31.74° x 26.6° x 17.86° |
| Distortion | <-0.3% |
| Focus | Manual |
Sensor and imaging
| Sensor format | 30 mm |
|---|---|
| Resolution | 18MP |
Light
| Wavelength range | 400-900 nm |
|---|
Environment and compliance
| Operating temperature | -20° C~+65° C |
|---|
Mechanical
| Mount | M42 |
|---|---|
| Flange back length | 40.76 mm |

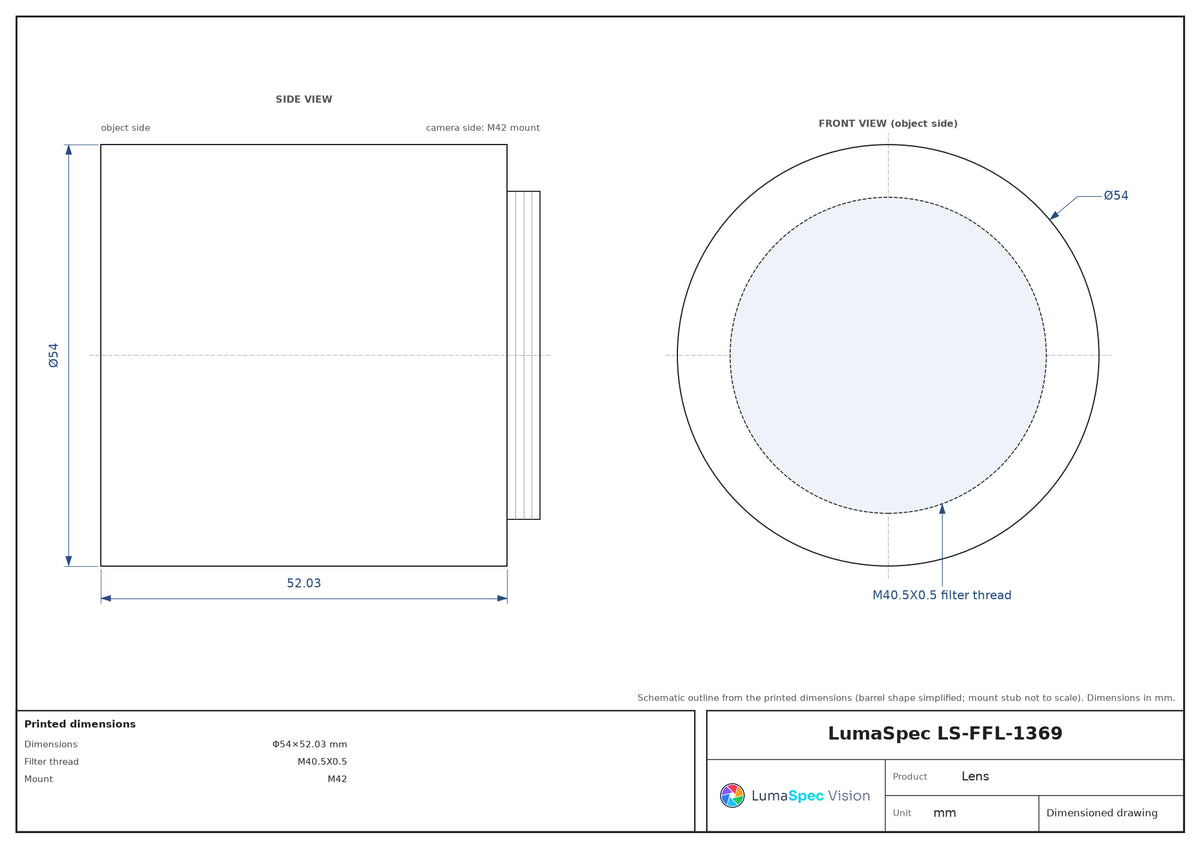

| Dimensions | Φ54×52.03 mm |
| Shipping weight | 1.00 kg |
