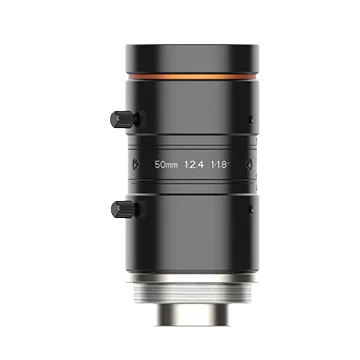

50mm, F2.4, 1/1.8", 10MP Lens, C-Mount (LS-FFL-1368)
  • 50mm, F2.4, 1/1.8", 10MP Lens, C-Mount (LS-FFL-1368)

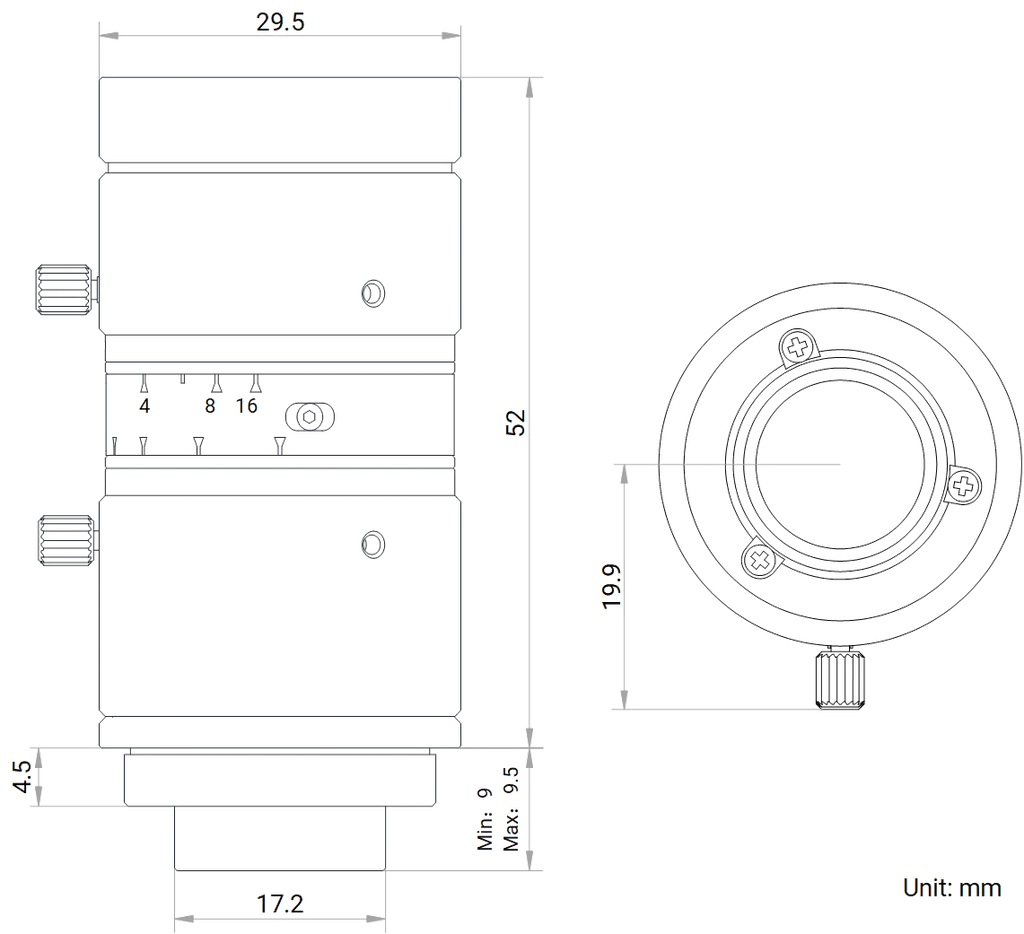

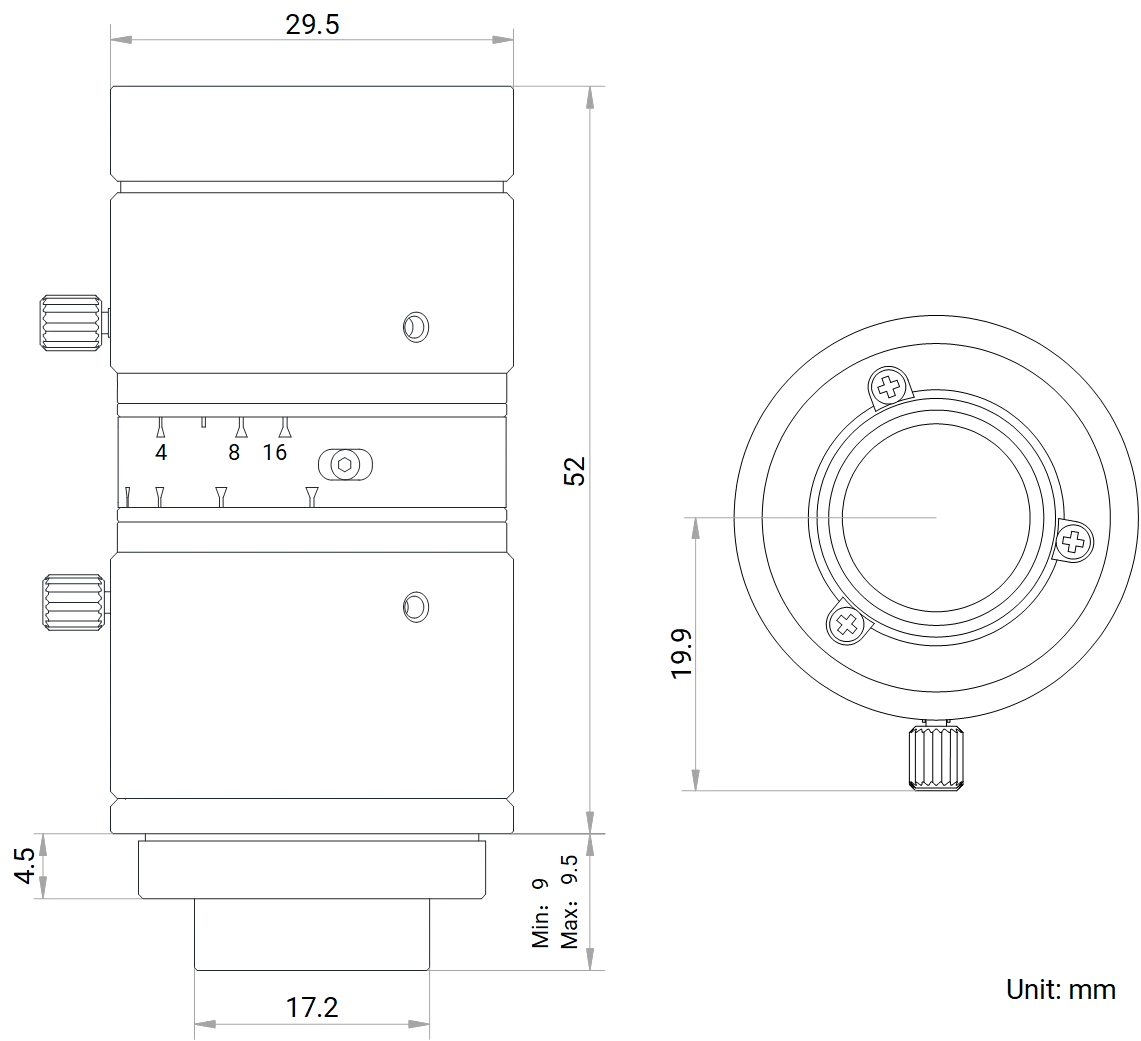

  • LS-FFL-1368 dimensions (mm)

Machine vision lenses

50mm, F2.4, 1/1.8", 10MP Lens, C-Mount (LS-FFL-1368)

Model LS-FFL-1368

  • Focal length50 mm
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF2.4 to F16
$89.00

Ships in 2-3 weeks

0.22 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

50mm, F2.4, 1/1.8", 10MP Lens, C-Mount (LS-FFL-1368)LS-FFL-1368

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

50mm, F2.4, 1/1.8", 10MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Bigger aperture, lower distortion and higher relative illumination rate

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1368
Minimum object distance0.3 m
Close-up with extension tube10 mm tube, near focus: WD 169.4 mm, magnification -0.400; 10 mm tube, far focus: WD 309 mm, magnification -0.193; 5 mm tube, near focus: WD 211.8 mm, magnification -0.296; 5 mm tube, far focus: WD 578 mm, magnification -0.097; 2 mm tube, near focus: WD 255.4 mm, magnification -0.234; 2 mm tube, far focus: WD 1383 mm, magnification -0.039; 1 mm tube, near focus: WD 275.6 mm, magnification -0.213; 1 mm tube, far focus: WD 2720 mm, magnification -0.019

Optics

Focal length50 mm
F-numberF2.4 to F16
Image sizeØ9 mm (1/1.8")
Distortion0.03%
Field of viewD (8.96 mm): 9.10°; H (7.38 mm): 7.48°; V (4.92 mm): 5.00°
Iris controlManual
Focus controlManual
Filter threadM27 × 0.5
Magnification at working distance (mm)300: -0.193; 350: -0.162; 400: -0.139; 450: -0.123; 500: -0.110; 550: -0.099; 600: -0.090; 650: -0.083; 700: -0.077; 800: -0.067; 900: -0.059; 1000: -0.053
Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm)300: 38.32 x 25.56; 350: 45.64 x 30.44; 400: 52.90 x 35.28; 450: 60.11 x 40.09; 500: 67.30 x 44.88; 550: 74.46 x 49.65; 600: 81.61 x 54.42; 650: 88.74 x 59.18; 700: 95.87 x 63.93; 800: 110.09 x 73.42; 900: 124.30 x 82.89; 1000: 138.47 x 92.34
Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm)300: 32.30 x 24.26; 350: 38.47 x 28.89; 400: 44.59 x 33.49; 450: 50.67 x 38.05; 500: 56.73 x 42.60; 550: 62.76 x 47.13; 600: 68.79 x 51.66; 650: 74.80 x 56.17; 700: 80.81 x 60.68; 800: 92.80 x 69.69; 900: 104.77 x 78.68; 1000: 116.72 x 87.65

Environment and compliance

Temperature–10°C to 50°C (14 °F to 122 °F)
CertificationRoHS 2.0

Mechanical

MountC-mount
Flange back length17.526 mm
DimensionØ29.5 mm × 52 mm (Ø1.2" x 2.0")
Weight85.9 g (0.2 lb.)
Shipping weight (estimated)0.22 kg
