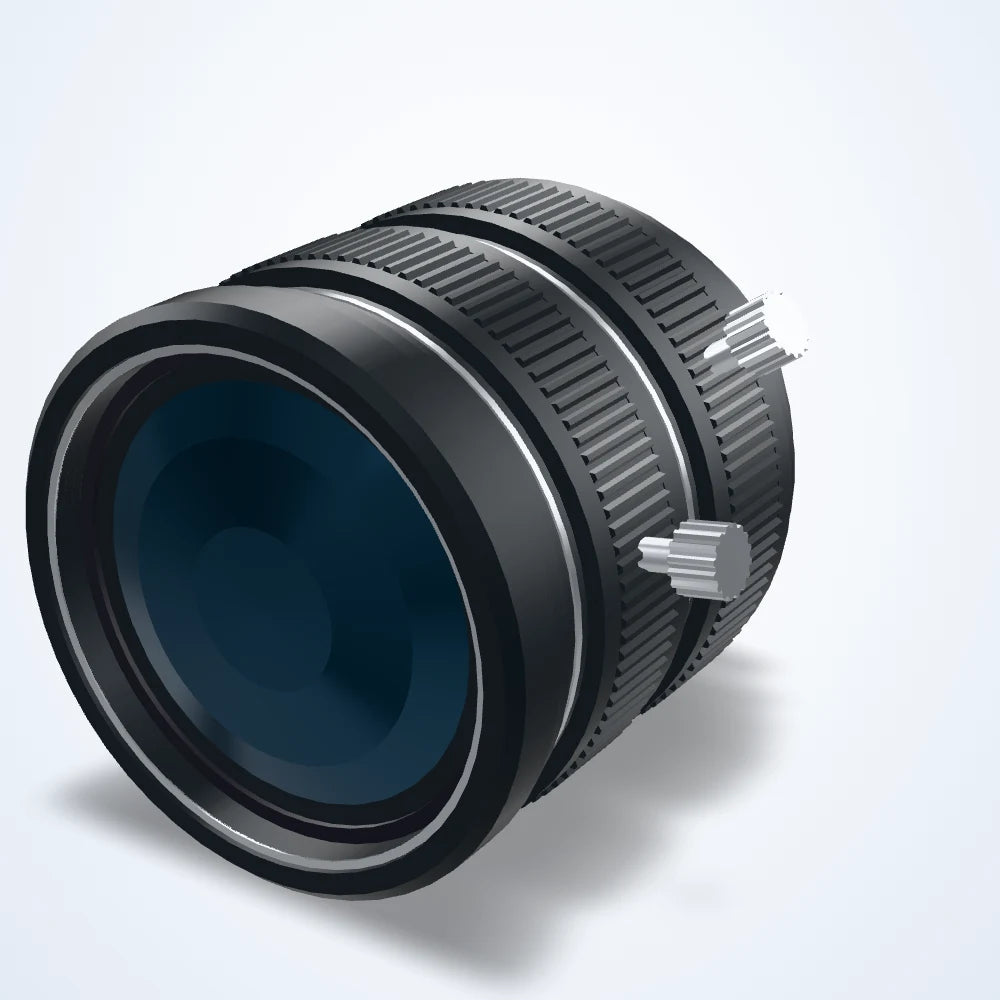

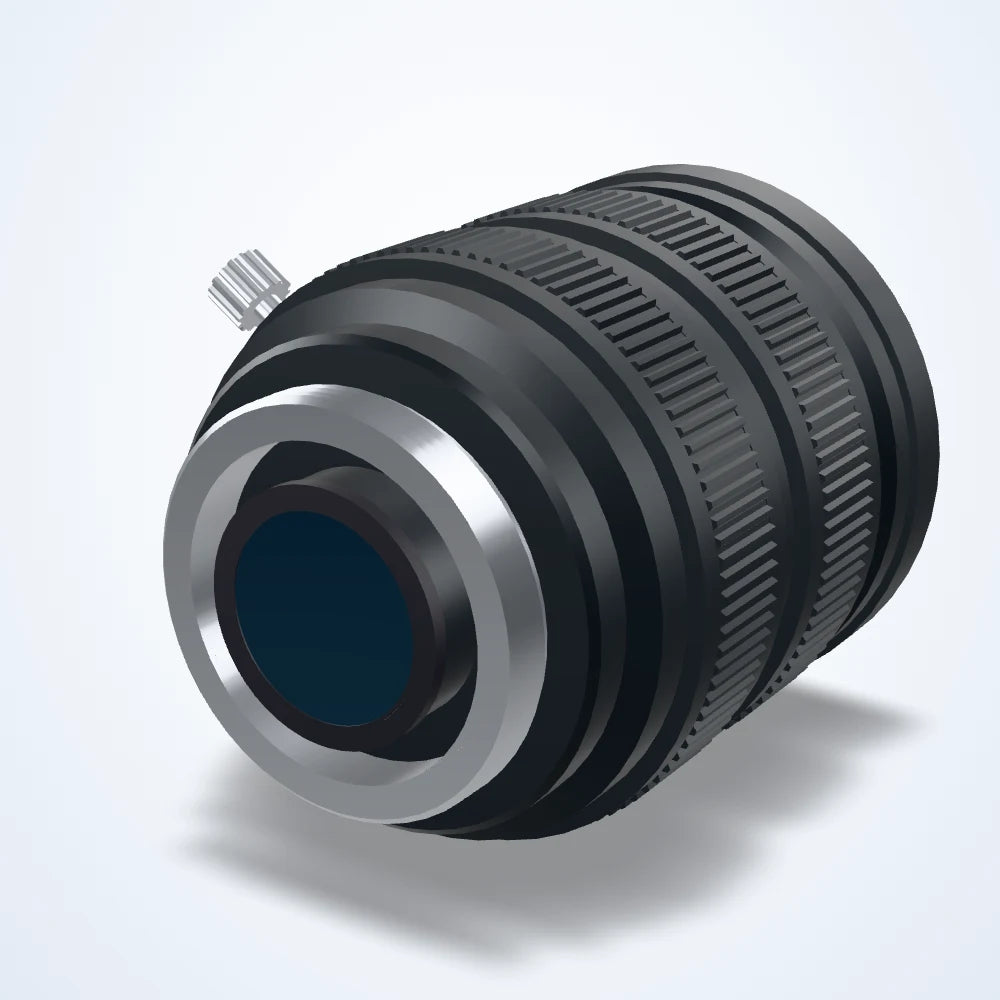

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
100 mm fixed focal length lens, 2/3", 8 MP, F2.8, C-mount (LS-FFL-1339)
Model LS-FFL-1339
- Focal length100 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.8
- Resolution8 MP
- Field of view5.6°× 7.5°
$350.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
100 mm fixed focal length lens for machine-vision cameras. Focal length 100 mm; covers sensors up to 2/3"; resolves 8 MP; aperture F2.8; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1339 |
|---|---|
| Min. object distance | >2.0 m |
| Angle of view | D:5.6° H:7.5° |
| Front/Rear Effective Dia. | Front: Φ19; Rear: Φ 14.2 mm |
Optics
| Focal length | 100 mm |
|---|---|
| Aperture | F2.8 |
| Field of view | 5.6°× 7.5° |
| Back focal length | 12.7 mm |
| Distortion | 0.1% |
| Focus | Manual |
| Filter thread | M37.5× 0.5 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution | 8 MP |
Light
| Wavelength range | 400-1100 nm |
|---|
Environment and compliance
| Operating temperature | -10- 50°C(Working), -20- 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Length | 83.386 mm |
| Dimensions | Φ39x65.86 mm |
| Shipping weight | 1.00 kg |
