Machine vision lenses
35 mm fixed focal length lens, 1.2", 25 MP, F2.4, C-mount (LS-FFL-1310)
Model LS-FFL-1310
- Focal length35 mm
- MountC-mount
- Sensor1.2"
- ApertureF2.4
- Field of view29.33° ×22.51° ×19.53°
$316.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm fixed focal length lens for machine-vision cameras. Focal length 35 mm; covers sensors up to 1.2"; resolves 25 MP; aperture F2.4; corrected for 380-780 nm; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1310 |
|---|---|
| Angle of view | 29.33°×22.51°×19.53° |
| Min. object distance | 0.15m |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture | F2.4 |
| Field of view | 29.33° ×22.51° ×19.53° |
| Distortion | 0.0002 |
| Focus | Manual |
| Filter thread | M40.5*0.5 |
Sensor and imaging
| Resolution | 25 Megapixels – Ultra-high detail reproduction |
|---|---|
| Sensor format | ≤1.2" Area Scan Cameras |
Light
| Wavelength range | 380-780 nm |
|---|
Environment and compliance
| Operating temperature | -10~+50° C |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

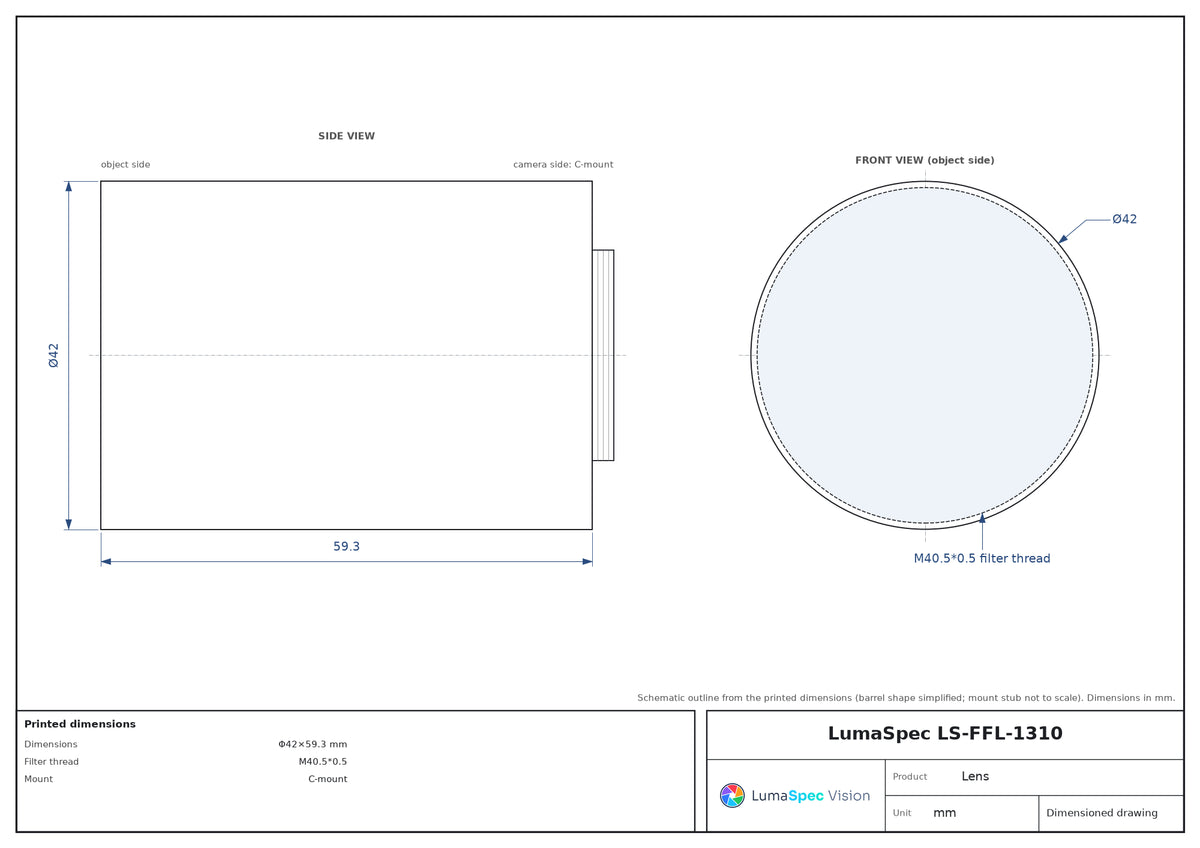

| Dimensions | Φ42×59.3 mm |
| Weight | 174 g |
Other models in the 1.2" fixed focal length lenses (LS-FFL-S110) series
See all 11 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1305 | 16 mm, 1.2" | $200.00 | Ships in 3-4 weeks | View |
| LS-FFL-1307 | 25 mm, 1.2" | $200.00 | Ships in 3-4 weeks | View |
| LS-FFL-1309 | 35 mm, 1.2" | $200.00 | Ships in 3-4 weeks | View |
| LS-FFL-1311 | 50 mm, 1.2" | $200.00 | Ships in 3-4 weeks | View |
| LS-FFL-1303 | 12 mm, 1.2" | $215.00 | Ships in 3-4 weeks | View |
| LS-FFL-1304 | 12 mm, 1.2", C-mount | $316.00 | Ships in 3-4 weeks | View |
| LS-FFL-1306 | 16 mm, 1.2", C-mount | $316.00 | Ships in 3-4 weeks | View |
| LS-FFL-1308 | 25 mm, 1.2", C-mount | $316.00 | Ships in 3-4 weeks | View |
| LS-FFL-1312 | 50 mm, 1.2", C-mount | $316.00 | Ships in 3-4 weeks | View |
| LS-FFL-1302 | 8 mm, 1.2", C-mount | $360.00 | Ships in 3-4 weeks | View |
