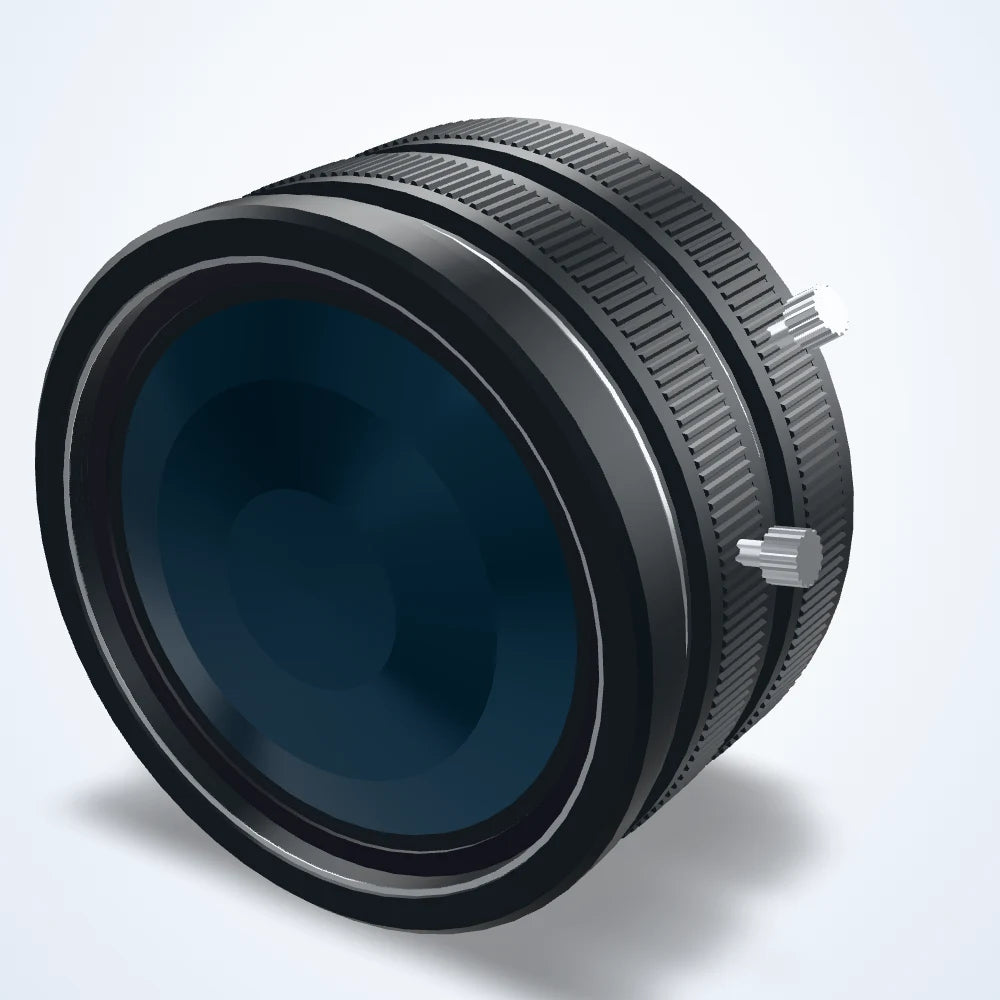

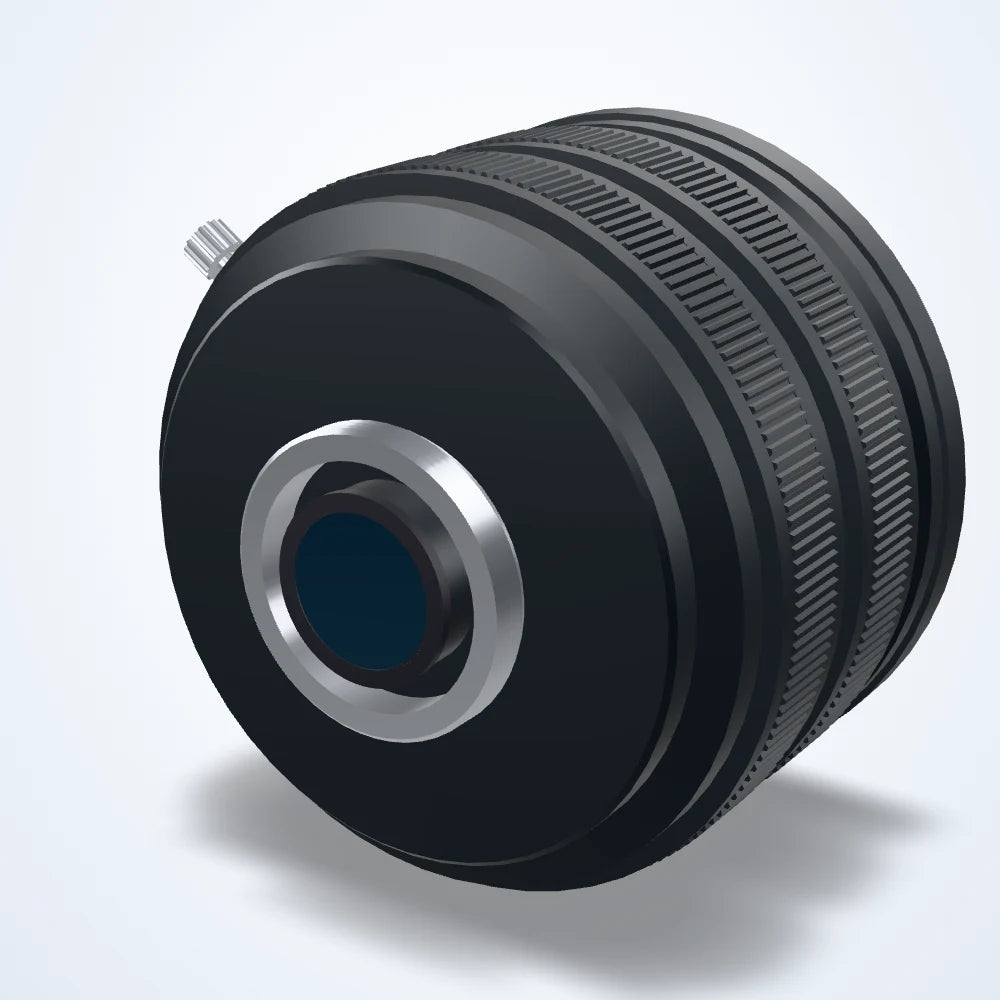

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm fixed focal length lens, 1/1.8", 5 MP, F2.0, C-mount (LS-FFL-1287)
Model LS-FFL-1287
- Focal length8.0 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.0
- Resolution5 MP
$80.00
Ships in 3-4 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8 mm fixed focal length lens for machine-vision cameras. Focal length 8 mm; covers sensors up to 1/1.8"; resolves 5 MP; aperture F2.0; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1287 |
|---|---|
| Min. object distance | 0.1 |
| Angle of view | D:56.0° H:46.8° V:36.0° |
| Front/Rear Effective Dia. | Front Φ 20.1 mm / Rear Φ 6 mm |
Optics
| Focal length | 8.0 mm |
|---|---|
| Aperture | F2.0 |
| Back focal length | 11.4 mm |
| Distortion | <0.1% |
| Focus | Manual |
| Filter thread | M25.5× 0.5 |
Sensor and imaging
| Sensor format | 1/1.8" |
|---|---|
| Resolution | 5 MP |
Light
| Wavelength range | 400-950 nm |
|---|
Environment and compliance
| Operating temperature | -10 - 50°C(Working), -20 - 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Length | 42.526 mm |
| Dimensions | Φ26.8 × 25 mm |
| Shipping weight | 0.50 kg |
