1/1.7", C-mount Machine Vision Lens, 0.126x, WD 875 mm (LS-FFL-0827)
Model LS-FFL-0827
- Magnification0.126x
- MountC-mount
- Sensor1/1.7"
- Working distance875 mm
- Aperture5
$189.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1/1.7", C-mount Machine Vision Lens. At a glance: magnification 0.126x; working distance 875 mm; max sensor size 9.4 mm (1/1.7"); object-side resolution 26.7 µm; image-side f/# 5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0827 |
|---|
Optics
| Magnification (x) | 0.126 |
|---|---|
| Working distance (mm) | 875 |
| Image-side F/# | 5 |
| Object-side telecentricity (deg max) | Non-telecentric |
| Image-side distortion (% max) | 0.1 |
| Numerical aperture NA | 0.01257 |
| Object-side resolution (um) | 26.7 |
| Theoretical depth of field (mm) | 25.2 |
| Image-side MTF30 (lp/mm) | 172 |
| Total length TTL (mm) | 104.7 |
| Front filter thread | M32x0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 9.4(1/1.7") |
|---|

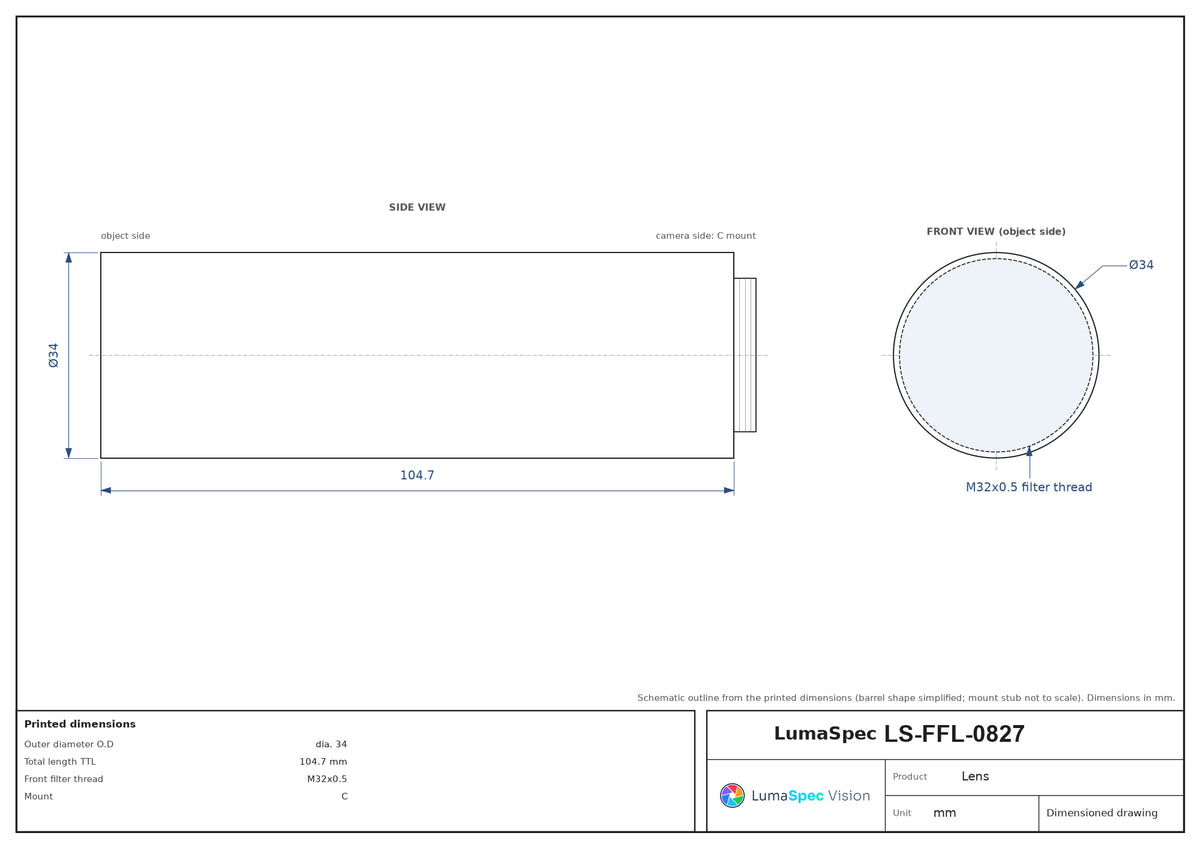

Mechanical
| Outer diameter O.D (mm) | dia. 34 |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.31 kg |
Photo shows a representative model of this series; see the specifications for this model.
